Quick Details
-
Model:
-
KG-96-BAN
-
Capping/decapping motor speed:
-
40R/min
-
Positioning sensor:
-
high-precision resistive sensor
-
Display accuracy:
-
0.025mm
-
Positioning error:
-
±0.05mm positioning adjustment
-
Overall dimension:
-
200mm*330mm*380mm
-
Power supply voltage:
-
AC220V, 50Hz
-
Relative humidity:
-
< 85% H
Quick Details
-
Brand Name:
-
NADE
-
Model Number:
-
KG-96-BAN
-
Place of Origin:
-
China
-
Model:
-
KG-96-BAN
-
Capping/decapping motor speed:
-
40R/min
-
Positioning sensor:
-
high-precision resistive sensor
-
Display accuracy:
-
0.025mm
-
Positioning error:
-
±0.05mm positioning adjustment
-
Overall dimension:
-
200mm*330mm*380mm
-
Power supply voltage:
-
AC220V, 50Hz
-
Relative humidity:
-
< 85% H
Feature

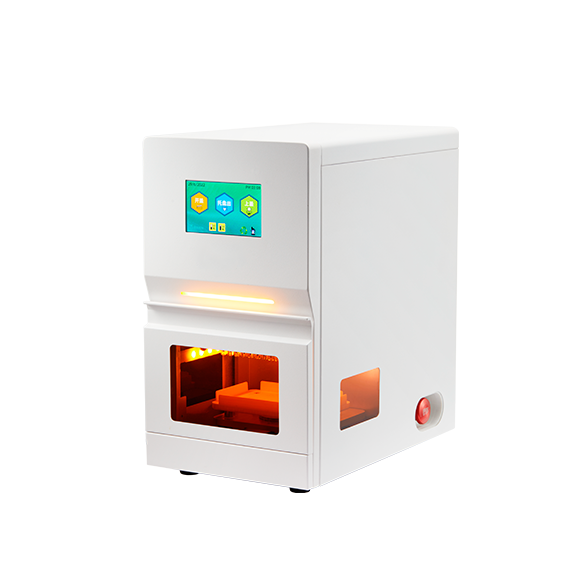

* Cap/Decap the whole box of cryopreservation tubes efficiently and quickly. The whole process (including the loading process) takes only 30 seconds (more than 2 minutes for semi-automatic handheld devices), which is convenient for liquid transfer of the whole box of biological samples and reduces the sample temperature rise and air exposure time caused by opening and closing the cap.
* Ensure that any single tube cap can be completely locked (closed) or left from the tube body (opened).
* Automatically detect the state of tube cap to avoid misoperation and capping / decapping action.
* It is applicable to the whole series of cryopreservation tube boxed products, and can be customized according to the needs of users to adapt to the cryopreservation tubes of other brand.
* The standard RS232 communication interface can be integrated into the automatic line as a workstation for remote automatic/manual control.
* Ergonomic design, simple operation, high ease of use, one key switch, the whole box of frozen storage tube.
* A variety of lighting design is convenient to monitor the working state of the equipment and the state of the cryopreservation tube.
* Perfect substitute for other similar products, high cost performance.
* Ensure that any single tube cap can be completely locked (closed) or left from the tube body (opened).
* Automatically detect the state of tube cap to avoid misoperation and capping / decapping action.
* It is applicable to the whole series of cryopreservation tube boxed products, and can be customized according to the needs of users to adapt to the cryopreservation tubes of other brand.
* The standard RS232 communication interface can be integrated into the automatic line as a workstation for remote automatic/manual control.
* Ergonomic design, simple operation, high ease of use, one key switch, the whole box of frozen storage tube.
* A variety of lighting design is convenient to monitor the working state of the equipment and the state of the cryopreservation tube.
* Perfect substitute for other similar products, high cost performance.
Parameters
|
Model
|
KG-96-BAN
|
|
Power of the whole machine
|
250W
|
|
Power of the cover opening
execution system |
150W
|
|
Power of the lifting system
|
40W
|
|
Capping/decapping motor speed
|
40R / min
|
|
Positioning sensor
|
high-precision resistive sensor
|
|
Display accuracy
|
0.025mm
|
|
Positioning error
|
± 0.05mm positioning adjustment
|
|
Emergency stop switch
|
Equipped, can stop in case of emergency
|
|
RS232 communication interface
|
Equipped, can communicate with third-party control equipment to realize joint control.
|
|
Overall dimension
|
200mm*330mm*380mm
|
|
Power supply voltage
|
AC220V, 50Hz
|
|
Ambient temperature
|
room temperature
|
|
Relative humidity
|
< 85% H
|
Specification
|
Cat.No.
|
Name
|
Spec
|
|
KG-96-BAN
|
Automatic Capper/Decapper
(96-well) |
Desktop batch automatic equipment,
can open or cover the 96-well cryopreservation tube cap simultaneously |
|
KG-48-BAN
|
Automatic Capper/Decapper
(48-well) |
Desktop batch automatic equipment,
can open or cover the 48-well cryopreservation tube cap simultaneously |
|
KG-24-BAN
|
Automatic Capper/Decapper
(24-well) |
Desktop batch automatic equipment,
can open or cover the 24-well cryopreservation tube cap simultaneously |
