Quick Details
-
Type:
-
PLC / FBT
-
Wavelength:
-
1260-1650nm
-
Quality:
-
high quality fiber optic splitter
-
Return Loss:
-
55/50db
-
Operating temperature:
-
-40℃ ~ 85 ℃
-
Parameters:
-
1*N /2*N
-
Fiber size:
-
0.9, 2.0, 3.0mm
-
Directivity:
-
≥ 55db
-
Splitter type:
-
1X2 1X4 1X8 1X16 1X32 1X64 1X128
-
Application:
-
FTTH, FTTB, FTTO, FTTx
Quick Details
-
Model Number:
-
plc splitter
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Foclink
-
Type:
-
PLC / FBT
-
Wavelength:
-
1260-1650nm
-
Quality:
-
high quality fiber optic splitter
-
Return Loss:
-
55/50db
-
Operating temperature:
-
-40℃ ~ 85 ℃
-
Parameters:
-
1*N /2*N
-
Fiber size:
-
0.9, 2.0, 3.0mm
-
Directivity:
-
≥ 55db
-
Splitter type:
-
1X2 1X4 1X8 1X16 1X32 1X64 1X128
-
Application:
-
FTTH, FTTB, FTTO, FTTx

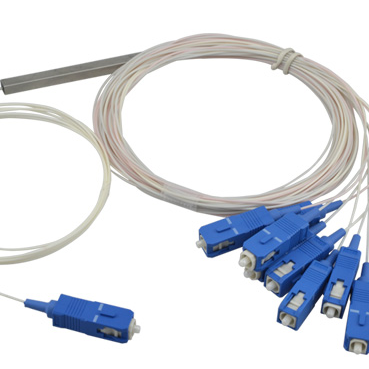

SC/UPC xPON Network 1x16 Steel Tube PON PLC Splitter
Planar lightwave circuit (PLC) splitter is fabricated using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in FTTX PON to realize optical signal power management.
Key Features:
1) Low Insertion loss
2) Low PDL
3) Compact Design
4) Good channel-to-channel uniformity
5) Wide Operating Wavelength: 1260-1650nm
6) Wide Operating Temperature: -40°C - 85°C
7) High Reliability and Stability
Application :
1) FTTX Systems
2) PON Networks
3) CATV Links
4) Optical Signal Distribution
5) Local Areal Networks (LAN)
6) Fiber Communication Systems
Product Specification:
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
| Operating Wavelength (nm) | 1260 ~ 1650 | |||||
| Fiber Type | SMF-28e or customer specified | |||||
| Insertion Loss (dB) ( S/P Grade ) | 4.0/3.8 | 7.3/7.0 | 10.5/10.2 | 13.7/13.5 | 16.9/16.5 | 21.0/20.5 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
| Return Loss (dB) ( S/P Grade ) | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 | 50/55 |
| Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
| Temperature Stability(-40 ~ 85 °C)(dB) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Operating Temperature (°C) | -40 ~ 85 | |||||
| Storage Temperature (°C) | -40 ~ 85 | |||||
| Packaging Dimension (mm) (L×W×H) | 40×4×4 | 40×4×4 | 40×4×4 | 40×4×4 | 50×7×4 | 60×12×4 |
Notes:1.Specified without connectors.
2.
Add an additional 0.2dB loss per connector
Product Picture in detail:
Related Fiber Splitter:
The package will be packed according to standard export requirements, customer satisfication is our target.
Label printing : Customer logo or Foclink brand are available
Inner packing: individual package 1pcs in a blister box
Outer packing: the carton will be packed with sack, well protect carton from dust and wet.
1.What is your MOQ?
Foclink: Normally is 1pcs/item,could be coordinated if you have detail requirements.
2.How about your delivery date?
Foclink: Delivery date is about 3-5days, it depends on the order quantity.
3.Can you supply sample for customers?
Foclink: of course, however the delivery cost will be charged on customer's account
4.How about your price?
Foclink: We are supplying products with very competitive price based on good performance.
5.Do you offer OEM Service ?
Foclink: We accept OEM, ODM. The cable size and material are customized. Our own logo and own design are welcome. We will produce according to your requirment and description;
