Quick Details
-
Warranty:
-
25 years
-
Brand Name:
-
Morel
-
Model Number:
-
Morel-06
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1956*992*40mm
-
Product name:
-
330w solar panel price
-
Cell Type:
-
156.75mm*156.75mm
-
Number of Cells:
-
72 cells in series
-
Weight:
-
23 kg
-
Dimension:
-
1956*992*40mm
-
Max Load:
-
5400 Pascals
-
Junction Box:
-
≥ IP67 rated
-
Connector:
-
MC4 Compatible
-
Output cable:
-
PV 1-F 4mm 2
-
Certificate:
-
CE
Quick Details
-
Cell size:
-
156.75mmx156.75mm
-
Type:
-
Half Cell
-
Panel Efficiency:
-
18%
-
Warranty:
-
25 years
-
Brand Name:
-
Morel
-
Model Number:
-
Morel-06
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1956*992*40mm
-
Product name:
-
330w solar panel price
-
Cell Type:
-
156.75mm*156.75mm
-
Number of Cells:
-
72 cells in series
-
Weight:
-
23 kg
-
Dimension:
-
1956*992*40mm
-
Max Load:
-
5400 Pascals
-
Junction Box:
-
≥ IP67 rated
-
Connector:
-
MC4 Compatible
-
Output cable:
-
PV 1-F 4mm 2
-
Certificate:
-
CE
Monocrystaline Solar Panel 72 Cells 300W~360W
SY-M300W-72P SY-M310W-72P
SY-M320W-72P SY-M330W-72P
SY-M340W-72P SY-M350W-72P
SY-M355W-72P SY-M360W-72P
25-year performance warranty
10-year warranty on materials and workmanship
| ELECTRICAL SPECIFICATIONS (STC) | ||||
| Model Type | SY-M360W-72P | SY-M355W-72P | SY-M350W-72P | SY-M340W-72P |
| Peak Power (Pmax) | 360W | 355W | 350W | 340W |
| Module Efficiency | 18.55% | 18.30% | 18.04% | 17.52% |
| Maximum Power Voltage (Vmp) | 39.33V | 38.93V | 38.51V | 38.17V |
| Maximum Power Current (Imp) | 9.15A | 9.12A | 9.09A | 8.91A |
| Open Circuit Voltage (Voc) | 48.23V | 47.74V | 47.64V | 46.91V |
| Short Circuit Current (Isc) | 9.68A | 9.65A | 9.59A | 9.41A |
| Power Tolerance | 0 to +5W | |||
| Operating Temperature | - 40 ~ + 85℃ | |||
| Maximum System Voltage | DC 1000V | |||
| Nominal Operating Cell Temperature | 45±2℃ | |||
| Fire Safety | Class C | |||
| Maximum Series Fuse Rating | 20A | |||
| ELECTRICAL SPECIFICATIONS (NOCT) | ||||
| Peak Power (Pmax) | 262.64W | 259.0W | 255.9W | 248.2W |
| Maximum Power Voltage (Vmp) | 36.1V | 35.8V | 35.6V | 35.2V |
| Maximum Power Current (Imp) | 7.27A | 7.24A | 7.18A | 7.05A |
| Open Circuit Voltage (Voc) | 44.16V | 43.8V | 43.7V | 43V |
| Short Circuit Current (Isc) | 7.82A | 7.79A | 7.74A | 7.60A |
| ELECTRICAL SPECIFICATIONS (STC) | ||||
| Model Type | SY-M330W-72P | SY-M320W-72P | SY-M310W-72P | SY-M300W-72P |
| Peak Power (Pmax) | 330W | 320W | 310W | 300W |
| Module Efficiency | 17.00% | 16.49% | 15.98% | 15.46% |
| Maximum Power Voltage (Vmp) | 37.54V | 37.13V | 36.54V | 36.23V |
| Maximum Power Current (Imp) | 8.79A | 8.62A | 8.49A | 8.28A |
| Open Circuit Voltage (Voc) | 46.10V | 45.94V | 45.65V | 45.26V |
| Short Circuit Current (Isc) | 9.28A | 9.24A | 9.08A | 8.85A |
| Power Tolerance | 0 to +5W | |||
| Operating Temperature | - 40 ~ + 85℃ | |||
| Maximum System Voltage | DC 1000V | |||
| Nominal Operating Cell Temperature | 45±2℃ | |||
| Fire Safety | Class C | |||
| Maximum Series Fuse Rating | 20A | |||
| ELECTRICAL SPECIFICATIONS (NOCT) | ||||
| Peak Power (Pmax) | 244.6W | 237.3W | 229.7W | 222.29W |
| Maximum Power Voltage (Vmp | 35V | 34.1V | 33.7V | 33.2V |
| Maximum Power Current (Imp) | 6.99A | 6.97A | 6.82A | 6.69A |
| Open Circuit Voltage (Voc) | 42.9V | 42.5V | 42.3V | 41.6V |
| Short Circuit Current (Isc) | 7.53A | 7.45A | 7.32A | 7.18A |

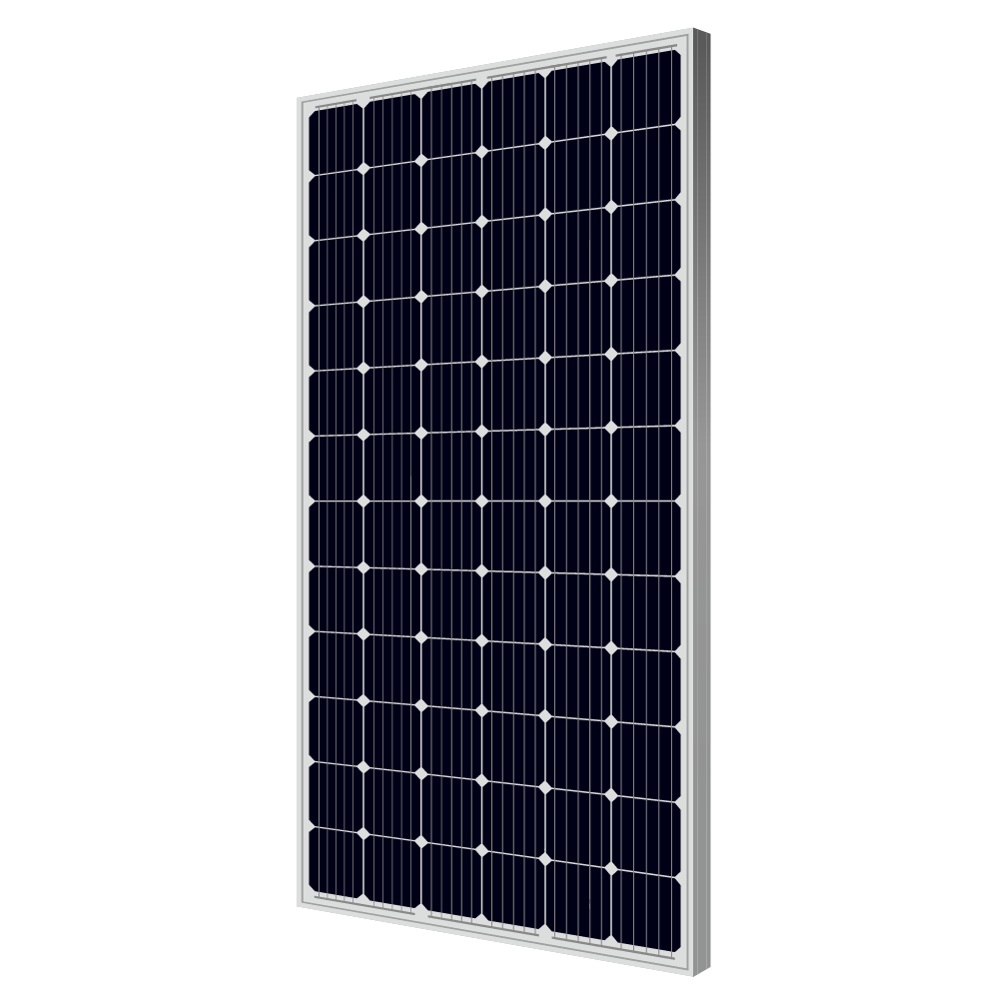

72 CELLS MONO SOLAR PANEL
Mono-crystalline modules designed for residential and utility applications, rooftop and ground mount.
Anti-reflective and self-cleaning surface reduces power loss from dirt and dust.
Excellent mechnical load resistance: certified to with stand high wind loads(2400Pa) and snow load(5400Pa)
| MECHANICAL SPECIFICATIONS | |
| Cell Type | 156.75mm x 156.75mm |
| Number of Cells | 72 cells in series |
| Weight | 22.5 kg (49.60 lbs) |
| Dimension | 1956×992×40mm (77.01×39.06×1.58 inch) |
| Max Load | 5400 Pascals ( 112 lb/ft 2 ) |
| Junction Box | ≥ IP67 rated |
| Connector | MC4 Compatible |
| Output cable | PV 1-F 4mm 2 |
| MECHANICAL SPECIFICATIONS | |
| Temp. Coeff. of Isc (TK Isc) | 0.05% /℃ |
| Temp. Coeff. of Voc (TK Voc) | -0.30% /℃ |
| Temp. Coeff. of Pmax (TK Pmax) | -0.42% /℃ |
| PACKING MANNER | |
| Container | 40' HQ |
| Pieces per Pallet | 26 |
| Pieces per Container | 572 |
