Quick Details
-
Power (kW):
-
2.2
-
Range of Spindle Speed(r.p.m):
-
4000 - 4200 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
FUSION
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
780*700*1350 mm
-
Weight (KG):
-
260 KG
-
Name:
-
powder grinding machine
-
Fineness:
-
10-200 mesh ( related to the raw material)
-
Hopper type:
-
Horizontal or vertical type
-
Cooling system:
-
Cooling water pipe
Quick Details
-
Output (kg/h):
-
30 - 1000 kg/h
-
Feeding Size (mm):
-
5 - 20 mm
-
Output Size (mesh):
-
10 - 200 mesh
-
Power (kW):
-
2.2
-
Range of Spindle Speed(r.p.m):
-
4000 - 4200 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
FUSION
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
780*700*1350 mm
-
Weight (KG):
-
260 KG
-
Name:
-
powder grinding machine
-
Fineness:
-
10-200 mesh ( related to the raw material)
-
Hopper type:
-
Horizontal or vertical type
-
Cooling system:
-
Cooling water pipe

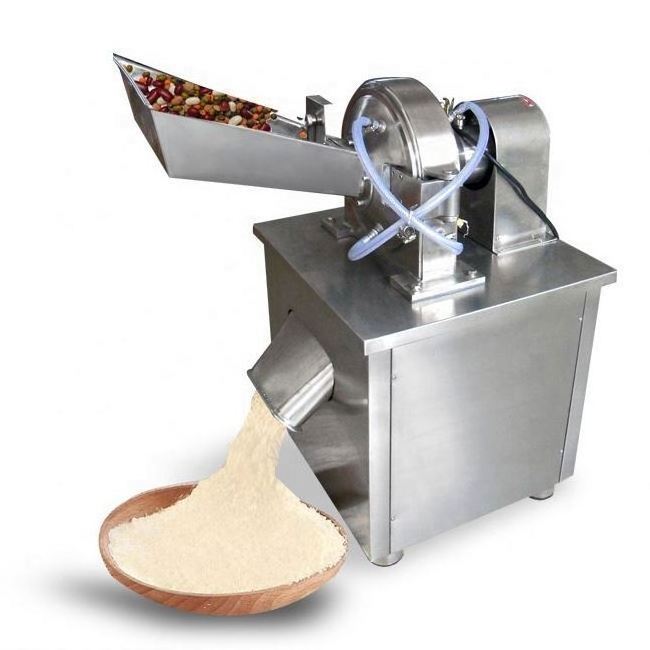

Super fine ginger turmeric powder grinder/turmeric flour milling machine/spice powder pulverizer
Introduction of Dry Spice Grinder
Universal grinder is mainly used to crush different dry material in to powder,fineness from 10-200mesh.You can choose to use common Universal grinder or Universal grinder with dust collector,or watercooling type Universal grinder according to your materials, Can add water coling, dust removal, water cooling + dust removal according to customer needs.
|
Model |
FX-180 |
FX-250 |
FX-320 |
FX-350 |
FX-400 |
|
Material |
Stainless steel |
||||
|
Capacity |
30-120kg/h
|
60-200 kg/h | 80-300kg/h | 100-500kg/h | 500-1000kg/h |
|
Voltage |
220/380v |
380v |
380 |
380 |
380 |
|
Power |
2.2kw |
5.5kw |
7.5kw |
11kw |
15kw |
|
Rotating Speed |
4200r/min |
4200r/min
|
4200r/min
|
4200r/min
|
4200r/min
|
|
Fineness |
10-200mesh
|
10-200mesh
|
10-200mesh
|
10-200mesh
|
10-200mesh
|
|
Size |
480*520*1040 mm
|
750*600*1260 mm
|
780*700*1350 mm
|
800*900*1550 mm
|
1450*1300*2000 mm
|
|
Weight |
75kg |
180kg
|
260kg
|
320kg
|
600kg
|
1. Packing: PP film wrapped around the machine and carefully packed in wooden case to focus on protecting damageable parts.
2. Shipping: From port of Shenzhen, Shanghai, Qingdao, Guangzhou,etc. We also accept land, air, sea transport and international multimodal transport.
3. Clearance: Our long history makes us the one of the first and most knowledgeable providers of the equipment, our main customers hail from; Canada, the United States, Brazil, Argentina, Japan, Philippines, Australia, Russia, Thailand, the UAE, Poland, Spain, Germany, India, etc.
If you want to get more information, pls contact with us feel free.
