Quick Details
-
Min. Lifting Height:
-
1100 mm
-
Table Size:
-
11150*2100mm
-
Overall Dimensions:
-
11150*2100*1100mm
-
Weight:
-
2600 kg
-
Type:
-
dock leveler
-
Color:
-
Customized Color
-
Usage:
-
mainly used for forklift, container bridge
-
Material:
-
High Strength Steel
-
Capacity:
-
6-15T
-
Power:
-
Optional
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Kenancranes
-
Min. Lifting Height:
-
1100 mm
-
Table Size:
-
11150*2100mm
-
Overall Dimensions:
-
11150*2100*1100mm
-
Weight:
-
2600 kg
-
Type:
-
dock leveler
-
Color:
-
Customized Color
-
Usage:
-
mainly used for forklift, container bridge
-
Material:
-
High Strength Steel
-
Capacity:
-
6-15T
-
Power:
-
Optional
Product Description

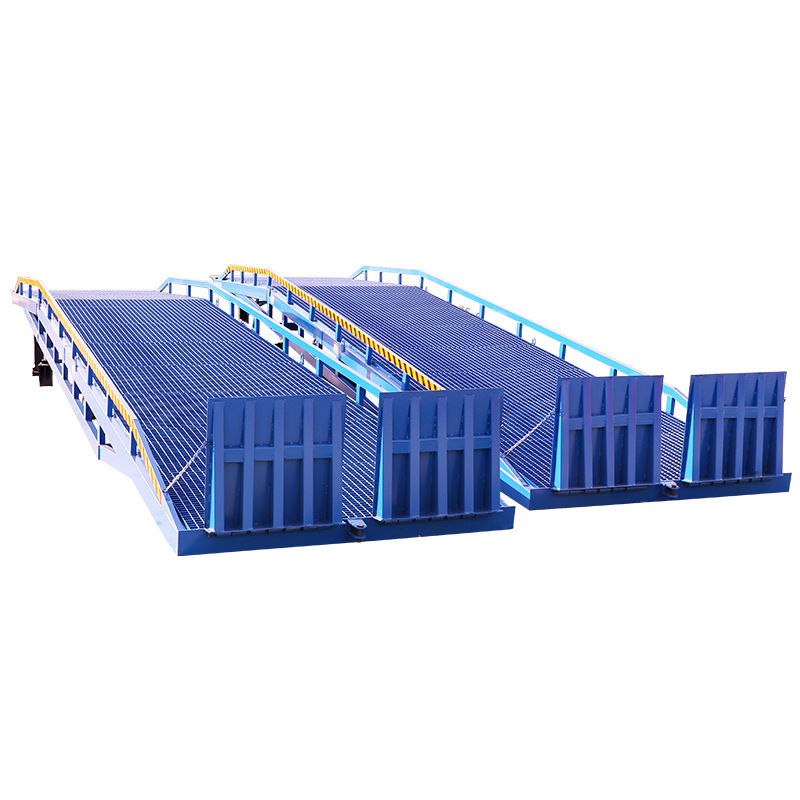

Dock leveler ramp
is a special auxiliary equipment to achieve rapid loading and unloading of goods, its height adjustment function makes a bridge between the truck and the warehouse platform, forklift trucks and other handling vehicles through it can directly into the inside of the truck for batch loading and unloading of goods, only a single operation, can be realized.
Product Advantages
1. Climbing and maneuverability
The mesa adopts special diamond mesh plate with reliable strength and can be used for a long time without deformation. Its corrugated steel lattice structure, excellent anti-skid performance, so that the forklift has better climbing and maneuverability.
Even in the rain, snow weather, can still be used normally.
2. Adjustable length
The adjustable length cable chain can easily hook the truck, so that the boarding bridge and the truck closely fit.
3. Folding guide plate
Easy to use and save space.
4. Easy to use
Powered by hand hydraulic pump, THE height of the boarding bridge can be easily adjusted without external power supply.
Product Parameters
|
Model
|
Capacity (t)
|
Adjustable Range (m)
|
Overall Dimension (mm)
|
Main beam
|
Lip plate
|
Net weight (kg)
|
|
DCQY-6
|
6
|
1.1-1.8
|
11150*2100*1100
|
160*80*4(4)
|
14mm
|
2450
|
|
DCQY-8
|
8
|
1.1-1.8
|
11150*2100*1100
|
160*80*4(4)
|
14mm
|
2650
|
|
DCQY-10
|
10
|
1.1-1.8
|
11150*2100*1100
|
160*80*5(5)
|
14mm
|
2850
|
|
DCQY-12
|
12
|
1.1-1.8
|
11500*2200*1100
|
200*100*5(5)
|
16mm
|
3600
|
|
DCQY-15
|
15
|
1.1-1.8
|
11500*2400*1100
|
250*100*6(5)
|
20mm
|
4500
|
