Quick Details
-
Mesh size:
-
50*100mm
-
Weight:
-
50kg
-
Loading Capacity:
-
1000kg
-
Material:
-
Steel Q235
-
Feature:
-
Foldable, Collapsible, Stackable
-
Certification:
-
ISO9001:2008
-
Item:
-

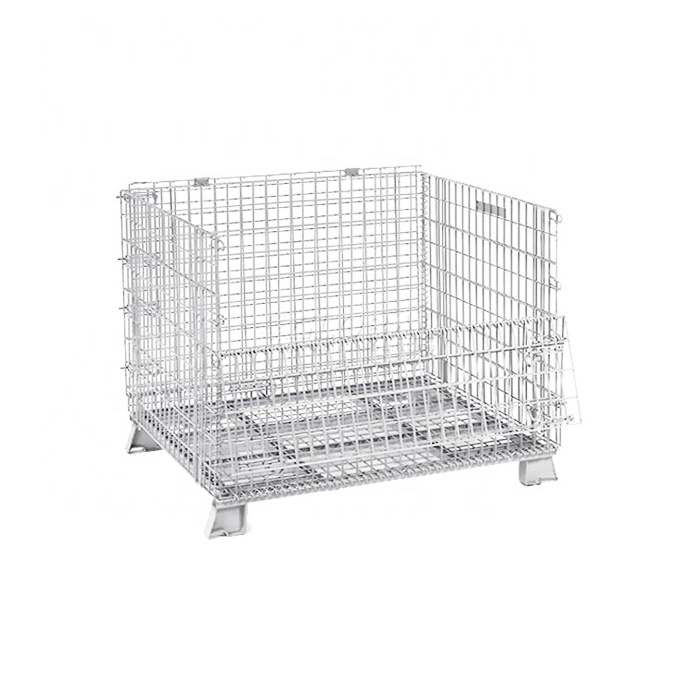

Large Bulk Storage Metal Wire Mesh Basket
Quick Details
-
Place of Origin:
-
China
-
Size:
-
1200*1000*890mm
-
Wire diameter:
-
4.8, 6, 6.4mm
-
Mesh size:
-
50*100mm
-
Weight:
-
50kg
-
Loading Capacity:
-
1000kg
-
Material:
-
Steel Q235
-
Feature:
-
Foldable, Collapsible, Stackable
-
Certification:
-
ISO9001:2008
-
Item:
-
Large Bulk Storage Metal Wire Mesh Basket
Our Wire Mesh Cages are now in SPECIAL PRICE !!
Check Promotion details >>>
Product Details
Our wire mesh containers feature many benefits that make them the perfect fit for many processes.
Features
- Part visibility – Allows the material handler a view of the contents
- Stackability - Allows full use of available space and racking area (can be stacked up to 4 layers)
- Collapsibility – Designed for convenient storage and easy transport
Materials & structure
- Rust proof thick steel wire – Provides longer durability and are reusable
- 100mm-high feet – Allows four-way lifted by forklift trucks
- Drop gates – Provides easy loading and unloading
Standard Dimensions
| Model |
Dimension (mm) (L*W*H) |
Self Weight (kg) |
Loading Capacity (kg) |
Wire Diameter (mm) |
Mesh Size (mm) |
Volume (m²) |
Loading Quantity
20'ft/40'ft |
| JDSC-A3 | 800*600*640 | 32 | 800 | 6 | 50*50 | 0.22 | 350/750 |
| JDSC-B3 | 800*600*640 | 29 | 800 | 6 | 50*100 | 0.22 | 350/750 |
| JDSC-A5 | 1000*800*840 | 49 | 1200 | 6 | 50*50 | 0.52 | 220/484 |
| JDSC-B5 | 1000*800*840 | 54 | 1200 | 6.4 | 50*50 | 0.52 | 220/484 |
| JDSC-C5 | 1000*800*840 | 37 | 600 | 4.8 | 50*50 | 0.52 | 220/484 |
| JDSC-S5 | 1000*800*840 | 45 | 1000 | 6.4 | 50*100 | 0.52 | 220/484 |
| JDSC-SS5 | 1000*800*840 | 42 | 1000 | 6 | 50*100 | 0.52 | 220/484 |
| JDSC-A7 | 1200*1000*890 | 65 | 1500 | 6 | 50*50 | 0.84 | 175/350 |
| JDSC-B7 | 1200*1000*890 | 73 | 1500 | 6.4 | 50*50 | 0.84 | 175/350 |
| JDSC-D7 | 1200*1000*890 | 50 | 1500 | 6 | 100*100 | 0.84 | 175/350 |
| JDSC-S7 | 1200*1000*890 | 62 | 1500 | 6.4 | 50*100 | 0.84 | 175/350 |
| JDSC-SS7 | 1200*1000*890 | 57 | 1500 | 6 | 50*100 | 0.84 | 175/350 |
Our wire mesh cages are also available with following options:
- PP sheets, iron plates, forklift plates, wheels, mesh tops, covers
- Electro galvanized / hot dip galvanized / painting / powder coated surface treatments
- Custom colors, custom sizes, custom design
