Quick Details
-
Brand Name:
-
TTI
-
Use:
-
FTTX, Data processing network
-
Warranty Time:
-
3 Years
-

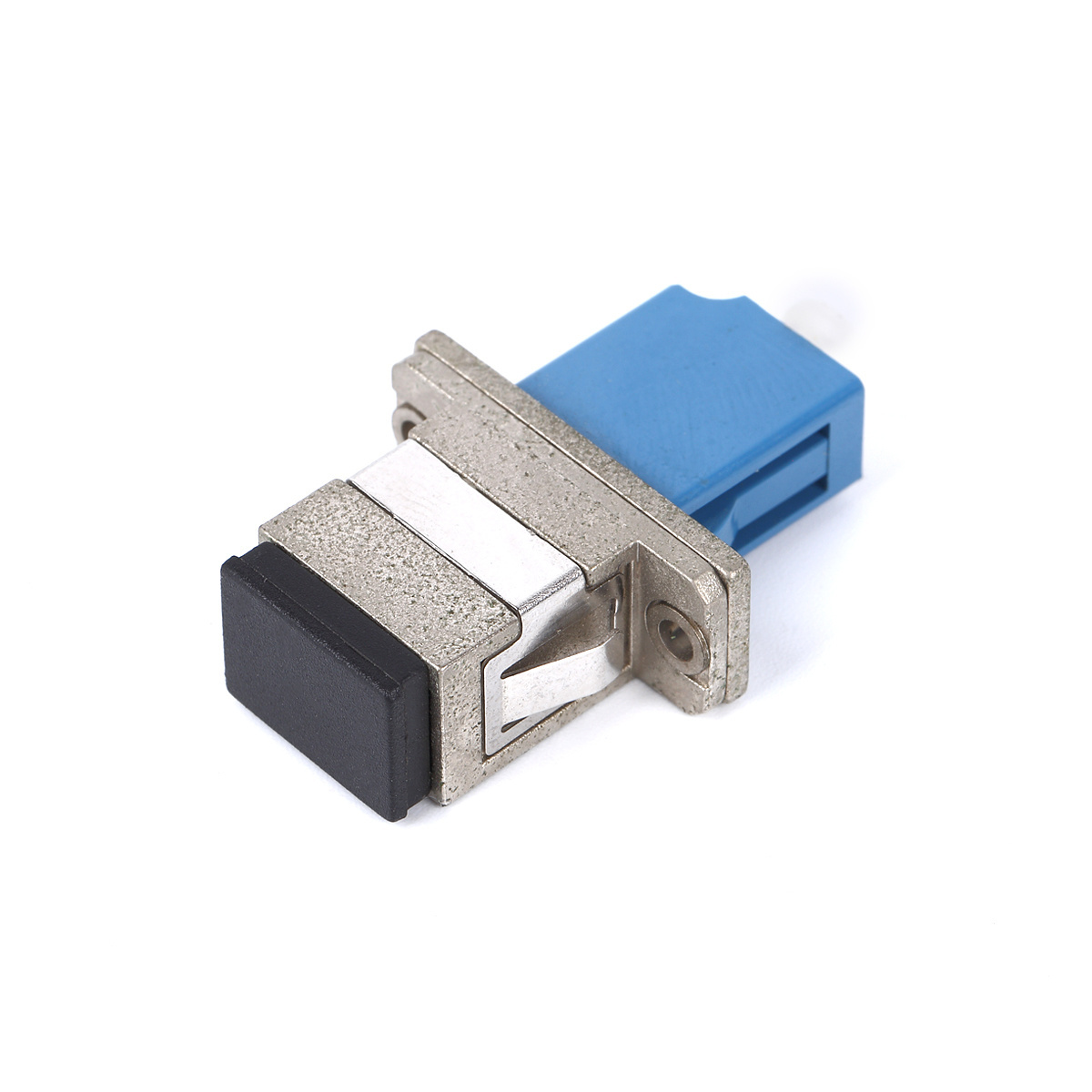

Product name:
-
Fiber Adapter
-
Connector Type:
-
SC
-
Application:
-
FTTX
-
Certification:
-
CE/ROHS/ISO9001
-
Color:
-
Green
-
Material:
-
ABS
-
Mode:
-
SM MM
-
Core:
-
Simplex; duplex
-
Warranty:
-
1 Year / 12 Months
Quick Details
-
Type:
-
Fiber opitc adapter
-
Model Number:
-
LC SC ST FC Adapter
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TTI
-
Use:
-
FTTX, Data processing network
-
Warranty Time:
-
3 Years
-
Product name:
-
Fiber Adapter
-
Connector Type:
-
SC
-
Application:
-
FTTX
-
Certification:
-
CE/ROHS/ISO9001
-
Color:
-
Green
-
Material:
-
ABS
-
Mode:
-
SM MM
-
Core:
-
Simplex; duplex
-
Warranty:
-
1 Year / 12 Months
Specification
|
Parameter
|
SM
|
|
|
MM
|
|||
|
Ferrule End-face
|
PC
|
UPC
|
APC
|
PC
|
|||
|
Insertion Loss
|
≤0.3dB
|
≤0.2dB
|
≤0.3dB
|
≤0.2dB
|
|||
|
Return Loss
|
≥45dB
|
≥50dB
|
≥60dB
|
≥35dB
|
|||
|
Mating Durability(1000 times)
|
Additional Loss≤0.1dB
Return Loss Variability<5dB
|
|
|
|
|||
|
Temperature stability(-40~+85℃）
|
Additional Loss≤0.2dB
Return Loss Variability<5dB
|
|
|
|
|||
|
Operating Temperature
|
-40~+75℃
|
|
|
|
|||
|
Storage Temperature
|
-45~+85℃
|
|
|
|
|||
Features:
Insertion loss: Less than 0.2dB
Return loss: 45dB/PC, 55dB/UPC, 65dB/APC
Retentivity:200-600g
Repeatability (1,000 times): Less than 0.2dB
High precision alignment
Compact design
Various housing materials and sleeve materials
Nickel plated brass body
Telcordia, ANSI, TIA/EIA, NTT and JIS compliance
Application:
Telecommunication networks
Test equipment
Local area networks (LANs)
Data processing networks
CATV
Patch panel, optical fiber distribution frame
Information:
1. Connector Type: FC, SC, LC, ST, MPO, MTRJ, MU, D4, DIN, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type : SM, MM(OM1 OM2 OM3 OM4)
4. Structure: Simpled, Duplex, Quad
5. With flange, without flange
6. Sleeve: copper alloy,Zinc alloy
7. Material: ABS, PC, PBT
Insertion loss: Less than 0.2dB
Return loss: 45dB/PC, 55dB/UPC, 65dB/APC
Retentivity:200-600g
Repeatability (1,000 times): Less than 0.2dB
High precision alignment
Compact design
Various housing materials and sleeve materials
Nickel plated brass body
Telcordia, ANSI, TIA/EIA, NTT and JIS compliance
Application:
Telecommunication networks
Test equipment
Local area networks (LANs)
Data processing networks
CATV
Patch panel, optical fiber distribution frame
Information:
1. Connector Type: FC, SC, LC, ST, MPO, MTRJ, MU, D4, DIN, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type : SM, MM(OM1 OM2 OM3 OM4)
4. Structure: Simpled, Duplex, Quad
5. With flange, without flange
6. Sleeve: copper alloy,Zinc alloy
7. Material: ABS, PC, PBT
