Quick Details
-
Brand Name:
-
Innovo
-
Voltage:
-
220v
-
Power:
-
0.75kw
-
Dimension(L*W*H):
-
1400*1220*1300mm
-
Weight:
-
240 kg
-
warranty:
-
one year
-
delivery time:
-
15days
-
Case size(max):
-
800*450mm
-
Case size(min):
-
150*150mm
-
Paper thickness:
-
80-200gsm
-
max case thickness:
-
4mm
-
After Warranty Service:
-
Video technical support
Quick Details
-
Production Capacity:
-
3-7PCS/minute
-
Product Type:
-
case making machine
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Innovo
-
Voltage:
-
220v
-
Power:
-
0.75kw
-
Dimension(L*W*H):
-
1400*1220*1300mm
-
Weight:
-
240 kg
-
warranty:
-
one year
-
delivery time:
-
15days
-
Case size(max):
-
800*450mm
-
Case size(min):
-
150*150mm
-
Paper thickness:
-
80-200gsm
-
max case thickness:
-
4mm
-
After Warranty Service:
-
Video technical support

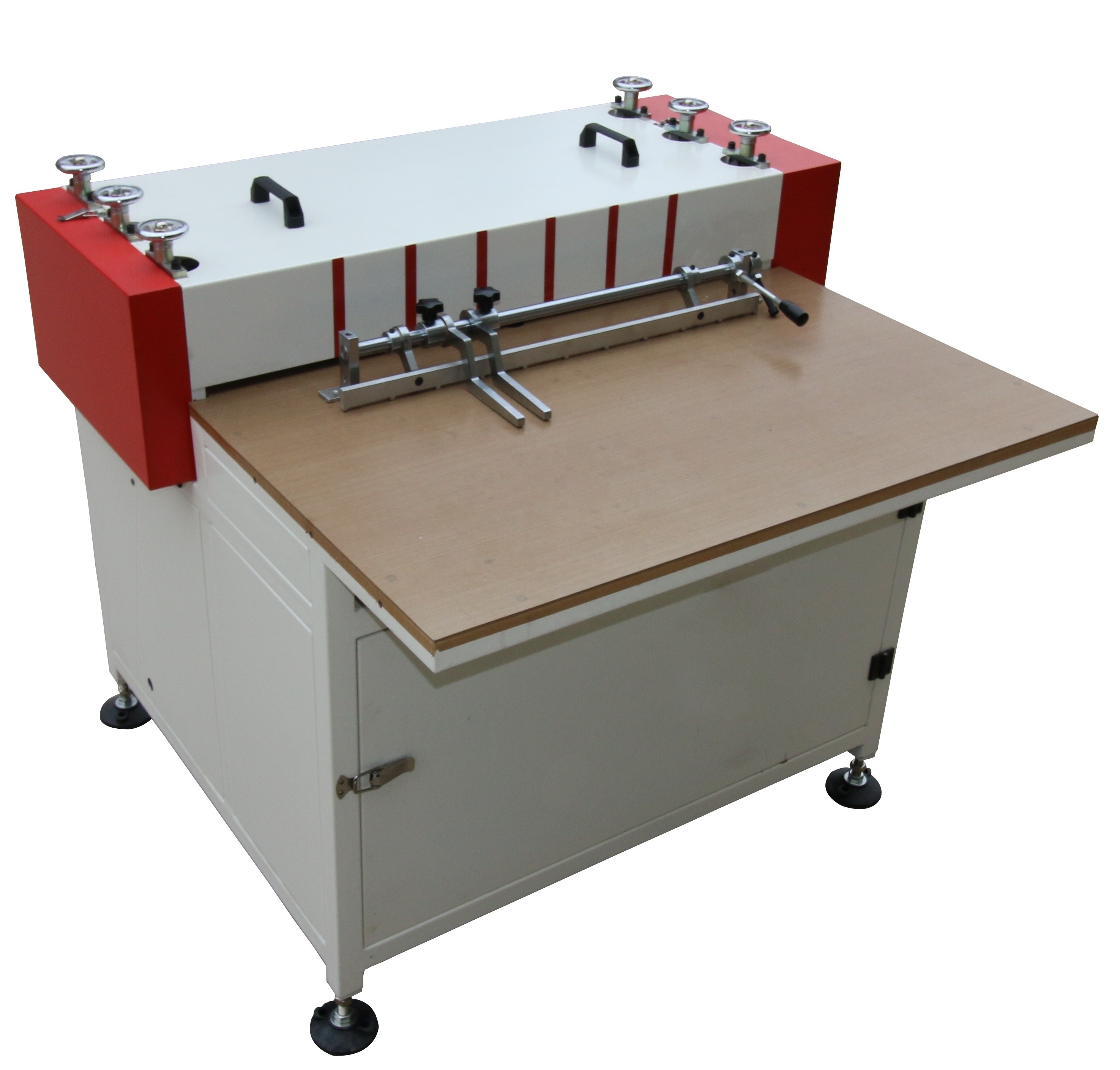

P KE Book Hard cover making machine
· Weight: 3 00 kg
· Dimension(L*W*H): 1 40 0*1220*1 30 0mm
· Plywood case dimension:1550*1450*1400mm
· color: white and red
|
Packaging Details: |
ply wood case |
|
Delivery Detail: |
about 10 days after received the payment |
Video:https://www.youtube.com/watch?v=kAyTixTMaCw
Specifications
The hard book cover making machine is mostly applicable to various notebook, photo book (photo album), folder, certificate, hardcover book. It would be better match with Gluing Machine( Such as our RJS JS series of glue machine, Can use hot glue, white latex ).
Working details
Firstly: glue the cover paper with Glu e Machin e,Move the glued paper to the plate under the clamping device;
Secondly: fix the grey board to the glued cover pape r by hand ,Lift up the clamping device,
Thirdly
:
push
the fixed unit
in
to
ZX
SCM500
I
I
where the
4
sides will be folded at
2
time
s:when put into,will folding 2 sides,then machine push out,put into twice,will folding the other 2 sides.
Technical parameter
|
Model |
PKE-800 |
|
Power Supply |
220V/50HZ |
|
Mainframe power |
0.75kw |
|
Work Speed |
3-7 PCS/minute |
|
Case size(max) |
800*450mm |
|
Case size(min) |
150*150mm |
|
Machine Dimensions(L×W×H) |
1 40 0*1220*1 30 0mm |
|
Paper thickness |
80- 250 g |
More Photo
Front:
back:
1. The packing is confirm to export wooden case standard, strong and durable. The wooden case’s thickness is generally 1 cm.
2. In order to be waterproof, we usually use bubble film to wrap machine.
3. We can handle shipping for customers too.
We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage .We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.
Innovo look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.
