Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shinenovo
-
Model Number:
-
HP Pro-T 20224
-
Input Voltage:
-
24VDC
-
Output Voltage:
-
220VAC+2%/ 230VAC+2%/ 240VAC+2%
-
Output Current:
-
According to the load
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
380*272*97.5mm
-
Certificate:
-
CE ROHS
-
Warranty:
-
12 months
-
Weight:
-
6.5kg
-
Model:
-
HP PRO-T
-
Rated Power:
-
2000w
-
Communication:
-
RS485/WiFi/GPRS
-
Max PV Input Voltage Voc:
-
120V
-
MPPT tracking channels:
-
1
-
Rated AC input voltage:
-
220VAC/230VAC/240VAC
-
AC Input Voltage Range:
-
170VAC~280VAC (UPS mode) / 120VAC~280VAC (INV mode)
-
AC Input Frequency Range:
-
45Hz~55Hz (50Hz), 55Hz~65Hz (60Hz)
-
Output efficiency:
-
94%
-
Output Wave:
-
Pure Sine Wave
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
99%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shinenovo
-
Model Number:
-
HP Pro-T 20224
-
Input Voltage:
-
24VDC
-
Output Voltage:
-
220VAC+2%/ 230VAC+2%/ 240VAC+2%
-
Output Current:
-
According to the load
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
380*272*97.5mm
-
Certificate:
-
CE ROHS
-
Warranty:
-
12 months
-
Weight:
-
6.5kg
-
Model:
-
HP PRO-T
-
Rated Power:
-
2000w
-
Communication:
-
RS485/WiFi/GPRS
-
Max PV Input Voltage Voc:
-
120V
-
MPPT tracking channels:
-
1
-
Rated AC input voltage:
-
220VAC/230VAC/240VAC
-
AC Input Voltage Range:
-
170VAC~280VAC (UPS mode) / 120VAC~280VAC (INV mode)
-
AC Input Frequency Range:
-
45Hz~55Hz (50Hz), 55Hz~65Hz (60Hz)
-
Output efficiency:
-
94%
-
Output Wave:
-
Pure Sine Wave

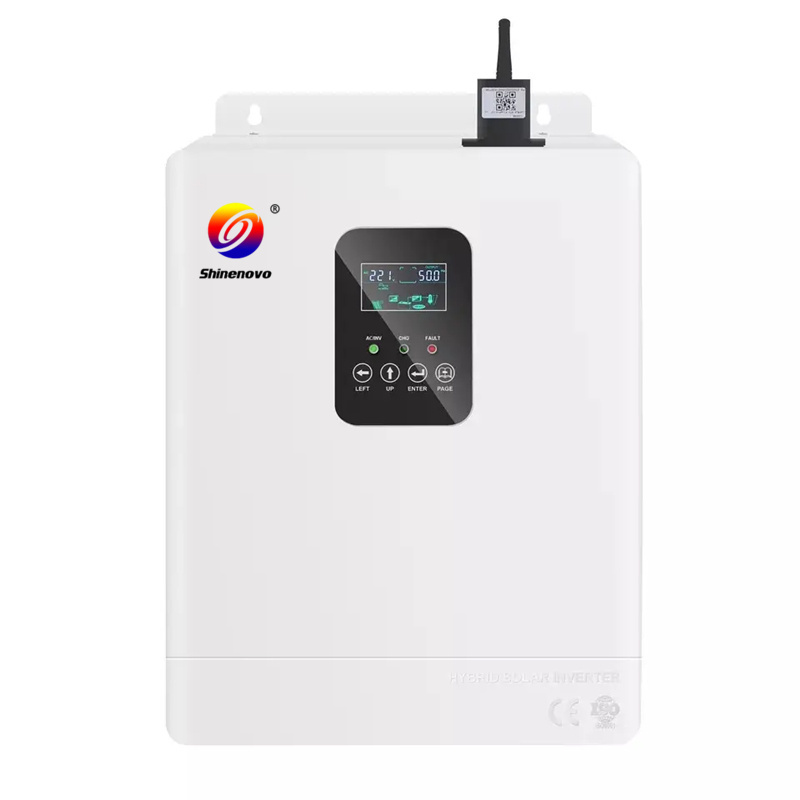

2000W 2KVA High-Frequency 24 Volt 60A MPPT PV120V APP optional WIFI Lithium Battery 2KW Dc to Ac Hybrid Solar Inverter Charger
Feature
·Adopt high-frequency design, high power density, small size,high efficiency and low no-load loss;
·Built-in MPPT controller, integrated solar charging and mains complement design;
·Pure sine wave output,adaptable to any types of loads;
·Battery charge and discharge voltage parameters adjustable, suitable for different types of batteries;
·AC charge current adjustable, battery capacity configuration more flexible;
·Three working modes adjustable:AC first,battery first,PV first;
·Output voltage/frequency adjustable function,adapt to different grid environment;
·Extra wide voltage and frequency input range, support mains or generator;
·LED+LCD display,easy operation and data checking,can set each function and data directly;
·Multi-protection function(overload,over temperature,short circuit protection and so on);
·RS485 communication port/APP optional.
2000W 2KVA High-Frequency 24 Volt 60A MPPT PV120V APP optional WIFI Lithium Battery 2KW Dc to Ac Hybrid Solar Inverter Charger
Technical Data
|
Model:HP Pro-T
|
|
|
10212
|
15224
|
20224
|
||||
|
Rated Power
|
|
|
1000W
|
1500W
|
2000W
|
||||
|
Battery Voltage
|
|
|
12VDC
|
24VDC
|
24VDC
|
||||
|
Product Size (L*W*Hmm)
|
|
|
380*272*97.5
|
460×304×110
|
|
||||
|
Package Size (L*W*Hmm)
|
|
|
443*350*187
|
526×384×198
|
|
||||
|
N.W (Kg)
|
|
|
6.5
|
9.5
|
|
||||
|
G.W (Kg)
|
|
|
7.5
|
10.5
|
|
||||
|
Installation Method
|
|
|
Wall-Mounted
|
|
|
||||
|
PV
|
Charging Mode
|
|
MPPT
|
|
|
||||
|
|
Rated PV input voltage
|
|
15V-30V
|
30V-60V
|
30V-60V
|
||||
|
|
MPPT tracking voltage range
|
|
15V-80V
|
30V-100V
|
30V-100V
|
||||
|
|
Max PV input Voltage Voc (At the lowest temperature)
|
|
120V
|
|
|
||||
|
|
PV Array Maximum Power
|
|
840W
|
1680W
|
1680W
|
||||
|
|
MPPT tracking channels
(input channels)
|
|
1
|
|
|
||||
|
Input
|
DC Input Voltage Range
|
|
10.5~15VDC
|
21~30VDC
|
21~30VDC
|
||||
|
|
Rated AC input voltage
|
|
220VAC / 230VAC / 240VAC
|
|
|
||||
|
|
AC Input Voltage Range
|
|
170VAC~280VAC (UPS mode) / 120VAC~280VAC (INV mode)
|
|
|
||||
|
|
AC Input Frequency Range
|
|
45Hz~55Hz (50Hz), 55Hz~65Hz (60Hz)
|
|
|
||||
|
Output
|
Output efficiency (Battery/PV Mode)
|
|
94% (Peak value)
|
|
|
||||
|
|
Output Voltage (Battery/PV Mode)
|
|
220VAC±2% / 230VAC±2% / 240VAC±2%
|
|
|
||||
|
|
Output Frequency (Battery/PV Mode)
|
|
50Hz±0.5 or 60Hz±0.5 (INV mode)
|
|
|
||||
|
|
Output Wave (Battery/PV Mode)
|
|
Pure Sine Wave
|
|
|
||||
|
|
Efficiency(AC Mode)
|
|
≥99%
|
|
|
||||
|
|
Output Voltage(AC Mode)
|
|
Follow input
|
|
|
||||
|
|
Output Frequency (AC Mode)
|
|
Follow input
|
|
|
||||
|
|
Output waveform distortion (Battery/PV Mode)
|
|
≤3% (Linear load)
|
|
|
||||
|
|
No load loss (Battery Mode)
|
|
≤1% rated power
|
|
|
||||
|
|
No load loss(AC Mode)
|
|
≤0.5% rated power(charger does not work in AC mode)
|
|
|
||||
|
Battery
|
Type
|
VRLA Battery
|
Charge Voltage:13.8V ; Float Voltage:13.7V
(Single battery voltage)
|
|
|
||||
|
|
|
|
Charging and discharging parameters of different types of batteries can be customized according to user requirements
(charging and discharging parameters of different types of batteries can be set through the operation panel)
|
|
|
||||
|
|
Max AC Charging Current
|
|
60A
|
40A
|
50A
|
||||
|
|
Max PV Charging Current
|
|
60A
|
60A
|
60A
|
||||
|
|
Maximum charging current (mains + PV)
|
|
120A
|
100A
|
110A
|
||||
|
|
Charging method
|
|
Three-stage (constant current,constant voltage,floating charge)
|
|
|
||||
|
Protection
|
Battery low voltage alarm
|
|
Battery undervoltage protection value + 0.5V
(Single battery voltage)
|
|
|
||||
|
|
Battery low voltage protection
|
|
Factory default:10.5V(Single battery voltage)
|
|
|
||||
|
|
Battery over voltage alarm
|
|
Constant charge voltage + 0.8V(Single battery voltage)
|
|
|
||||
|
|
Battery over voltage protection
|
|
Factory default:17V(Single battery voltage)
|
|
|
||||
|
|
Battery over voltage recovery voltage
|
|
Battery overvoltage protection value-1V(Single battery voltage)
|
|
|
||||
|
|
Overload power protection
|
|
Automatic protection(battery mode),
circuit breaker or insurance (AC Mode)
|
|
|
||||
|
|
Inverter output short circuit protection
|
|
Automatic protection(battery mode),
circuit breaker or insurance (AC Mode)
|
|
|
||||
|
|
Temperature protection
|
|
＞90℃(Shut down output)
|
|
|
||||
|
Working Mode
|
|
|
Mains priority / Solar priority / Battery priority (Can be set)
|
|
|
||||
|
Transfer Time
|
|
|
≤10ms
|
|
|
||||
|
Display
|
|
|
LCD+LED
|
|
|
||||
|
Thermal method
|
|
|
Cooling fan in intelligent control
|
|
|
||||
|
Communication(Optional)
|
|
|
RS485 / APP (WIFI monitoring or GPRS monitoring)
|
|
|
||||
|
Environment
|
Operating temperature
|
|
-10℃~40℃
|
|
|
||||
|
|
Storage temperature
|
|
-15℃~60℃
|
|
|
||||
|
|
Noise
|
|
≤55dB
|
|
|
||||
|
|
Elevation
|
|
2000m (More than dreating)
|
|
|
||||
|
|
Humidity
|
|
0%~95% (No condensation)
|
|
|
||||
2000W 2KVA High-Frequency 24 Volt 60A MPPT PV120V APP optional WIFI Lithium Battery 2KW Dc to Ac Hybrid Solar Inverter Charger
Product Details
2000W 2KVA High-Frequency 24 Volt 60A MPPT PV120V APP optional WIFI Lithium Battery 2KW Dc to Ac Hybrid Solar Inverter Charger
Our Company
We, Harbin Shinenovo Technology Development Co., Ltd., are exporter and service provider, specializing in exporting solar power products, designing solar systems and providing solar engineering services. We have a wide range of solar products, including solar panel, solar inverter, solar controller, portable solar lighting system, solar garden light and DC & AC solar system. All of our products have been passed CE, TUV, ISO, CQC and other certifications. Our service team provides customers with professional, patient and high-quality services and technical support, including solar power design, fault clearance and after service. We aim at continuously expanding variety of products and improving quality standards to offer an overall understanding to the customers and make them buy various related products. If you have any questions about our products, please contact us timely. We are striving for our common sustainably developing future and advanced technology. In order to solve climate and resources problems, we are willing to achieve our common dream toghther with you.
