Quick Details
-
Input Channel:
-
1024
-
Output Channel:
-
32
-
Max simulcrypt CA:
-
6
-
Connection:
-
Local/remote connection
-
Weight:
-
3 kg
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DAYTAI
-
Model Number:
-
DT-IQM-9332
-
Input Channel:
-
1024
-
Output Channel:
-
32
-
Max simulcrypt CA:
-
6
-
Connection:
-
Local/remote connection
-
Weight:
-
3 kg
★Modulator

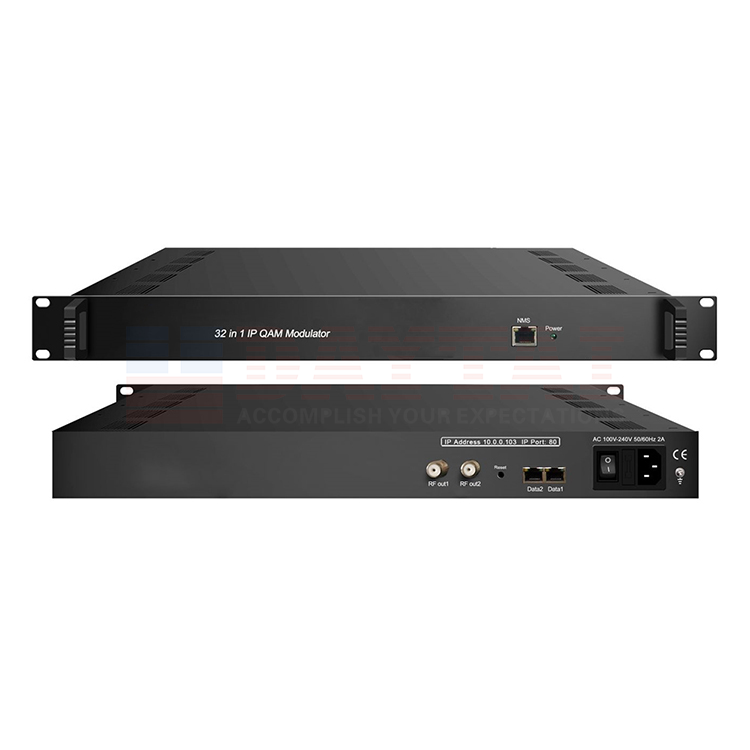

Digital TV Headend IP QAM Modulator (DT-IQM-9332),DT-IQM-9332 IP QAM modulator is Mux-scrambling-modulating all-in-one device developed by DAYTAI. It has 32 multiplexing channels,32 scrambling channels and 32 QAM (DVB-C) modulating channels, and supports maximum 1024 IP input through the GE port and 32 non-adjacent carriers (50MHz~960MHz) output through the RF output interface. The device is characterized with dual RF output ports which broaden the bandwidth for QAM carriers.Power Supply:AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz,Power Plug:European standard Plug or American standard Plug is optional.
★
Features
⊙Supports RS (204,188) encoding
⊙Max 840Mbps for each GE input
⊙Support Web-based Network management
⊙Supports up to 256 PID remapping per channel
⊙2 GE input, Data1 and Data2 (SFP interface optional)
⊙Supports up to 1024 IP input through GE1 & GE2 over UDP/RTP
⊙Support 32 multiplexed or scrambled IP out over UDP/RTP/RTSP
⊙Supports accurate PCR adjusting, CA PID filtering, PID remapping and PSI/SI editing
⊙Support DVB general scrambling system (ETR289), simulcrypt standards ETSI 101 197 and ETSI 103 197
⊙32 non-adjacent QAM carriers output with 2 RF ports, compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B
⊙Max 840Mbps for each GE input
⊙Support Web-based Network management
⊙Supports up to 256 PID remapping per channel
⊙2 GE input, Data1 and Data2 (SFP interface optional)
⊙Supports up to 1024 IP input through GE1 & GE2 over UDP/RTP
⊙Support 32 multiplexed or scrambled IP out over UDP/RTP/RTSP
⊙Supports accurate PCR adjusting, CA PID filtering, PID remapping and PSI/SI editing
⊙Support DVB general scrambling system (ETR289), simulcrypt standards ETSI 101 197 and ETSI 103 197
⊙32 non-adjacent QAM carriers output with 2 RF ports, compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B
★
Specification
|
Input
|
512×2 IP input, 2*100/1000M Ethernet Port(SFP
interface optional) |
|
||
|
Transport Protocol
|
TS over UDP/RTP, unicast and multicast, IGMP V2/V3
|
|
||
|
Transmission Rate
|
Max 840Mbps for each GE input
|
|
||
|
Input Channel
|
1024
|
|
||
|
Output Channel
|
32
|
|
||
|
Max PIDs
|
256 per channel
|
|
||
|
Functions
|
PID remapping(auto/manually optional)
|
|
||
|
|
PCR accurate adjusting
|
|
||
|
|
PSI/SI table automatically generating
|
|
||
|
Max simulscrypt CA
|
4
|
|
||
|
Scramble Standard
|
ETR289, ETSI 101 197, ETSI 103 197
|
|
||
|
Connection
|
Local/remote connection
|
|
||
|
DVB-C Modulator Sectioon
|
J.83A
|
Constellation :16/32/64/128/256QAM
|
||
|
|
|
Bandwidth :8M
|
||
|
|
J.83B
|
Constellation :64/256QAM
|
||
|
|
|
Bandwidth :6M
|
||
|
QAM Channel
|
32 non-adjacent carrier
|
|
||
|
Modulation Standard
|
EN300 429/ITU-T J.83A/B
|
|
||
|
Symbol Rate
|
5.0~7.0Msps, 1ksps stepping
|
|
||
|
Constellation
|
16, 32, 64 , 128, 256QAM
|
|
||
|
FEC
|
RS (204, 188)
|
|
||
|
Interface
|
2 F type output ports for 32 carriers, 75Ω
|
|
||
|
RF Range
|
50~960MHz, 1kHz stepping
|
|
||
|
Output Level
|
-20dBm~+10dBm(87~117dbµV), 0.1dB stepping
|
|
||
|
MER
|
≥ 40dB
|
|
||
|
ACLR
|
-60 dBc
|
|
||
|
32 IP output over UDP/RTP/RTSP,unicast/multicast,2*100/1000M Ethernet Ports (SFP)
|
|
|
||
|
Network management software (NMS) supporting
|
|
|
||
|
Demission
|
420mm×440mm×44.5mm (WxLxH)
|
|
||
|
Weight
|
3kg
|
|
||
|
Temperature
|
0~45℃(operation), -20~80℃(storage)
|
|
||
|
Power Supply
|
AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz
|
|
||
|
Consumption
|
15.4W
|
|
||
