Comprehensive Medium Toggle Switch M12*0.75 SPST/SPDT/DPST/DPDT/3PDT/4PDT Latching Momentary High Current Toggle Switch

Comprehensive Medium Toggle Switch M12*0.75 SPST/SPDT/DPST/DPDT/3PDT/4PDT Latching Momentary High Current Toggle Switch

FOB Reference Price: Get Latest Price

≥100 Pieces

US $0.7

≥1000 Pieces

US $0.55

≥5000 Pieces

US $0.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: KN3C Serie Toggle Switches

Mechanical Life:: 100000 Cycles

Function1:: SPST/SPDT/DPST/DPDT/3PDT/4PDT

Function2:: Latching/Momentary

Mounitng Hole Size:: M12X0.75

Rating:: 30A,12VDC;20A 125VAC;15A 250VAC

Contact Resistance:: 50m Max

Insulation Resistance:: 500VDC 1000M Min

Dielectric Strength:: 1500VAC 1MIN

Operating temperature:: -25~+85℃

Quick Details

Max. Voltage:: 250VAC

Place of Origin:: ZHE

Brand Name:: Daier

Model Number:: KN3C Serie Toggle Switches

Mechanical Life:: 100000 Cycles

Function1:: SPST/SPDT/DPST/DPDT/3PDT/4PDT

Function2:: Latching/Momentary

Mounitng Hole Size:: M12X0.75

Rating:: 30A,12VDC;20A 125VAC;15A 250VAC

Contact Resistance:: 50m Max

Insulation Resistance:: 500VDC 1000M Min

Dielectric Strength:: 1500VAC 1MIN

Operating temperature:: -25~+85℃

48VDC M10 Heavy Duty Dual Bus Bar

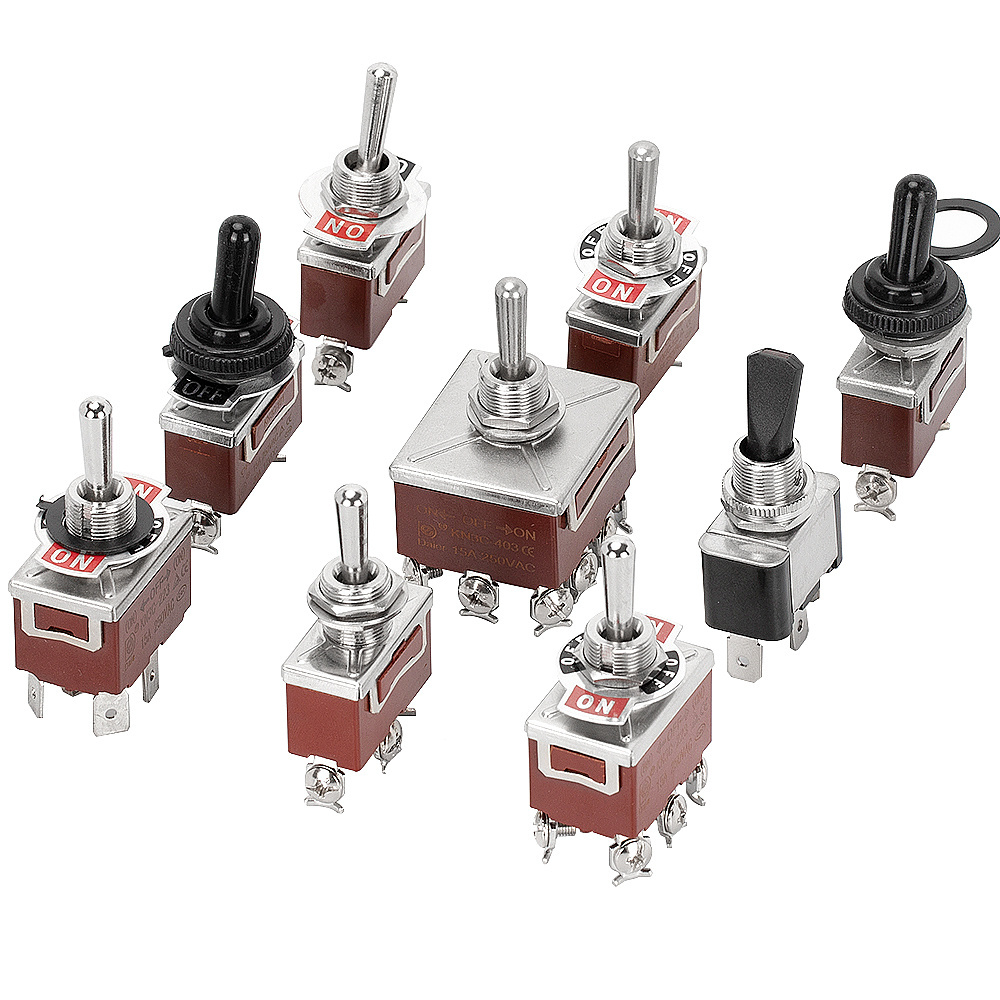

* 【Product Type】 - The KN3C toggle switch has SPST/SPDT/DPST/DPDT/3PDT/4PDT Latching/Momentary types.
* 【Rating】 - 30A 12V DC, 20A 125VAC,15A 250VAC, heavy duty toggle switch.
* 【Easy to Install】 - The mounting hole diameter: 12mm/0.47". Each Toggle Switch has screw terminals for quick connection.
* 【Waterproof & Durable 】- Each 12V Marine Toggle Switch comes with a waterproof cap which can reach IP65 waterproof.

This toggle switch is made of metal and plastic, with thickened handles and flame retardant housing for durability.

Products Description

item	Comprehensive Medium Toggle Switch M12*0.75 SPST/SPDT/DPST/DPDT/3PDT/4PDT Latching Momentary High Current Toggle Switch
Function1	SPST/SPDT/DPST/DPDT/3PDT/4PDT
Function2	Latching/Momentary
Mounitng Hole Size	M12X0.75
Rating	30A,12VDC;20A 125VAC;15A 250VAC
Contact Resistance	50m Max
Insulation Resistance	500VDC 1000M Min
Dielectric Strength	1500VAC 1MIN
Operating temperature	-25~+85℃

—— Progucts Details ——

KN3C Series Rocker Switch

Rating: 30A 12VDC; 20A 125VAC:

15A 250VAC:

Contact Resistance: 35mΩ max

Insulation Resistance :500VDC 100M Ω min

Dielectric Strength: 1500VAC,1 Minute

Operating Temperature: -25℃~+85 ℃

Electrical Life: >=10000 Cycles

Workshop

Comprehensive Medium Toggle Switch M12*0.75 SPST/SPDT/DPST/DPDT/3PDT/4PDT Latching Momentary High Current Toggle Switch

Product Certified

Exhibition

Our team

FAQ

1.Q: Could I put my own logo on the products?

A: Sure, your logo can be put on every product, either by laser, or by moulds.

2.Q: Could I put my own designs of label on the products?
A: Of course, you can send us your design, we'll follow your design.

3.Q: Can I have some samples before formal order?
A: Yes. we can send you some free samples for your test before your order.

4.Q: How long is the lead time?
A: Normally we keep stock for most products, the lead time is 1-5 days as soon as the payment is released.
For customized products, it takes longer.

5.Q: How about the after-sale service? What's the Warranty terms?
A: We offer 12 months for every products we sold. If you meet any problems after sales, pis contact us freely,
we'll help solving the problems within 24 hours.

6.Q: Are you manufacturer or just dealer?
A: We're manufaturer, we do produce all products by ourself. Welcome to visit our plant at any time.

7.Q: What's the payment terms? Can I pay after you got the products?
A: Normally we accept TT and western union. L/C is also accepted if the order quantity is large. For old customers,
we'll guanartee monthly payment after good cooperationship.

8.Q: I couldn't find the products I want in your catalogue, can you develop it for me?
A: Yes. we have a research & development dept.
