Quick Details
-
Product Name:
-
car parking sensor system Boom Barrier Gate
-
Warranty:
-
1 Year
-
Application:
-
Parking Lot
-
Usage:
-
Parking Management
-
Output Power:
-
150W
-
Voltage:
-
DC24V
-
Rated Current:
-
16A
-
Rated Speed of Motor:
-
1400r/min
-
Lift The Rod Time Option-1:
-
1.2S-3.0S
-
Lift The Rod Time Option-2:
-
2.5S-6.0S
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ricom
-
Model Number:
-
Barrier Gate
-
Product Name:
-
car parking sensor system Boom Barrier Gate
-
Warranty:
-
1 Year
-
Application:
-
Parking Lot
-
Usage:
-
Parking Management
-
Output Power:
-
150W
-
Voltage:
-
DC24V
-
Rated Current:
-
16A
-
Rated Speed of Motor:
-
1400r/min
-
Lift The Rod Time Option-1:
-
1.2S-3.0S
-
Lift The Rod Time Option-2:
-
2.5S-6.0S
fully automated parking system smart car park payment systems car parking sensor system Boom Barrier Gate
Product Function Characteristics:
*The movement is installed on the side, convenient installation, and compact structure.
*The main body of the movement is made of aluminum alloy, which is manufactured by the die casting process. The mechanical strength is reliable, the appearance is beautiful, the size is accurate, and the heat dissipation is good.
*The movement adopts parallel gear deceleration connecting rod transmission, with high transmission efficiency and small loss of power output; gear carbon steel, carburizing thermal treatment process, precision rolling processing, abrasion, anti -impact, and the service life far exceeding the worm transmission structure.
*The movement adopts a DC brushless motor. The output-large torque and small volume. Through the controller, the speed can be arbitrarily adjusted. When the falling rod and the lift rod are in place, the deceleration buffer can be achieved, so that the rod-smooth-in place.
*The motor uses a DC24V safety voltage to avoid an electric shock accident caused by leakage.
Technical Parameter:
|
Model |
Output Power |
Voltage |
Rated Current |
Rated Speed of Motor |
Lift The Rod Time |
|
125-1.2S |
150W |
DC24V |
16A |
1400r/min |
1.2S-3.0S |
|
125-2.4S |
150W |
DC24V |
16A |
1400r/min |
2.5S-6.0S |
|
Barrier Gate Size: H*L*W |
1050*350*240mm |
||||
|
Movement-working temperature |
-40℃~60℃ |
||||
|
Humidity |
Within 90%(No condensation) |
||||
|
Altitude |
Below 1500m |
||||

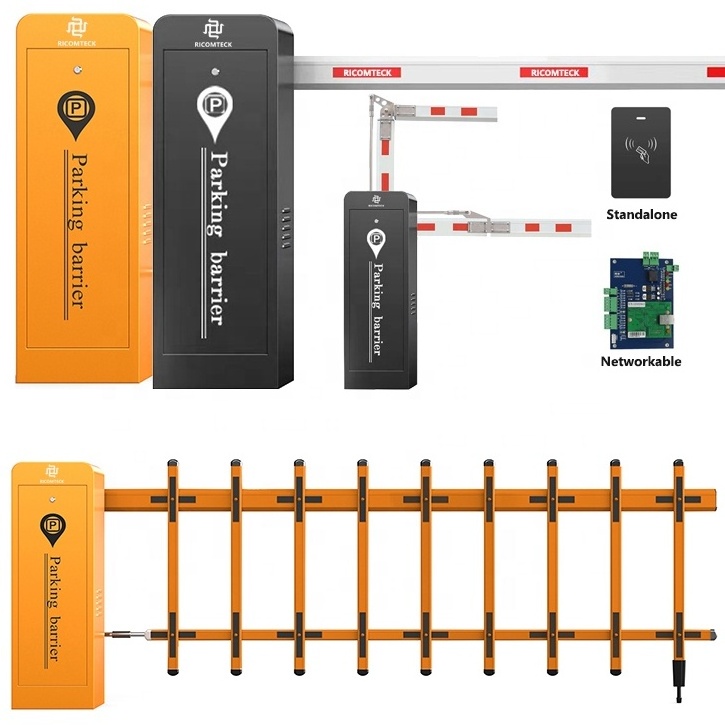

Product Configuration Parameters:
|
Number |
Related parameters |
|||
|
1 |
Fast Barrier Gate |
|||
|
Barrier Type |
Straight Arm |
Crank Arm |
Fence Type |
|
|
Pole length |
<4 meters |
|
|
|
|
Lift/ Fall Rod Time |
1.2s-2.4s |
|||
|
Central Height |
0.85 ~ 0.92 meters (the center of the pole-distance from the ground) |
|||
|
2 |
Mid-speed Barrier Gate |
|||
|
Barrier Type |
Straight Arm |
Crank Arm |
Fence Type |
|
|
Pole length |
<3m |
<3m |
<3m |
|
|
Lift/ Fall Rod Time |
3-4s |
|||
|
Central Height |
0.85 ~ 0.92 meters (the center of the pole-distance from the ground) |
|||
|
3 |
Slow-moving Barrier Gate |
|||
|
Barrier Type |
Straight Arm |
Crank Arm |
Fence Type |
|
|
Pole length |
<6m |
<4.5m |
<4.5m |
|
|
Lift/ Fall Rod Time |
5-6s |
|||
|
Central Height |
0.85 ~ 0.92 meters (the center of the pole-distance from the ground) |
|||
Product packaging list:
|
Number |
Name |
QTY |
|
1 |
Barrier Gate |
1PCS |
|
2 |
Barrier Pole |
1PCS |
|
3 |
Pole Splint |
1PCS |
|
4 |
Board-strip |
2PCS |
|
5 |
Expansion screw (M14x140) |
4PCS |
|
6 |
Lock Opener |
2PCS |
|
7 |
Controller (including 2pcs remote controllers) |
1Set |
|
8 |
Instructions |
1PCS |
