Quick Details
-
Production Capacity:
-
High
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
CAHARD
-
Voltage:
-
AC380±10%-50HZ/Custom, 380v
-
Dimension(L*W*H):
-
2156*1468*1620mm, 2550*1680*1570mm
-
Weight:
-
3300 kg
-
Marketing Type:
-
Hot sale products
-
Wire Saw Speed:
-
0~40m/s
-
Walking Motor Power:
-
1.5KW
-
Lateral Moving Distance:
-
400mm
-
Max Cutting Distance:
-
1750mm
-
Rotation Angle:
-
360°
-
Allowed Working Temperature:
-
-15~40℃
-
Walking Speed of Machine:
-
0~40m/s
-
Certification:
-
CE/ ISO9001
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
30KW/37KW/45KW/55KW/75KW/90KW
-
Cutting thickness (max):
-
350mm
-
Production Capacity:
-
High
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
CAHARD
-
Voltage:
-
AC380±10%-50HZ/Custom, 380v
-
Dimension(L*W*H):
-
2156*1468*1620mm, 2550*1680*1570mm
-
Weight:
-
3300 kg
-
Marketing Type:
-
Hot sale products
-
Wire Saw Speed:
-
0~40m/s
-
Walking Motor Power:
-
1.5KW
-
Lateral Moving Distance:
-
400mm
-
Max Cutting Distance:
-
1750mm
-
Rotation Angle:
-
360°
-
Allowed Working Temperature:
-
-15~40℃
-
Walking Speed of Machine:
-
0~40m/s
-
Certification:
-
CE/ ISO9001
Application

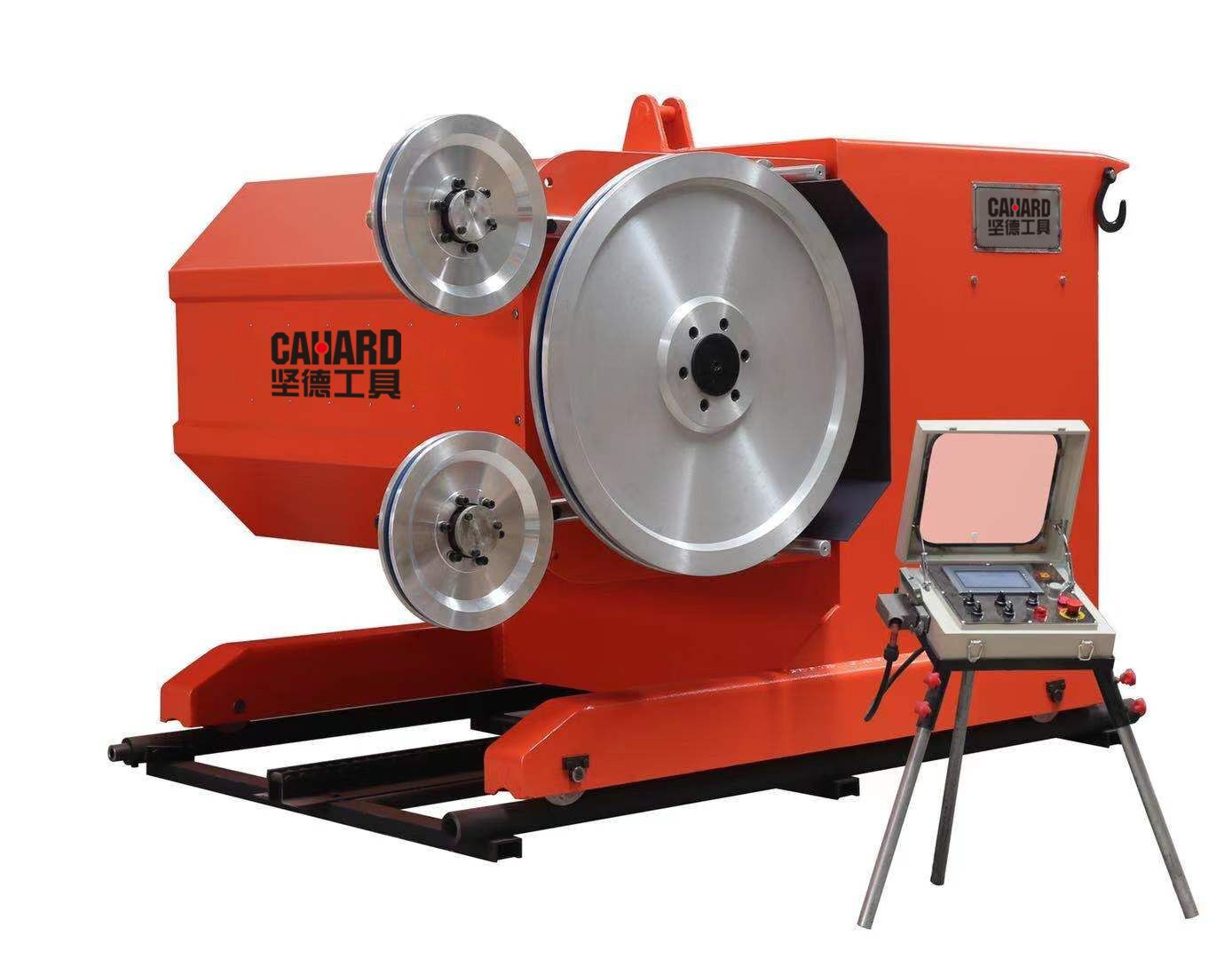

Product Description
Product Feature:
1.Permanent converter
2.8P Motor
3.Full automatic
4.Cutting automatic
5.Double-control system
6.Ending cut automatically
2.8P Motor
3.Full automatic
4.Cutting automatic
5.Double-control system
6.Ending cut automatically
Product details introduction:
1. Being controlled by two sets of inverters and applying constant control principle, the moving speed of the machine can be adjusted automatically according to the changes of the cutting force to make sure the diamond wire saw be in the best cutting condition all the time.
2. The electric cabinet is placed separately. It is easy for maintenance.
3. The real-time parameters are displayed on the control platform, such as the set current of the main motor, the current and the rotation speed of the main motor, etc. It makes the operation and adjustment of the machine more convenient.
4. The machine can be operated manually and automatically. The manual and automatic functions can be shifted from each other. Under the automatic function, the machine can be unattended operated, and one worker is able to operate multiple machines.
5. The lateral position and the rotation angle of the cutting head can be adjusted manually. This design is more economic and practical and highly cost effective.
2. The electric cabinet is placed separately. It is easy for maintenance.
3. The real-time parameters are displayed on the control platform, such as the set current of the main motor, the current and the rotation speed of the main motor, etc. It makes the operation and adjustment of the machine more convenient.
4. The machine can be operated manually and automatically. The manual and automatic functions can be shifted from each other. Under the automatic function, the machine can be unattended operated, and one worker is able to operate multiple machines.
5. The lateral position and the rotation angle of the cutting head can be adjusted manually. This design is more economic and practical and highly cost effective.
Specification
|
Model
|
Main Motor Power
|
Drive wheel diameter
(mm)
|
Length of Wire
(m)
|
Head lateral movement
|
Head rotation
|
Line Speed
(m/s)
|
Rails
|
Dimension of machine
|
Net Weight
|
|
CD-30MA-8P
|
30KW
|
|
5-40
|
|
360
|
0-30/40
|
3pcs,2M
|
2000X1300X1450
|
2600kg
|
|
CD-37MA-8P
|
37KW
|
650/800
|
20-80
|
1750mm
|
360
|
0-30/40
|
3pcs,2M
|
2000X1300X1450
|
2800kg
|
|
CD-45MA-8P
|
45KW
|
650/800
|
20-100
|
1750mm
|
360
|
0-30/40
|
3pcs,2M
|
2000X1370X1510
|
3000kg
|
|
CD-55MA-8P
|
55KW
|
650/800
|
20-120
|
2000mm
|
360
|
0-30/40
|
3pcs,2M
|
2000X1370X1510
|
3500kg
|
|
CD-75MA-8P
|
75KW
|
800/1000
|
20-120
|
2000mm
|
360
|
0-30/40
|
3pcs,2M
|
2000X1450X1580
|
4300kg
|
|
CD-90MA-8P
|
90KW
|
800/1000
|
20-150
|
2000mm
|
360
|
0-30/40
|
3pcs,2M
|
2000X1450X1580
|
4800kg
|
Advanced Features:
1.According to our many years' experience in stone quarries and the valuable suggestions proposed by our customers, our company develops a brand new control system, with the purpose of solving the special operating conditions in stone quarry process and its adjustable functions can meet the demand of practical operating conditions better.
2.A new operating system makes all performance are stable and reliable.
3.Add a position-limit switch to make the main motor can only rotate + 180o.
4.A fault warning function is added to the control panel so that it becomes easier and save time to find out the faults.
5.Using frequency converter+PLC control, the motor can be stepless speed regulation.
6.Using digital communication, the control circuit is simple and the failure rate is low.
7.Control panel is fixed HMI screen.its waterproof and dust-proof, which also has dynamic display images and working information, like as input voltage, cutting data and working time.
8.Intelligent fault detection of equipment system, alarm protection and prompt solutions, timely treatment, user-friendly.
9.Using PID technology, machine can adjust feeding speed automatically according to the changing load of main motor, which keeps the wire tension constant and extend the wire life span.
2.A new operating system makes all performance are stable and reliable.
3.Add a position-limit switch to make the main motor can only rotate + 180o.
4.A fault warning function is added to the control panel so that it becomes easier and save time to find out the faults.
5.Using frequency converter+PLC control, the motor can be stepless speed regulation.
6.Using digital communication, the control circuit is simple and the failure rate is low.
7.Control panel is fixed HMI screen.its waterproof and dust-proof, which also has dynamic display images and working information, like as input voltage, cutting data and working time.
8.Intelligent fault detection of equipment system, alarm protection and prompt solutions, timely treatment, user-friendly.
9.Using PID technology, machine can adjust feeding speed automatically according to the changing load of main motor, which keeps the wire tension constant and extend the wire life span.
Our Factory
Our Service
1.Pre-Sales Service.
* Inquiry and consulting support.
* Sample testing support.
* Welcome view our Factory.
* Sample testing support.
* Welcome view our Factory.
2. After-Sales Service.
* Training how to instal the machine,
training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
Packing & Delivery
FAST DELIVERY TIME:
5-10DAYS
, MOST OF ORDER THE LEAD TIME IS 7-10DAYS.
