Quick Details
-
Blade Length (mm):
-
3500 mm
-
Backgauge Travel (mm):
-
10 - 800 mm
-
Throat Depth (mm):
-
120 mm
-
Power (kW):
-
18.5 kW
-
Weight (KG):
-
3000 KG
-
Place of Origin:
-
China
-
Voltage:
-
380V/50HZ/3PAHSE(Optional)
-
Dimension(L*W*H):
-
6700x2000x2600
-
Marketing Type:
-
New Product 2022
-
Model:
-
6*3200
-
Name:
-
Hydraulic shearing Plate Shear
-
Product name:
-

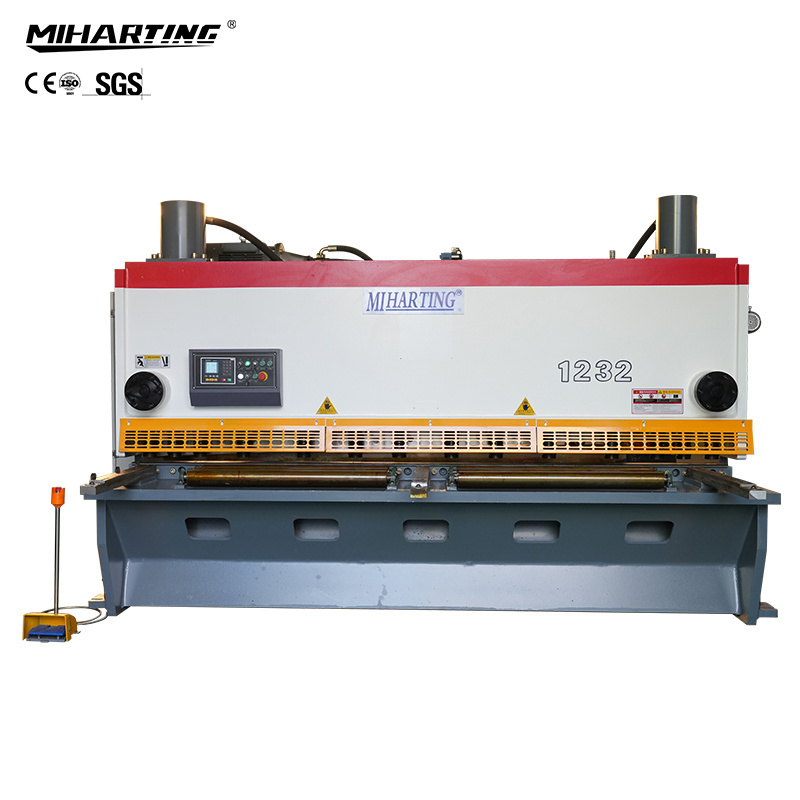

QC11K CNC hydraulic pendulum shearing machine
-
Function:
-
Metal cutting
-
Keyword:
-
Sheet metal cutting machine
-
Power:
-
18.5kw
-
cutting Materials:
-
Steel/Carbon steel
-
Cutting thickness:
-
6MM
-
Application:
-
Industrial Metal shearing cutting
-
Type:
-
sheet plate cutting
Quick Details
-
Max. Cutting Width (mm):
-
3200
-
Max. Cutting Thickness (mm):
-
6 mm
-
Shearing Angle:
-
2
-
Blade Length (mm):
-
3500 mm
-
Backgauge Travel (mm):
-
10 - 800 mm
-
Throat Depth (mm):
-
120 mm
-
Power (kW):
-
18.5 kW
-
Weight (KG):
-
3000 KG
-
Place of Origin:
-
China
-
Voltage:
-
380V/50HZ/3PAHSE(Optional)
-
Dimension(L*W*H):
-
6700x2000x2600
-
Marketing Type:
-
New Product 2022
-
Model:
-
6*3200
-
Name:
-
Hydraulic shearing Plate Shear
-
Product name:
-
QC11K CNC hydraulic pendulum shearing machine
-
Function:
-
Metal cutting
-
Keyword:
-
Sheet metal cutting machine
-
Power:
-
18.5kw
-
cutting Materials:
-
Steel/Carbon steel
-
Cutting thickness:
-
6MM
-
Application:
-
Industrial Metal shearing cutting
-
Type:
-
sheet plate cutting
Product Introdution
Features
• The Machine Uses Steel Plate Welded Structure, The Fuselage Using The Finite Element Analysis And Design, Vibration To Eliminate Stress Of Aging, So That Body Stable And Reliable
• Using Three-Point Rolling Guide Pulley Can Eliminate The Support Gap, And Increase Cutting Precision
• Shearing Angle Can Be Adjusted Within A Certain Range, Which Can Reduce The Shearing Deformation Of Sheet Metal And Can Shear Much Thicker Sheet Metal
• The Shearing Stroke Can Be Adjusted At Will, Which Raise The Working Efficiency And Realize The Function Of Partition Cutting
• The Backgauge Is Designed Manual Lifting Function, Which Is Convenient To Shear Long Sheet Metal
• Inside The Wallboaed Manual Pertol Pump Is Installed, Which Makes Operating Convenient And Lubricating Reliable
• Plug In Hydraulic System Can Make Oil Temperature Become High Slowly, Meanwhile It Enhance The Reliability And Safety Operation Of Machine
• Dac310 And Dac360 Cnc Controllers Both Are Availble Upon Request
Standard Configuration
|
model
|
cutting thickness (mm)
|
cutting width (mm)
|
throat depth（mm)
|
ctting angle
|
backgauge range（mm)
|
stroke number
(times/min)
|
main motor power (kw)
|
|
QC11Y-6X2500
|
6
|
2500
|
100
|
0.5°- 1°30'
|
20-600
|
≥12
|
7.5
|
|
QC11Y-6X3200
|
6
|
3200
|
100
|
0.5°- 1°30'
|
20-600
|
≥12
|
7.5
|
|
QC11Y-6X4000
|
6
|
4000
|
100
|
0.5°- 1°30'
|
20-600
|
≥10
|
7.5
|
|
QC11Y-6X5000
|
6
|
5000
|
100
|
0.5°- 1°30'
|
20-600
|
≥7
|
7.5
|
|
QC11Y-6X6000
|
6
|
6000
|
100
|
0.5°- 1°30'
|
20-600
|
≥6
|
11
|
|
QC11Y-8X2500
|
8
|
2500
|
100
|
0.5°- 2°
|
20-600
|
≥11
|
11
|
|
QC11Y-8X3200
|
8
|
3200
|
100
|
0.5°- 2°
|
20-600
|
≥10
|
11
|
|
QC11Y-8X4000
|
8
|
4000
|
100
|
0.5°- 2°
|
20-600
|
≥8
|
11
|
|
QC11Y-8X5000
|
8
|
5000
|
100
|
0.5°- 2°
|
20-800
|
≥7
|
11
|
|
QC11Y-8X6000
|
8
|
6000
|
100
|
0.5°- 2°
|
20-800
|
≥6
|
18.5
|
|
QC11Y-12X2500
|
12
|
2500
|
150
|
0.5°- 2°30'
|
20-800
|
≥6
|
18.5
|
|
QC11Y-12X3200
|
12
|
3200
|
150
|
0.5°- 2°30'
|
20-800
|
≥5
|
18.5
|
