Quick Details
-
Dimension(L*W*H):
-
L805*W640*H750mm
-
Weight:
-
120kg
-
Product name:
-
Desktop Fluid Glue Dispenser
-
X/Y/Z Working Range:
-
X300mm*Y300mm*Z100mm
-
XY/Z speed:
-
Max:800/500 (mm/s)
-
Workpiece Payload:
-
Y axis16kgs /Z axis 8kgs
-
Motion /Drive System:
-
Servo Motor, Ball Screw, Linear Slide
-
Repeatability Accuracy:
-
±0.015mm/Axis
-
Positioning:
-
300,000 Resolution CCD Vision Camera
-
Memory Capacity:
-
1000 Programs - Unlimited (Data Storage via USB)
-
Control Method:
-
Industrial Computer + Motion Controller + LCD Display
-
Patterns:
-
Dots, Line, Potting, Filling, Encapsulation, Sealing, Coating, Jetting
-
Marketing Type:
-
Hot Product 2021
-
Certification:
-
CE ISO9001
Quick Details
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KINTAI
-
Dimension(L*W*H):
-
L805*W640*H750mm
-
Weight:
-
120kg
-
Product name:
-
Desktop Fluid Glue Dispenser
-
X/Y/Z Working Range:
-
X300mm*Y300mm*Z100mm
-
XY/Z speed:
-
Max:800/500 (mm/s)
-
Workpiece Payload:
-
Y axis16kgs /Z axis 8kgs
-
Motion /Drive System:
-
Servo Motor, Ball Screw, Linear Slide
-
Repeatability Accuracy:
-
±0.015mm/Axis
-
Positioning:
-
300,000 Resolution CCD Vision Camera
-
Memory Capacity:
-
1000 Programs - Unlimited (Data Storage via USB)
-
Control Method:
-
Industrial Computer + Motion Controller + LCD Display
-
Patterns:
-
Dots, Line, Potting, Filling, Encapsulation, Sealing, Coating, Jetting
-
Marketing Type:
-
Hot Product 2021
-
Certification:
-
CE ISO9001
Products Description

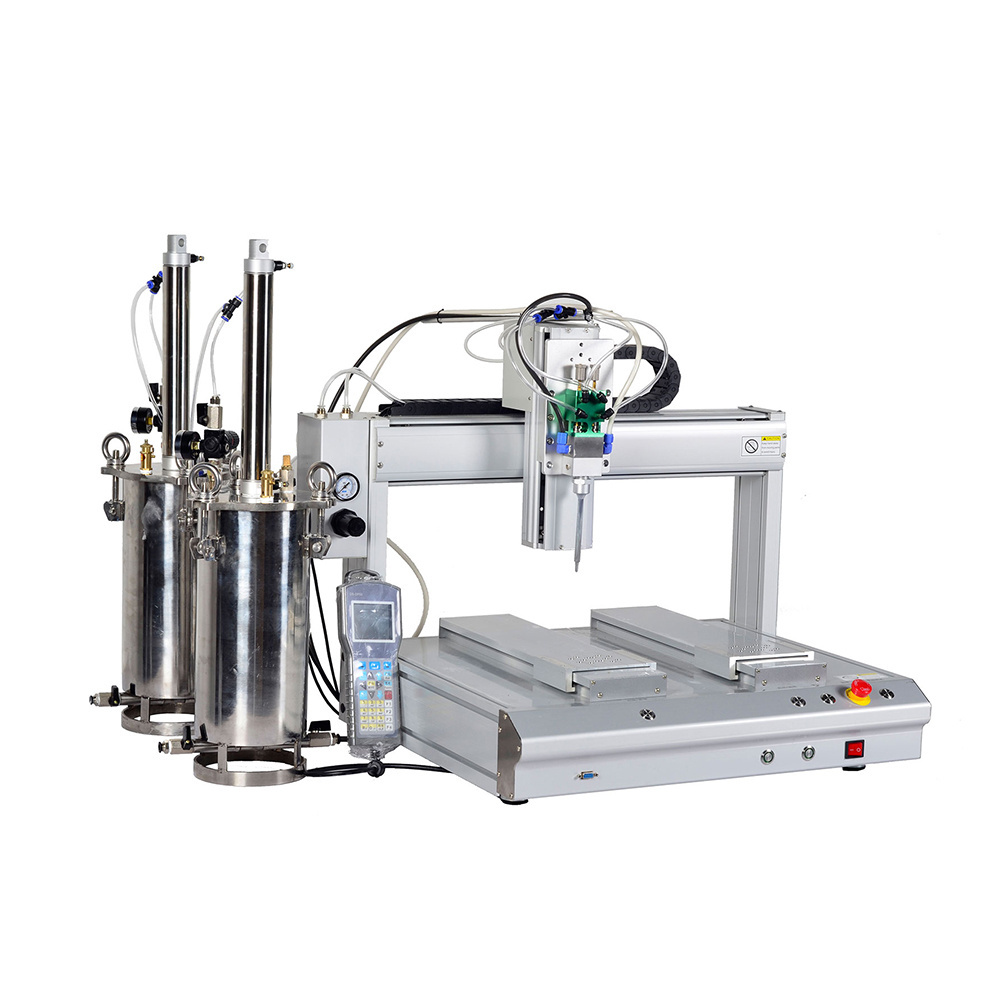

KTS-400 Bench Top Fluid Dispensing Robot
Features:
1. Can dispense on inner/outer/vertical/curved/small gap surface;
2. Its fourth axis allows for dispensing at any angle along the 360°rotation plane. With custom dispensing software, it’s easy to set up and program the system for dispensing applications in less time;
3. True 3D motion control simplifies programming of dots, lines, circles, arcs, compound arcs, and patterns on different planes. Simultaneous X and Y movement during R rotation with interpolation functions;
4. Built-in tip recalibration sequence for easy dispense tip change alignment. L shape dispense vertically;
5. Material volume, speed, time, pulse time adjustable;
6. Automatic anti-curing function avoid needle clogging and dripping;
Products Parameters
|
MODEL
|
T5D Glue Dispensing Machine
|
|
|
|
|||
|
Repeatability Accuracy
|
±0.02mm/Axis
|
|
|
|
|||
|
X/Y/Z Working Range
|
X300mm * Y300mm * Z100mm or X500mm * Y1 300mm Y2 300mm* Z100mm
|
|
|
|
|||
|
XY/Z Speed
|
1~500/350(mm/sec)
|
|
|
|
|||
|
Drive system
|
Precision stepping motor
|
|
|
|
|||
|
Transmission
|
Timing belt/precision linear guides
|
|
|
|
|||
|
Storage of Teaching files
|
at least 100 group, each group 4000 points
|
|
|
|
|||
|
Material Supply(customized)
|
Glue Tank(2600ml optional)
5cc/10cc/30cc/50cc Cartridge(optional)
30cc syringe
|
|
|
|
|||
|
Laser Height Measurement
|
Automatic Laser Height (precision:0.001mm) Detection & Z Axis Height Calibration Optional
|
|
|
|
|||
|
Power Supply
|
AC 110/220V, 50/60Hz, 1Kw
|
|
|
|
|||
|
Air Pressure
|
0.5-0.7Mpa, 0.2m²/h
|
|
|
|
|||
|
CAD Impot
|
DXF Format
|
|
|
|
|||
|
Low Fluid Sensor/Warning
|
Optional
|
|
|
|
|||
|
Memory Capacity
|
1000 Programs - Unlimited (Data Storage via USB)
|
|
|
|
|||
