Quick Details
-
Max. Loading Capacity:
-
50-5000L
-
Weight (KG):
-
100 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KEDUN
-
Voltage:
-
220V or 380V
-
Dimension(L*W*H):
-
1300*820*1400mm
-
Power (kW):
-
1.5 kW
-
Core Components:
-
homogenizer
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Flow rate:
-
1-150 m3/h
-
Connection::
-
Clamp, Thread, Welded, Flange
-
Motor::
-
ABB/domestic
-
Type:
-
SS316L Emulsifier Pump
-
Function:
-
Emulsion
-
Application scope:
-
Food
-
Certificate:
-
CE,3A,ISO9001
-
Connection:
-
Clamp,Weld,Union,etc.
Quick Details
-
Barrel Volume (L):
-
6000
-
Max. Loading Volume (L):
-
5500 L
-
Range of Spindle Speed(r.p.m):
-
1 - 2800 r.p.m
-
Max. Loading Capacity:
-
50-5000L
-
Weight (KG):
-
100 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KEDUN
-
Voltage:
-
220V or 380V
-
Dimension(L*W*H):
-
1300*820*1400mm
-
Power (kW):
-
1.5 kW
-
Core Components:
-
homogenizer
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Flow rate:
-
1-150 m3/h
-
Connection::
-
Clamp, Thread, Welded, Flange
-
Motor::
-
ABB/domestic
-
Type:
-
SS316L Emulsifier Pump
-
Function:
-
Emulsion
-
Application scope:
-
Food
-
Certificate:
-
CE,3A,ISO9001
-
Connection:
-
Clamp,Weld,Union,etc.

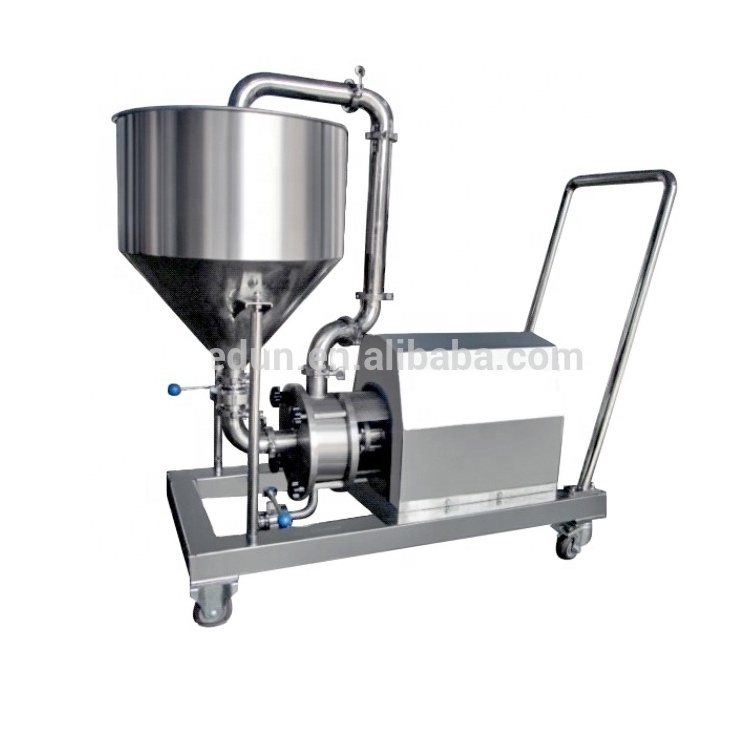

Large Industrial Food Emulsifier SS304 SS316L Pump Machi ne Mixer
Pipeline high shear dispersing emulsifier is a high performance equipment used
for continuous production or circulated treatment of fine material. In the small chamber,
there are 1-3 sets of paired of andclutched stators and rotor.
Driven by motor,the rotor revolve quickly and produces a strong axial suctionforce
which intakes the material to the chamber.The machine disperses,shears and emulsifies
the material in shortest time,and the diameter range of the particles gets smaller so that
fine and stable products are peoduced.
| Name: | Large Industrial Food Emulsifier SS304 SS316L Pump Machine Mixer |
| Material: | 304 ,316 |
| Power | 1.5KW-132KW |
| Connection: | C lamp, Welded, Thread, Flange |
| Packing: | Plywood , customized |
| Motor: | ABB,Domestic motor |
| MOQ: | 1 set |
| Max. Loading Capacity: | 50-5000L |
|
Packaging Details:
|
As per the request of customers
|
|
Delivery details:
|
Uaually within 20 days after receiving T/T down payment
|
Process flow diagram
Structure diagram
1. Stator 2.Screw cap 3.Flexible gasket 4.Flat gasket 5.Rotor 6.Pump cavity
7. Mechanical seal (stationary ring) 8.Mechanical seal (moving ring)
9.Mechanical seal (stationary ring) 10.Seal cool seat 11.Pump seat 12.Pin
13.Pump shaft 14.Motor 15.Support 16.Frame
Usually need 30% deposit, and pay the 70% balance before delivery.Also can paid by trade assurance.
Shipping: Shipped in 7-15 days after payment.(Depends on the order quantity).
Packing: Usually plywood case (As per the request of customers)
1.Q:What is your packing?
A: We usually packing in plywood case.
2.Q:How long is the service time?
A:It could use several year without external force factors.
3.Q:Do you have warranty?
A:We have 1-2 years warranty.
4.Q:What is the MOQ?
A:The majority of products are fully in stock,we accept 1 pieces as the minimum order quantity.
5.Q:What is the payment terms?
A:We accept T/T and L/C,also can using trade assurance .
6.Q:How to choose the shipment way?
A:It is according to the order quantity,delivery time,costs and customs policy,etc.(Or decide by customs).
7.Q:How about the surface finishing?
A:Machine finished,matt and mirror polished,it will be confirmed by customer’s requirement.
