Quick Details
-
Brand Name:
-
Leadcrete
-
Working Type:
-
Walk-behind Type
-
Work Speed:
-
2-3m/min
-
Work Mold:
-
As per customer's requirement.
-
Lubricant L:
-
1.12L
-
Fuel Tank Volume:
-
6.5L
-
Power:
-
13Hp/3600rpm
-
Fuel Consumption:
-
313g/kWh
-
Machine Size:
-
2170*1180*970mm
-
Package Size:
-
2300*1040*1200mm
-
Weight:
-
690kg
Quick Details
-
Weight (KG):
-
690
-
Core Components:
-
/
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Leadcrete
-
Working Type:
-
Walk-behind Type
-
Work Speed:
-
2-3m/min
-
Work Mold:
-
As per customer's requirement.
-
Lubricant L:
-
1.12L
-
Fuel Tank Volume:
-
6.5L
-
Power:
-
13Hp/3600rpm
-
Fuel Consumption:
-
313g/kWh
-
Machine Size:
-
2170*1180*970mm
-
Package Size:
-
2300*1040*1200mm
-
Weight:
-
690kg
Product Description

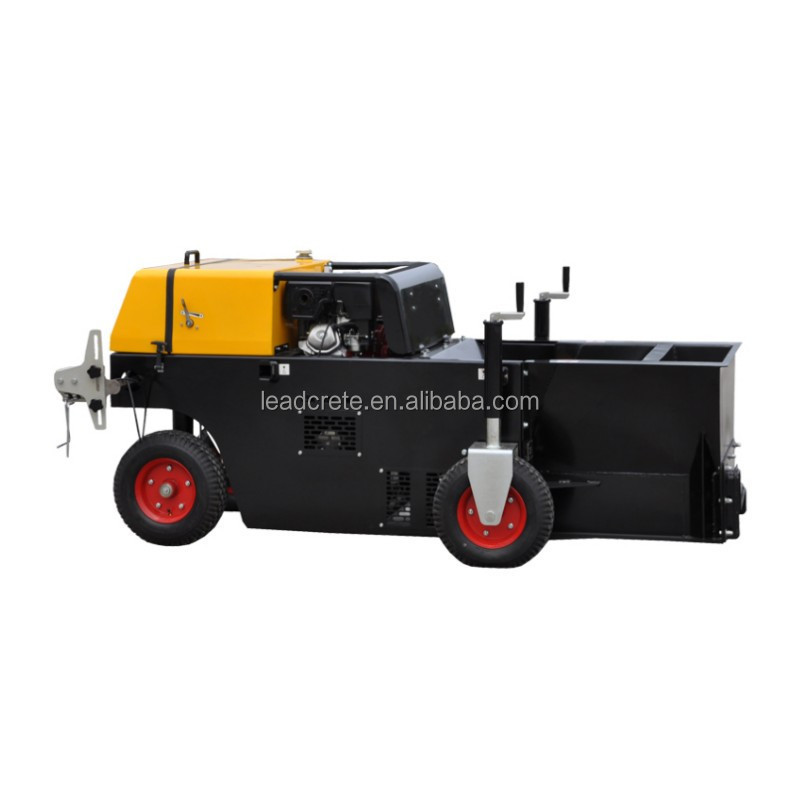

LDHM21 Automatic Curb Machine is a new kind of curb machine, hammer feeding, with manual and automatic control system.
It is a high-tech machinery, integrative technique of mechanics-electronics-hydraulics, with advanced sensors, the machine itself can adjust the level and straight, makes the construction easily. Molds can dismantle and change in order to meet the construction requirements.
LDHM21 concrete curb machine advantages:
1. with domestic and oversea famous diesel or petrol engine.
2. Import high precision hydraulic valve, compact and saving energy.
3. Import automatically walk precision sensor, error is less than 1mm.
4. With a electronic lever sensor, automatically balance from left and right, water lever back-up observing.
5. Import high protective rank control button.
6.We can customize kinds of specification molds.
Technical parameters
|
Model
|
LDHM21
|
|
|
working
|
|
|
|
Working Type
|
Walk-behind Type
|
|
|
Work Speed
|
2-3m/min
|
|
|
Work Mold
|
As per customer’s requirement.
|
|
|
Engine
|
|
|
|
Gasoline Model
|
HONDA GX390(Briggs & Stratton engine 25T2)
|
|
|
Gasoline Type Gasoline engine
|
Gasoline engine, air cooling, 4 stroke, OHV, single cylinder.
|
|
|
Power
|
13Hp/3600rpm
|
|
|
Fuel Tank Volume
|
6.5L
|
|
|
Lubricant L
|
1.12 L(1.1L)
|
|
|
Fuel Consumption
|
313g/kWh
|
|
|
Machine Size
|
2170*1180*970mm
|
|
|
Package Size 1
|
2300*1040*1200mm
|
|
|
weight
|
690kgs
|
|
|
Gasoline Model Engine also provide HONDA GX390, Briggs & Stratton engine 25T2,Changchai 186F for choosing!
|
|
|
Product Show
Product Details
Import High protection grade control button
import hydraulic valve
import sensor
LDHM21 Molds Drawings
Application
LDHM21 concrete curb machine adopts a mechanized construction method, which can quickly and accurately complete the pouring and compaction of curb stones, greatly saving construction time, and has been widely used in road construction.
