Quick Details
-
Type:
-
TIMING BELT
-
Material:
-
Rubber
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
sihai
-
BRAND:
-
SIHAI
-
MATERIAL:
-
NATURE RUBBER
-
COLOR:
-
RED
-
Product name:
-
Vbelt
-
Application:
-
Equipment
-
Feature:
-
Durability
-
Advantage:
-
Custom-made Based
-
Payment:
-
T/T
-
Size:
-
Customized Size
-
Model:
-
A B C D E
Quick Details
-
Warranty:
-
3 years
-
Applicable Industries:
-
Garment Shops, Building Material Shops, Machinery Repair Shops
-
Standard or Nonstandard:
-
Standard
-
Type:
-
TIMING BELT
-
Material:
-
Rubber
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
sihai
-
BRAND:
-
SIHAI
-
MATERIAL:
-
NATURE RUBBER
-
COLOR:
-
RED
-
Product name:
-
Vbelt
-
Application:
-
Equipment
-
Feature:
-
Durability
-
Advantage:
-
Custom-made Based
-
Payment:
-
T/T
-
Size:
-
Customized Size
-
Model:
-
A B C D E
Product Details

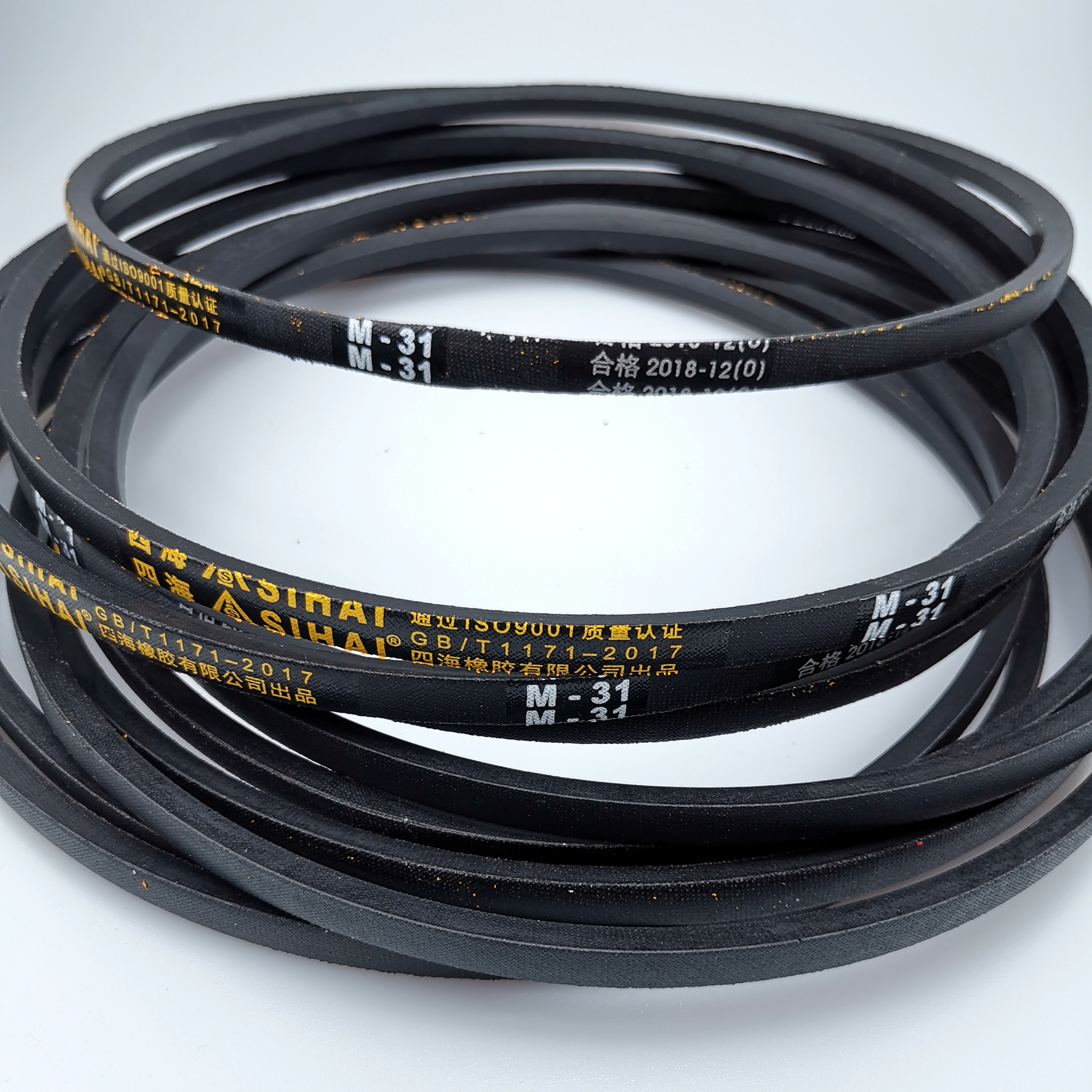

Product Name : v-belt, wrapped v-belt, rubber v-belt
Structure :V-belt is made up of Fabric, Tension Member, Insulation Section and compression layer.
Using: Classical V-belt is used widely in power transmission of mechanical equipments driven by electric motors and diesel engines.
Features:
1.High tensile strength and low elongation using our specially treated polyester cord.
2.Maximum adhesion between the tension members and the insulation section of the belt.
3.Excellent flexibility.
4.Oil & heat resistance,static conductivity.
5.Uniform quality and true dimensional stability through modem production facilities.
6.Longer belt life.
7.No slip/constant grip
Size:
|
Production Type
|
Top Width
|
Pitch Width
|
Height
|
Angle
|
|
O(Z)
|
10
|
8.5
|
6
|
40°
|
|
A
|
13
|
11.0
|
8
|
40°
|
|
B
|
17
|
14.0
|
11
|
40°
|
|
C
|
22
|
19.0
|
14
|
40°
|
|
D
|
32
|
27.0
|
19
|
40°
|
|
E
|
38
|
32.0
|
23
|
40°
|
|
Production Type
|
Top Width
|
Height
|
Angle
|
|
HAA
|
13
|
6
|
40°
|
|
HBB
|
17
|
8
|
40°
|
|
HCC
|
22
|
11
|
40°
|
|
Production Type
|
Top Width
|
Height
|
Angle
|
|
AJ
|
13.6
|
10
|
40°
|
|
BJ
|
17.0
|
13
|
40°
|
|
CJ
|
22.4
|
16
|
40°
|
|
DJ
|
32.8
|
21.5
|
40°
|
|
Type
|
Tensile-Strength
KN ≥ |
Reference Force Extension
%≤ |
Adhesive Strength Of The Cord (KN/m)≥
|
Adhesive Strength Between Cloth And TopRubber(KN/m)≥
|
|
Z
|
2.0
|
7.0
|
13.0
|
_
|
|
A
|
3.0
|
|
17.0
|
|
|
B
|
5.0
|
|
21.0
|
2.0
|
|
C
|
9.0
|
|
31.0
|
|
|
D
|
15.0
|
|
31.0
|
|
|
E
|
20.0
|
|
31.0
|
|
