Quick Details
-
Place of Origin:
-
Guangdong, China
-
Connector Type:
-
LC/SC/FC/ST/MU
-
Adaptor Type:
-
LC/SC/FC/ST/MU
-
Transfer Mode:
-
SM/MM
-
Attenuation:
-
1dB~30dB
-
Application:
-
Telecommunication
-
Operating Wavelength(nm):
-
1260~1620(SM)
-
Connector Gender:
-
Fixed male to Female
-
Attenuation Accuracy:
-
1-9dB ±0.5, 10-25dB ±10%
-
Humidity:
-
95%RH
-
Product Name:
-
Fiber Optic Attenuator
Quick Details
-
Brand Name:
-
Skylynn
-
Type:
-
fiber optic attenuator
-
Model Number:
-
LC/UPC
-
Place of Origin:
-
Guangdong, China
-
Connector Type:
-
LC/SC/FC/ST/MU
-
Adaptor Type:
-
LC/SC/FC/ST/MU
-
Transfer Mode:
-
SM/MM
-
Attenuation:
-
1dB~30dB
-
Application:
-
Telecommunication
-
Operating Wavelength(nm):
-
1260~1620(SM)
-
Connector Gender:
-
Fixed male to Female
-
Attenuation Accuracy:
-
1-9dB ±0.5, 10-25dB ±10%
-
Humidity:
-
95%RH
-
Product Name:
-
Fiber Optic Attenuator

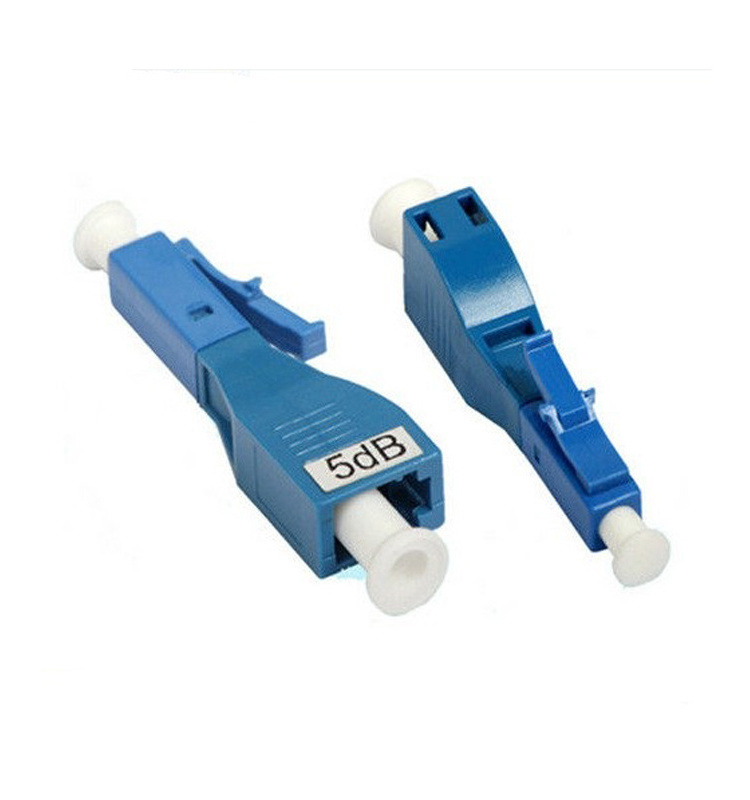

High Quality Fiber Optic Attenuator LC UPC 1dB 30dB Fixed Variable Attenuator
Fiber optic attenuators are used for reducing the power of the light in the fiber optic network. fiber optic attenuator or male to female which is also called a plug fiber optic attenuator.
Fiber optic attenuators can be designed to use with various kinds of fiber optic connectors. the attenuators can be female to female which is called bulkhead. fiber optic attenuator or male to female which is also called a plug fiber optic attenuator. All attenuators are available in multiple dB increments and wavelengths Working wavelength 1310nm or 1550nm .
Features :
Plug-on type package.
Accurate attenuation.
Ultra low back reflection.
Available with SC, FC, LC an MU packages.
Flat response over all wavelengths.
Environmentally stable.
Quick delivery.
Applications :
Telecommunication networks.
Fiber optic sensors.
Test and measurement.
CATV.
LAN and WAN.
FTTx.
Specification:
| Attenuator Type | SC/UPC, SC/APC ,LC/UPC,LC/APC, FC/UPC, FC/APC ,ST |
| Reflection Attenuator (dB) | UPC>55dB ; APC> 65dB |
| Operating Temperature | -40~80°C |
| Storage Temperature | -40~85°C |
| Max Optical Input Powerhs (nm)hs (nm) | 200mW |
| According to Telcordia GR 910 | |
