Quick Details
-
Rolling thinckness:
-
0.8-1.5mm
-
Use:
-
door
-
Place of Origin:
-
Hubei, China
-
Voltage:
-
380V 50HZ 3P or customized as customer
-
Dimension(L*W*H):
-
4500*800*1000mm
-
Weight:
-
1.5 kg
-
Feeding width:
-
As customer need size
-
Marketing Type:
-
New Product 2022
-
Export port:
-
Tianjin port
-
HS Code:
-
845522
-
Need container:
-
half of 20 feet container
-
Machine color:
-
Cusotmized
-
Control box language:
-
English and Chinese or add customer request language
-
Machine cutter material:
-
CR12
-
Length and piece measure:
-
by counter
-
Control system:
-
PLC Control
-
After sale service:
-
Whole life
Quick Details
-
Type:
-
Roll forming machine
-
Tile Type:
-
galvanized steel
-
Production Capacity:
-
10-20m/min
-
Rolling thinckness:
-
0.8-1.5mm
-
Use:
-
door
-
Place of Origin:
-
Hubei, China
-
Voltage:
-
380V 50HZ 3P or customized as customer
-
Dimension(L*W*H):
-
4500*800*1000mm
-
Weight:
-
1.5 kg
-
Feeding width:
-
As customer need size
-
Marketing Type:
-
New Product 2022
-
Export port:
-
Tianjin port
-
HS Code:
-
845522
-
Need container:
-
half of 20 feet container
-
Machine color:
-
Cusotmized
-
Control box language:
-
English and Chinese or add customer request language
-
Machine cutter material:
-
CR12
-
Length and piece measure:
-
by counter
-
Control system:
-
PLC Control
-
After sale service:
-
Whole life
Perforated shutter door roll forming machine | Rolling shutter machine with punching holes | Shutter strip roll forming machine with punching | Perforated Shutter patti roll forming machine | Slat door roll forming machine with punching
Perforated shutter door roll forming machine popular sell in many countries. We ship shutter door roll forming machine all over the world like India, Thailand, Russia, Algeria, Qatar, Morocco, Saudi Arabia, Oman etc. Product thickness common between 0.8-1.2mm, material use PPGI or GI.Machine work speed reach 10-20 m/min.
Product Drawing
Product Show

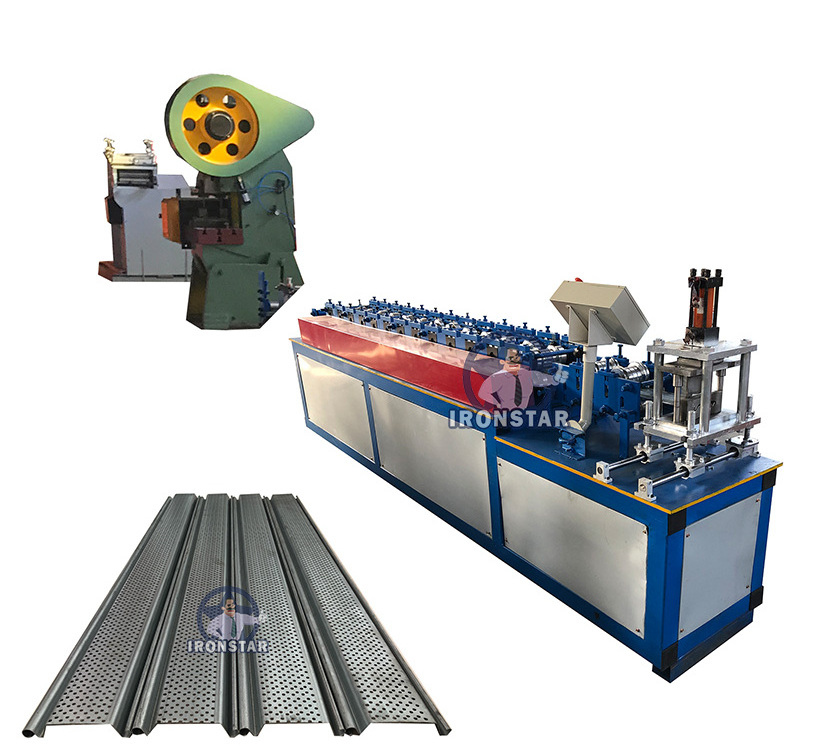

Perforated shutter door roll forming machine show
Working flow
Decoiler-roll forming machine -PLC control box-hydraulic cutter-Run out table
| Part Details | Item Name | Specification |
| Material | Raw Material | Galvanized steel |
| Thickness | 0.8-1.2 mm | |
| Puncher offline | Capacity | 25 tons, automatic |
| Size | About 1.5*1*1.5m | |
| Machine | Roller Station | 14 |
| Shaft Material | 55 mm | |
| Shaft Material | 45# steel with 0.05mm chrome | |
| Roller Material | CR12 | |
| Machine Size | About 4.5*0.8*1.3m | |
| Machine Weight | About 1.5 ton | |
| Machine Color | As customer request | |
| Working Speed | 10-20 m/min | |
| Cutter | Hardness | 50-65 HRC |
| Cutting Tolerance | ± 1mm | |
| Material | CR12 | |
| Operate | Hydraulic cutting | |
| Power | Driving Way | Chain 1 inch |
| Main Power | 5.5 KW | |
| Pump Power | 3 KW | |
| Voltage |
380v 50hz 3P, or Customize as Customer' request |
|
| Control System | PLC Brand |
Delta made in Taiwan |
| Screen |
Touchable Screen |
|
| Language |
Chinese, English or Add customer' need |
|
| Decoiler | Operation |
Automatic type
|
| Weight Capacity |
3 ton |
|
| Price |
Free when buy machine
|
|
| Receiving Table | Operation |
Manual |
| Length |
3m |
|
| Price |
Free as gift |
If you want to see machine working video, Please contact with Miaomiao with any way below
Customer common choose some machines together:
Shutter door roll forming machine / Flower shutter door roll forming machine
Perforated shutter door roll forming machine / Hole punching shutter door roll forming machine
PU shutter door roll forming machine
Door frame roll forming machine
C guide rail roll forming machine / U guide rail roll forming machine
