Quick Details
-
Number of Row:
-
Single row
-
Bore Size:
-
17 - 17.01 mm
-
Brand Name:
-
PRDB
-
Model Number:
-
NKIA5903-XL
-
Place of Origin:
-
Shandong, China
-
Size:
-
17*30*18mm
-
Weight:
-
0.056kg
-
Material:
-
Chrome Steel GCr15
-
Certificate:
-
ISO9001:2008, RoHS, CE
-
Application:
-
Gear Motor
-
Service:
-
OEM Customized Services
-
Cage:
-
Steel Cage.Brass Cage.Nylon Cage
-
Feature:
-
Long Life, durable, low vibration, heavy loading duty
-
Main Market:
-
Global
-
Hardness:
-
HRC60-65
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company, Other
-
Precision Rating:
-
P2 P5 P0 P4 P6
-
Seals Type:
-
Open
-
Number of Row:
-
Single row
-
Bore Size:
-
17 - 17.01 mm
-
Brand Name:
-
PRDB
-
Model Number:
-
NKIA5903-XL
-
Place of Origin:
-
Shandong, China
-
Size:
-
17*30*18mm
-
Weight:
-
0.056kg
-
Material:
-
Chrome Steel GCr15
-
Certificate:
-
ISO9001:2008, RoHS, CE
-
Application:
-
Gear Motor
-
Service:
-
OEM Customized Services
-
Cage:
-
Steel Cage.Brass Cage.Nylon Cage
-
Feature:
-
Long Life, durable, low vibration, heavy loading duty
-
Main Market:
-
Global
-
Hardness:
-
HRC60-65

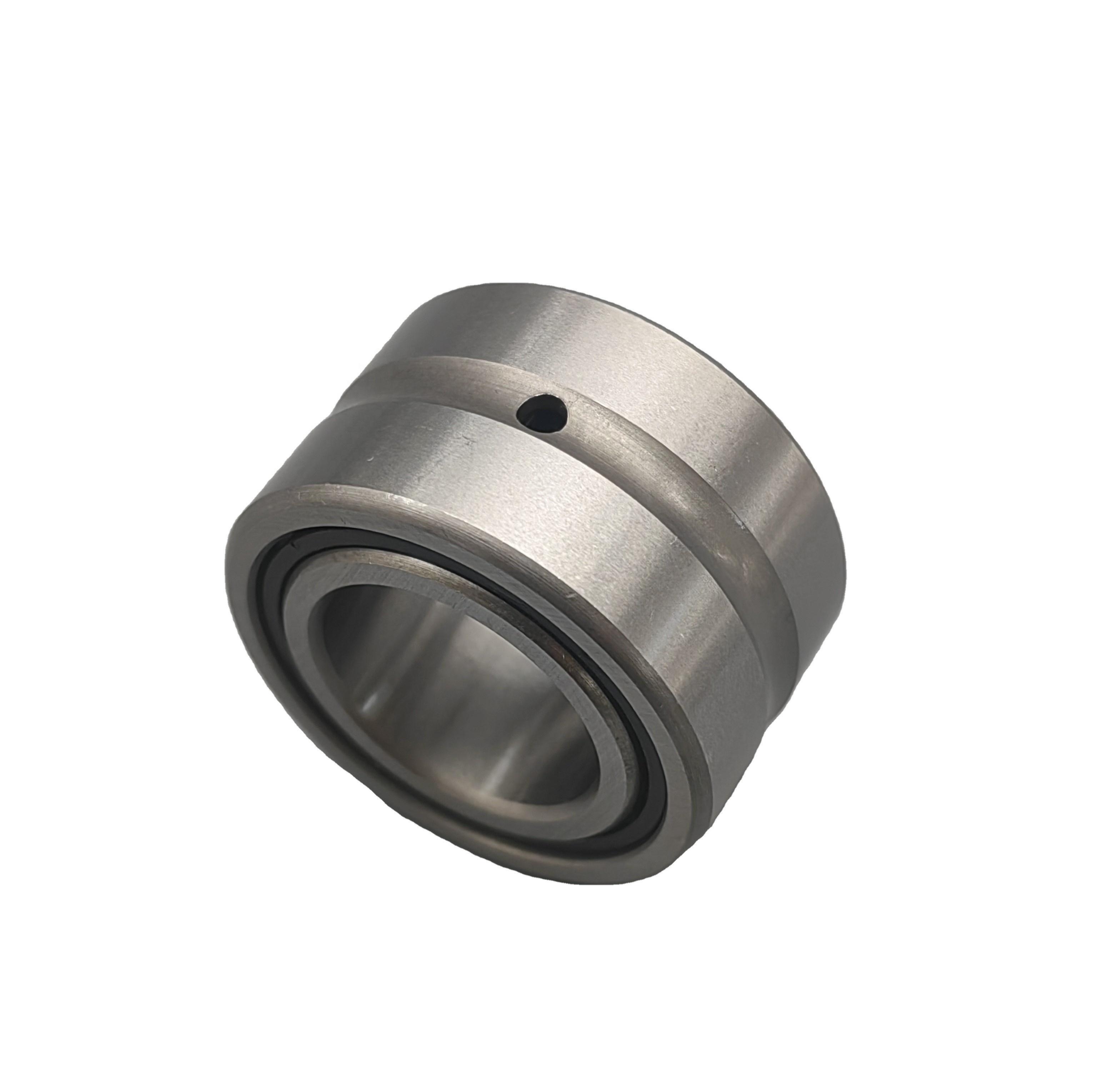

Hot Selling Quality Angular Contact Ball Bearing Combined Needle Roller Bearing NKIA5903-XL
Product Description
Product Description
Inch style
needle roller bearings
provide a large load rating in a small space and can be used with or without inner rings. They are available in caged or full complement style. The full complement style is best suited for low speed or oscillating motion while the caged type is better for high speed applications. Load ratings are higher for full complement style bearings. For fitting accuracy the caged type is advantageous when fitting errors and shaft bending are relatively large. They are available with open or Closed ends.
1. The needle roller bearing with or without inner ring is a complete unit consisting of a machined outer ring, a needle roller and cage assembly and a separable inner ring.
2. Due to the small section height, it has a space-saving structure;
3. The outer ring has a lubricating oil groove and lubricating hole.
4. Needle roller bearings with inner rings are used in applications where the shaft cannot be used as a needle roller bearing raceway.
5. Needle roller bearings with inner ring are used in applications where bearings without inner ring cannot be used, or applications where hardened or ground shafts are uneconomical. Bearings with inner rings only allow axial displacement of the shaft relative to the bearing seat within a certain range. If the allowable axial displacement provided by a standard inner ring is not enough, a widened inner ring can be used.
Benefits for Bearing
1. The sensitivity of bearing deformation to load changes is less than that of hydrodynamic bearings;
2. Only a small part of the normal operation requires a certain amount of lubricating oil, which can provide lubricating oil for a long time during the operation;
3. The axial dimension is smaller than the traditional dynamic pressure bearing; it can bear the combined load of radial and thrust at the same time;
4. In the range of large load speed, the unique design can obtain excellent performance; bearing performance is relatively insensitive to fluctuations in load, speed and operating speed.
Specification
|
Part No & Size
|
Needle Roller Bearing NKIA5903-XL
|
|
Part Name
|
ROLLER BEARING
|
|
Quality
|
ORIGINAL
|
|
Place of Origin
|
CHINA
|
|
Adaptable Automobile Mode
|
AvaILBLE
|
|
Packing&Shipping
|
STANDARD PACKING
|
|
Warranty
|
12 MONTHS
|
|
Certification
|
ISO9001:2008
|
|
MOQ
|
1 PCS
|
|
Delivery Time
|
1-3 DAYS
|
|
Payment
|
L/C,T/T,Western Union,PayPal,etc
|
|
FOB Port
|
Qingdao,Tianjin,Shanghai etc
|
|
Shipping Ways
|
DHL,TNT,EMS,FEDEX,UPS.
|
|
Selling Units
|
Single item
|
|
Single Unit Size
|
Needle Roller Bearing NKIA5903-XL (17*30*18)
|
|
Single Gross Weight
|
Needle Roller Bearing NKIA5903-XL(0.056kg)
|
|
Package Type
|
neutral packing carton for BEARING
|
|
Model NO.
|
Dimension (mm)
|
|
|
|
Mass
|
|||
|
|
d
|
F
|
D
|
B
|
(g)
|
|||
|
NKIA 5901
|
12
|
16
|
24
|
16
|
40
|
|||
|
NKIA 5902
|
15
|
20
|
28
|
18
|
50
|
|||
|
NKIA 5903
|
17
|
22
|
30
|
18
|
56
|
|||
|
NKIA 5904
|
20
|
25
|
37
|
23
|
103
|
|||
|
NKIA 59/22
|
22
|
28
|
39
|
23
|
118
|
|||
|
NKIA 5905
|
25
|
30
|
42
|
23
|
130
|
|||
|
NKIA 5906
|
30
|
35
|
47
|
23
|
147
|
|||
|
NKIA 5907
|
35
|
42
|
55
|
27
|
243
|
|||
|
NKIA 5908
|
40
|
48
|
62
|
30
|
315
|
|||
|
NKIA 5909
|
45
|
52
|
68
|
30
|
375
|
|||
|
NKIA 5910
|
50
|
58
|
72
|
30
|
380
|
|||
|
NKIA 5911
|
55
|
63
|
80
|
34
|
550
|
|||
|
NKIA 5912
|
60
|
68
|
85
|
34
|
590
|
|||
|
NKIA 5913
|
65
|
72
|
90
|
34
|
635
|
|||
|
NKIA 5914
|
70
|
80
|
100
|
40
|
980
|
|||
|
NKIB 5901
|
12
|
16
|
24
|
16
|
43
|
|||
|
NKIB 5902
|
15
|
20
|
28
|
18
|
52
|
|||
|
NKIB 5903
|
17
|
22
|
30
|
18
|
58
|
|||
|
NKIB 5904
|
20
|
25
|
37
|
23
|
107
|
|||
|
NKIB 59/22
|
22
|
28
|
39
|
23
|
122
|
|||
|
NKIB 5905
|
25
|
30
|
42
|
23
|
134
|
|||
|
NKIB 5906
|
30
|
35
|
47
|
23
|
151
|
|||
|
NKIB 5907
|
35
|
42
|
55
|
27
|
247
|
|||
|
NKIB 5908
|
40
|
48
|
62
|
30
|
320
|
|||
|
NKIB 5909
|
45
|
52
|
68
|
30
|
380
|
|||
|
NKIB 5910
|
50
|
58
|
72
|
30
|
385
|
|||
|
NKIB 5911
|
55
|
63
|
80
|
34
|
555
|
|||
|
NKIB 5912
|
60
|
68
|
85
|
34
|
595
|
|||
|
NKIB 5913
|
65
|
72
|
90
|
34
|
640
|
|||
|
NKIB 5914
|
70
|
80
|
100
|
40
|
985
|
|||
