Quick Details
-
Production Capacity:
-
high
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Superstar
-
Voltage:
-
AC220V/380V 50/60Hz
-
Dimension(L*W*H):
-
4000*1500*3100
-
Weight:
-
1900 kg
-
Marketing Type:
-
New Product 2023
-
Control System:
-
DSP A11E
-
X Working Area:
-
1300mm
-
Y Working Area:
-
2500mm
-
Z Working Area:
-
300mm
-
Spindle Power Motor:
-
HQD 5.5 KW water cooling spindle
-
Drive Motor:
-
Leadshine860 driver and step motor 450B
-
Working voltage:
-
AC220V/380V 50/60Hz
-
Guide rail:
-
25mm Square rail
-
N.W./G.W.:
-
1900KGS
-
Application:
-
Stone Marble Granite Quartz Sandstone
Quick Details
-
Type:
-
Stone Cutting Machine
-
Power:
-
5.5 KW
-
Cutting thickness (max):
-
40
-
Production Capacity:
-
high
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Superstar
-
Voltage:
-
AC220V/380V 50/60Hz
-
Dimension(L*W*H):
-
4000*1500*3100
-
Weight:
-
1900 kg
-
Marketing Type:
-
New Product 2023
-
Control System:
-
DSP A11E
-
X Working Area:
-
1300mm
-
Y Working Area:
-
2500mm
-
Z Working Area:
-
300mm
-
Spindle Power Motor:
-
HQD 5.5 KW water cooling spindle
-
Drive Motor:
-
Leadshine860 driver and step motor 450B
-
Working voltage:
-
AC220V/380V 50/60Hz
-
Guide rail:
-
25mm Square rail
-
N.W./G.W.:
-
1900KGS
-
Application:
-
Stone Marble Granite Quartz Sandstone
Product Description

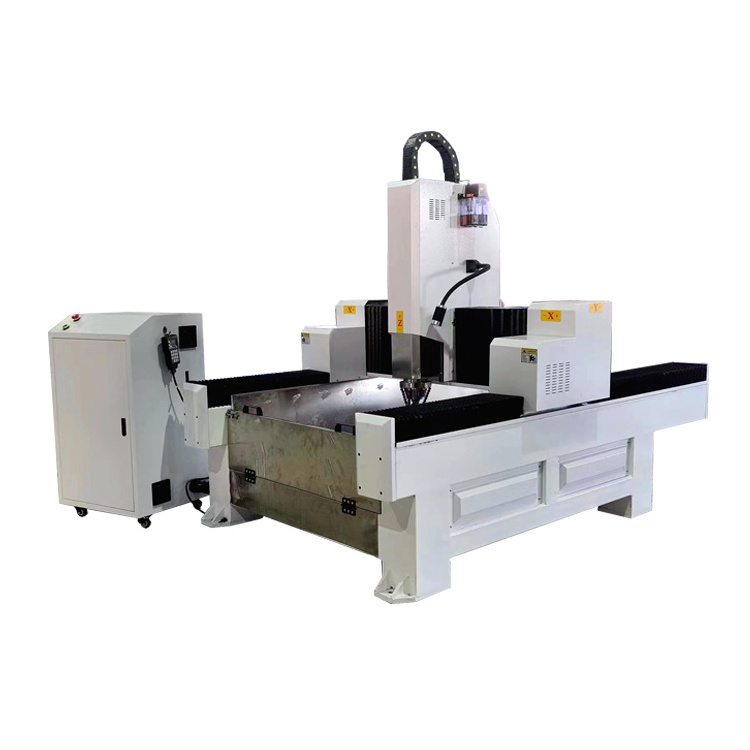

CNC Marble Machine Granti CUTTING Machine CNC Stone Carving Engraving Tombstone Machine 9015 1325
Superstar CNC Stone Machine Feature：
2, the bed is thickened steel pipe structure, the bearing force can reach more than one ton, strong and durable without deformation.
3, three axis dust-proof structure, effectively protect dust or water erosion guide rail and lead screw, improve the life of the machine tool.
4, high power 5.5kw water cooled spindle, imported bearing configuration, spindle noise is low, large power, long life.
5, dimension macro control, computer type independent cabinet, beautiful, easy to operate.
6, rack drive, high precision, long life.
7, equipped with a sink, two-way cooling tool, effectively improve the service life of the tool.
8, good software compatibility, compatible with Type3/Artcam/Castmate/ Wentai and other CAD/CAM design software.
|
Control System
|
DSP A11E
|
|
X Working Area
|
1300mm
|
|
Y Working Area
|
2500mm
|
|
Z Working Area
|
300mm
|
|
Traveling Positioning Accuracy
|
±0.05mm
|
|
Repositioning Positioning Accuracy
|
±0.05mm
|
|
Table Surface
|
Steel working table with water tank
|
|
Body structure
|
T types Steel structure
|
|
X,Y ,Z Structure
|
square guide rail for XYZ axis, gear wheel for XY axis, ball screw for Z axis
|
|
Max. Power Consumption(Without spindle)
|
1.84KW
|
|
Max. Rapid Travel Rate
|
25000mm/min
|
|
Max. Working Speed
|
15000mm/min
|
|
Spindle Power Motor
|
HQD 5.5 KW water cooling spindle
|
|
Spindle Speed
|
0-24000r/min
|
|
Drive Motor
|
Leadshine860 driver and step motor 450B
|
|
Command
|
G-code*.u00*.mmg*.plt
|
|
Inverter
|
EURA 5.5kw
|
|
Working voltage
|
AC220V/380V 50/60Hz
|
Detailed Images
Application:
Granite, marble, bluestone, sandstone, glass and other stone carving, granite and other hard stone can be carved to 3mm, marble, bluestone and other carving and cutting; Metal aluminum profiles, thin copper milling.
Service & Feedback
We are professional machinery manufacturer,we will provide good quality machines.
We provide technical support and operation training.
We have a complete after-sales service system in the process of using machines.
We have 20 years of R&D and production experience.
SUPERSTAR CNC is the leading CNC Router designer, manufacturer and exporter since 2003.
Over 500 professional staffs, 90,000 square meters factory.
Overseas warehouses and distributors more than 12 countries.
CE Certificate, OEM and ODM available.
