Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Solarvertech/OEM
-
Model Number:
-
NM150
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
145x80x50mm
-
Weight:
-
0.52KGS
-
Output waveform:
-
Modified Sine Wave inveter
-
Application:
-
Off-Grid Solar power systems
-
Warranty:
-
18 Months
-
Working Temperature:
-
0~+50℃
-
Soft Start:
-
3-5 Seconds
-
Remote Control:
-
optional
-
OEM/ODM:
-
Accepted
-
Color:
-
Black
-
Certificate:
-
CE/ROHS/E8/ETL/ISO9001
Quick Details
-
Output Current:
-
according to load
-
Network:
-
other
-
Customized support:
-
accept
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Solarvertech/OEM
-
Model Number:
-
NM150
-
Output Frequency:
-
50Hz/60Hz
-
Size:
-
145x80x50mm
-
Weight:
-
0.52KGS
-
Output waveform:
-
Modified Sine Wave inveter
-
Application:
-
Off-Grid Solar power systems
-
Warranty:
-
18 Months
-
Working Temperature:
-
0~+50℃
-
Soft Start:
-
3-5 Seconds
-
Remote Control:
-
optional
-
OEM/ODM:
-
Accepted
-
Color:
-
Black
-
Certificate:
-
CE/ROHS/E8/ETL/ISO9001
Recommend Products

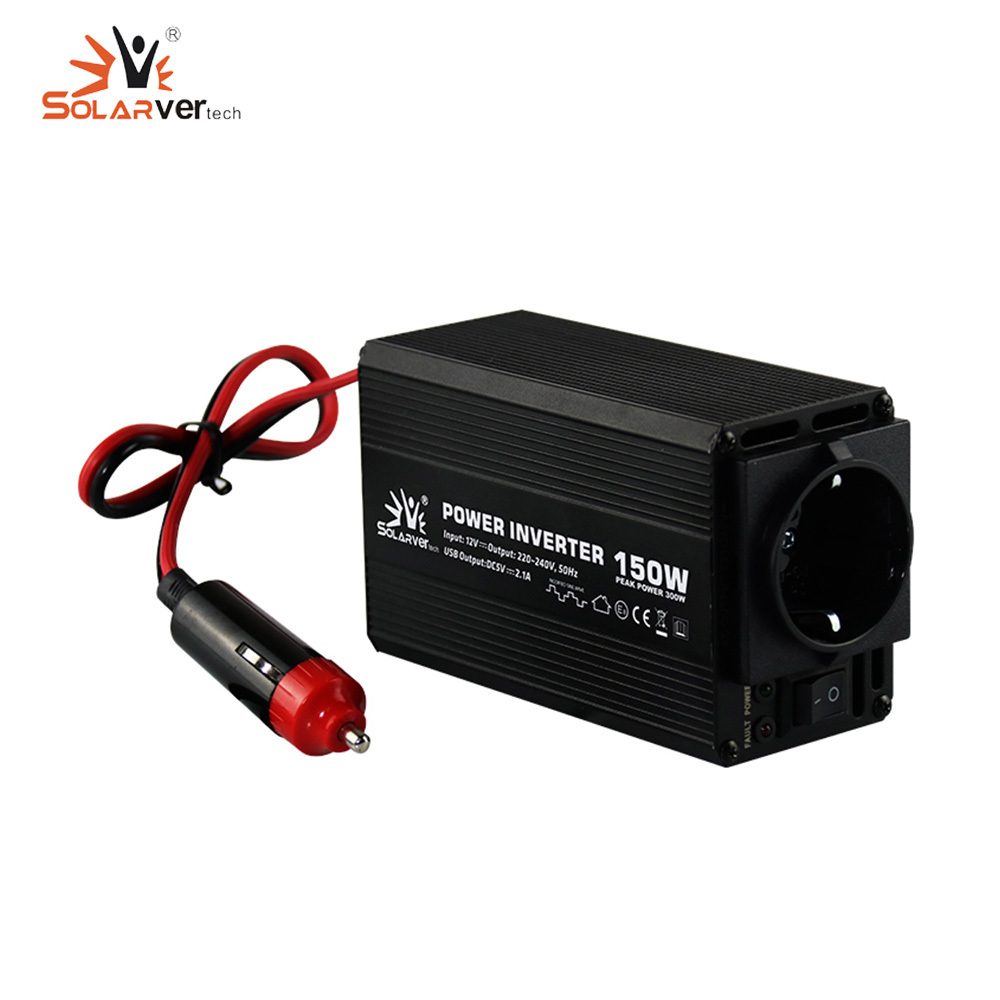

150W Car Inverter 12V 220V Car Power Inverter With Cigarette Lighter
Products Description
Technical Parameters
|
MODEL
|
|
NM150
|
NM300
|
NM500
|
NM1000
|
NM2000
|
NM3000
|
NM4000
|
NM5000
|
|||||||
|
Output
|
Ac Voltage
|
100/110/120V/220/230/240VAc
|
|
|
|
|
|
|
|
|||||||
|
|
Rated Power
|
150W
|
300W
|
500W
|
1000W
|
2000W
|
3000W
|
4000W
|
5000W
|
|||||||
|
|
Surge Power
|
300W
|
600W
|
1000W
|
2000W
|
4000W
|
4000W
|
8000W
|
10000W
|
|||||||
|
|
lWaveform
|
Modified Sine Wave(THD<3%)
|
|
|
|
|
|
|
|
|||||||
|
|
Frequency
|
50/60Hz 0.05%
|
|
|
|
|
|
|
|
|||||||
|
|
AC Regulation
|
士5% 士10%
|
|
|
|
|
|
|
|
|||||||
|
|
Power Factor Allowed
|
coso-9o°-cose+9o°
|
|
|
|
|
|
|
|
|||||||
|
|
Standard Receptacles
|
USABritish/Franch/Schuko/UK/Australia/Universal etc. optional
|
|
|
|
|
|
|
|
|||||||
|
|
LED Indicator
|
Green for power on, red for faulty status
|
|
|
|
|
|
|
|
|||||||
|
|
uSB port
|
5V 2.1A
|
|
|
|
|
|
|
|
|||||||
|
|
Efficiency(Typ.)
|
89%~94%
|
|
|
|
|
|
|
|
|||||||
|
|
over Load
|
Shut down output voltage , restart to recover
|
|
|
|
|
|
|
|
|||||||
|
|
over Temperature
|
Shut down output voltage , recover automatically after temperature goes down
|
|
|
|
|
|
|
|
|||||||
|
|
Output Short
|
Shut down output voltage , restart to recover
|
|
|
|
|
|
|
|
|||||||
|
|
Dc input Reverse Polarity
|
By fuse
|
|
|
|
|
|
|
|
|||||||
|
|
Earth Fault
|
Shut off o/p when the load has electrical leakage
|
|
|
|
|
|
|
|
|||||||
|
|
soft Start
|
Yes, 3-5 Seconds
|
|
|
|
|
|
|
|
|||||||
|
Others
|
Dimension(LxW×H)
|
145×76×54mm
|
190×102×57.5mm
|
230×102×57.5mm
|
265×200×96.5mm
|
365×252×101mm
|
435×252×101mm
|
530×252×101mm
|
530×252×101mm
|
|||||||
|
|
Packing
|
0.43KG
|
1.15KG
|
1.2KG
|
2.7KG
|
5.2KG
|
6.8KG
|
8.3KG
|
8.5KG
|
|||||||
|
|
Cooling
|
Load control fan or by thermal control fan
|
|
|
|
|
|
|
|
|||||||
|
|
Application
|
Home and Office appliances,Portable Power Equipment,Vehicle,Yacht and Off-Gid Solar
power systems...etc. |
|
|
|
|
|
|
|
|||||||
