Quick Details
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2035*1695*1175 mm
-
Machine Weight:
-
800 kg
-
Bucket capacity:
-
0.03
-
part name:
-
mini skid steer loader for construction machinery
-
Dimension:
-
2035*1695*1175 mm
-
Operating Weight:
-
890 Kgs
-
Skip Dumping angle:
-
30°
-
Speed::
-
0-5.5Km/h
-
Operating Load:
-
200 Kgs
-
Ground clearance:
-
105mm
-
Noise (Db):
-
≤95
-
YFL380 Moving Type:
-
Crawler Loader
-
After Warranty Service:
-
Video technical support
Quick Details
-
Engine Brand:
-
Kohler
-
Power:
-
23KW
-
Brand Name:
-
Infront
-
Place of Origin:
-
Shandong, China
-
Dimension(Long * Breadth * High):
-
2035*1695*1175 mm
-
Machine Weight:
-
800 kg
-
Bucket capacity:
-
0.03
-
part name:
-
mini skid steer loader for construction machinery
-
Dimension:
-
2035*1695*1175 mm
-
Operating Weight:
-
890 Kgs
-
Skip Dumping angle:
-
30°
-
Speed::
-
0-5.5Km/h
-
Operating Load:
-
200 Kgs
-
Ground clearance:
-
105mm
-
Noise (Db):
-
≤95
-
YFL380 Moving Type:
-
Crawler Loader
-
After Warranty Service:
-
Video technical support

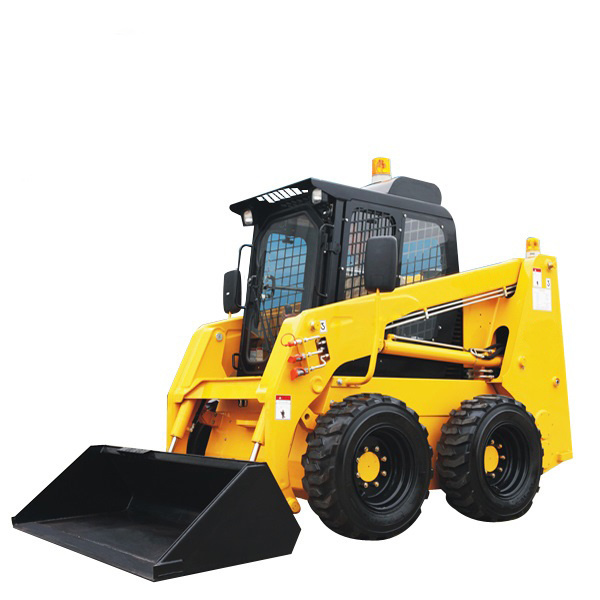

mini 380 wheel crawler skid steer loader for construction machinery
Main Dimension:
|
Item |
With Chevron Engineering Tyre |
|
|
Max working height H1 |
2143mm |
84.37inch |
|
Max dump height H2 |
1488mm |
58.58inch |
|
Total Height H |
1233mm |
48.54inch |
|
Max pin height |
1884mm |
74.17inch |
|
The length of the foot plate |
678 mm |
26.7inch( foot plate level ) |
|
Total length with bucket L ( mm) |
2206mm |
86.9inch |
|
Highest point dump distance L1( mm ) |
348mm |
13.7inch |
|
Length without bucket L2( mm ) |
1752mm |
69inch |
|
Bucket width B( mm ) |
980mm |
38.6inch |
|
Total width B1( mm ) |
1160mm |
45.67nch |
|
Wheel base |
940mm |
37inch |
|
Ground clearance( mm ) |
118mm |
4.65inch |
|
Turning radius R( mm ) |
1307 mm |
51.5inch |
|
Bucket dumping angle α ( ° ) |
30 |
|
|
Rollback of bucket on ground β ( ° ) |
25 |
|
|
Departure angle( ° ) |
11( foot plate level ) |
|
Technical Parameter:
|
Item YF380 |
Item |
|||
|
Engin e |
Rated power( KW ) |
15.4KW(21HP) |
||
|
Rated speed( rpm ) |
3300 |
|||
|
Noise ( Db ) |
95 |
|||
|
Hydraulic system |
Hydraulic pressure( Mpa ) |
17 |
||
|
Cycle time( s ) |
Raise |
Dump |
lower |
|
|
4.27 |
1.34 |
3.31 |
||
|
Technical Parameter |
Operating Load |
200 Kg s |
441lb |
|
|
Bucket Capacity |
0.15 m 3 |
5.33( ft 3 ) |
||
|
Max Lifting Force |
375 Kg s |
827lb |
||
|
Travel Speed |
0-5.5Km/h |
0-3.4mile/h |
||
|
Operating Weight |
890 Kg |
1958lb(With Chevron Engineering Tyre ) |
||
|
Tires |
18*6.5-8 |
|||
