Quick Details
-
Mounting Type:
-
Easy to install
-
Description:
-
Ultrasonic Sensor, ultrasonic transducer
-
Model Number:
-
LH-YTDF-1
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Lianhui
-
Theory:
-
Ultrasonic
-
Output:
-
600W
-
Product name:
-

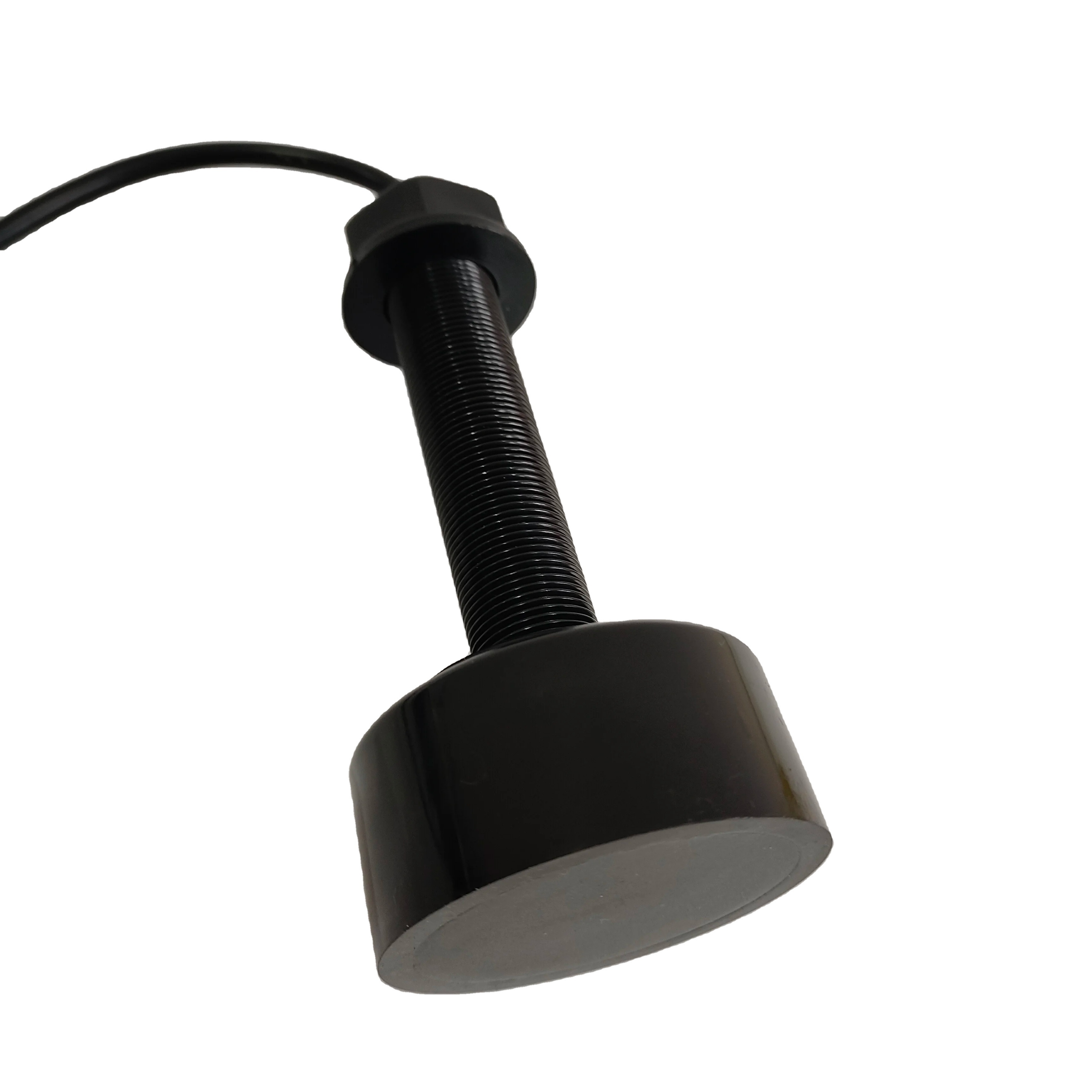

MARINE Underwater Transmitter Receiver Sonar Ultrasonic Transducer
-
Transducer frequency:
-
50KH&200kHz
-
Bandwidth:
-
±5%
-
Sensitive element material:
-
>1.5V
-
Beam Angle:
-
50KHz: 41° ; 210KHz:10°
-
Electrostatic capacitance:
-
8.0nF±20%
-
Impedance:
-
16Ω±30%
-
Maximum Operating voltage:
-
<600V
-
Ambient temperature:
-
4℃ --60℃
Quick Details
-
Usage:
-
Connect with fish finder and echo sounder
-
Series:
-
transducer for fishing, ultrasonic fishing transducer
-
Features:
-
depth measurement
-
Mounting Type:
-
Easy to install
-
Description:
-
Ultrasonic Sensor, ultrasonic transducer
-
Model Number:
-
LH-YTDF-1
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Lianhui
-
Theory:
-
Ultrasonic
-
Output:
-
600W
-
Product name:
-
MARINE Underwater Transmitter Receiver Sonar Ultrasonic Transducer
-
Transducer frequency:
-
50KH&200kHz
-
Bandwidth:
-
±5%
-
Sensitive element material:
-
>1.5V
-
Beam Angle:
-
50KHz: 41° ; 210KHz:10°
-
Electrostatic capacitance:
-
8.0nF±20%
-
Impedance:
-
16Ω±30%
-
Maximum Operating voltage:
-
<600V
-
Ambient temperature:
-
4℃ --60℃
Product Description
Specification
|
Transducer frequency
|
50KHz±3%
210kHz±3% |
|
Bandwidth
|
±5%
|
|
Sensing range
|
50KHz： 0.6-120 m
210KHz：3-400 m |
|
Sensitive element material
|
>1.5V
|
|
Beam Angle
|
50KHz： 41°
210KHz：10° |
|
Electrostatic capacitance
|
8.0nF±20%
|
|
Impedance
|
16Ω±30%
|
|
Power
|
＜600V
|
|
Ambient temperature
|
4℃ ——60℃
|
|
Storage temperature
|
-30℃——80℃
|
|
IP Rating
|
IP68
|
|
Housing Material
|
plastic
|
|
Cable
|
10m/3P
|
|
Signal interface
|
Welding
|
|
Installs Way
|
ZG1 '' pipe thread
|
|
Weight(g)
|
800G
|
|
Note
|
Construction and size of transducer is customizable。
|
