Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Guizhou, China
-
Brand Name:
-
Guda
-
Model Number:
-

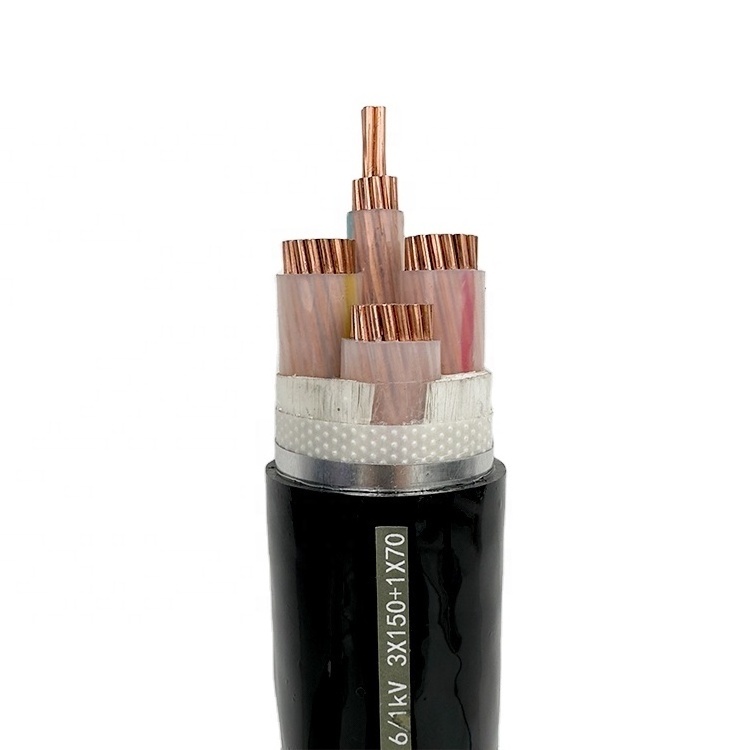

ZR-YJV22 0.6/1kV 3*150+1*70 mm²
-
Size:
-
3*150+1*70 mm²
-
Product name:
-
Low voltage power cable
-
Usage:
-
Distribution power grid and industrial installations
-
Rated voltage:
-
0.6/1kV
-
Conductor type:
-
Stranded
-
Insulation:
-
XLPE
-
Armor:
-
Steel type
-
Core:
-
3+1 Cores
-
MOQ:
-
500 Meters
Quick Details
-
Insulation Material:
-
Xlpe
-
Application:
-
Distribution power grid and industrial installations
-
Conductor Material:
-
Copper
-
Jacket:
-
PVC
-
Place of Origin:
-
Guizhou, China
-
Brand Name:
-
Guda
-
Model Number:
-
ZR-YJV22 0.6/1kV 3*150+1*70 mm²
-
Size:
-
3*150+1*70 mm²
-
Product name:
-
Low voltage power cable
-
Usage:
-
Distribution power grid and industrial installations
-
Rated voltage:
-
0.6/1kV
-
Conductor type:
-
Stranded
-
Insulation:
-
XLPE
-
Armor:
-
Steel type
-
Core:
-
3+1 Cores
-
MOQ:
-
500 Meters
Product Description
Product Application
Used for fixed installation in distribution networks or industrial devices with a rated power frequency voltage of 0.6/1KV or below.
Characteristics
1.The allowable long-term maximum working temperature of cable conductors: PVC insulated cables: 70 ℃, XLPE insulated cables: 90 ℃.
2.When the cable is short circuited (maximum duration of 5 seconds), the maximum temperature of the conductor shall not exceed: PVC insulated cable, sectional area ≤ 300mm2 160 ℃, when sectional area >300mm2 140 ℃; XLPE insulated cable 250 ℃.
3.The ambient temperature during laying should not be lower than 0 ℃.
4.The allowable bending radius of the cable is:
Single core cable: armored type, the bending radius is ≥ 15D during installation, non-armored type, it is ≥ 20D; Multi-core cable: armored type, the bending radius is ≥ 12D during installation, non-armored type, it is ≥ 15D;
D is the outer diameter of the cable.
Specification
item
|
value
|
Brand Name
|
Guda
|
Model Number
|
ZR-YJV22
|
Insulation Material
|
Xlpe
|
Type
|
LOW VOLTAGE
|
Application
|
Distribution power grid and industrial installations
|
Conductor Material
|
Copper
|
Jacket
|
PVC
|
Size
|
3*150+1*70 mm2
|
Product name
|
Low voltage power cable
|
Conductor type
|
solid or stranded
|
Core
|
3+1 Cores
|
Rated voltage
|
0.6/1kV
|
Package
|
steel -wooden drum
|
MOQ
|
500 Meters
|
Sample
|
free sample, freight charged only
|
Sample packing
|
bag or box
|
Packing & Delivery
The products are normally packed in steel-wooden drum.
Product Parameters
Number of cores:
1 core, 2 cores, 3 cores, 4 cores, 5 cores, 3+1 cores, 3+2 cores and 4+1 cores.
Common specifications:
1.0mm²,1.5mm²,2.5mm²,4mm²,6mm²,10mm²,16mm²,25mm²,35mm²,50mm²,70mm²,95mm²,120mm²,150mm²,185mm²,240mm²,300mm²,400mm²,500mm²,630mm² etc.
Structural parameters of the product
Why Choose us
Projects Guda Participated
Guda has participated in the construction of national super project "China's Eye of Heaven" FAST(Five-hundred-meter Aperture Spherical radio Telescope), Guiyang Subway Line 1 projects, Dalian Bay Cross-harbour Tunnel Project etc.
