Quick Details
-
Model Number:
-
2W
-
Brand Name:
-
HENGFA
-
product name:
-
Solenoid Valve
-
Valve type:
-
Electric Valve
-
pressure:
-
PN10
-
Standard or Nonstandard:
-
Standad
-
MOQ:
-
1 Piece
-
Connection type:
-
Pipe Female Thread
-
Voltage:
-
AC220V,DC24V
-
Medium:
-
Water Oil Gas
Quick Details
-
Port Size:
-
DN8~DN80mm
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
2W
-
Brand Name:
-
HENGFA
-
product name:
-
Solenoid Valve
-
Valve type:
-
Electric Valve
-
pressure:
-
PN10
-
Standard or Nonstandard:
-
Standad
-
MOQ:
-
1 Piece
-
Connection type:
-
Pipe Female Thread
-
Voltage:
-
AC220V,DC24V
-
Medium:
-
Water Oil Gas

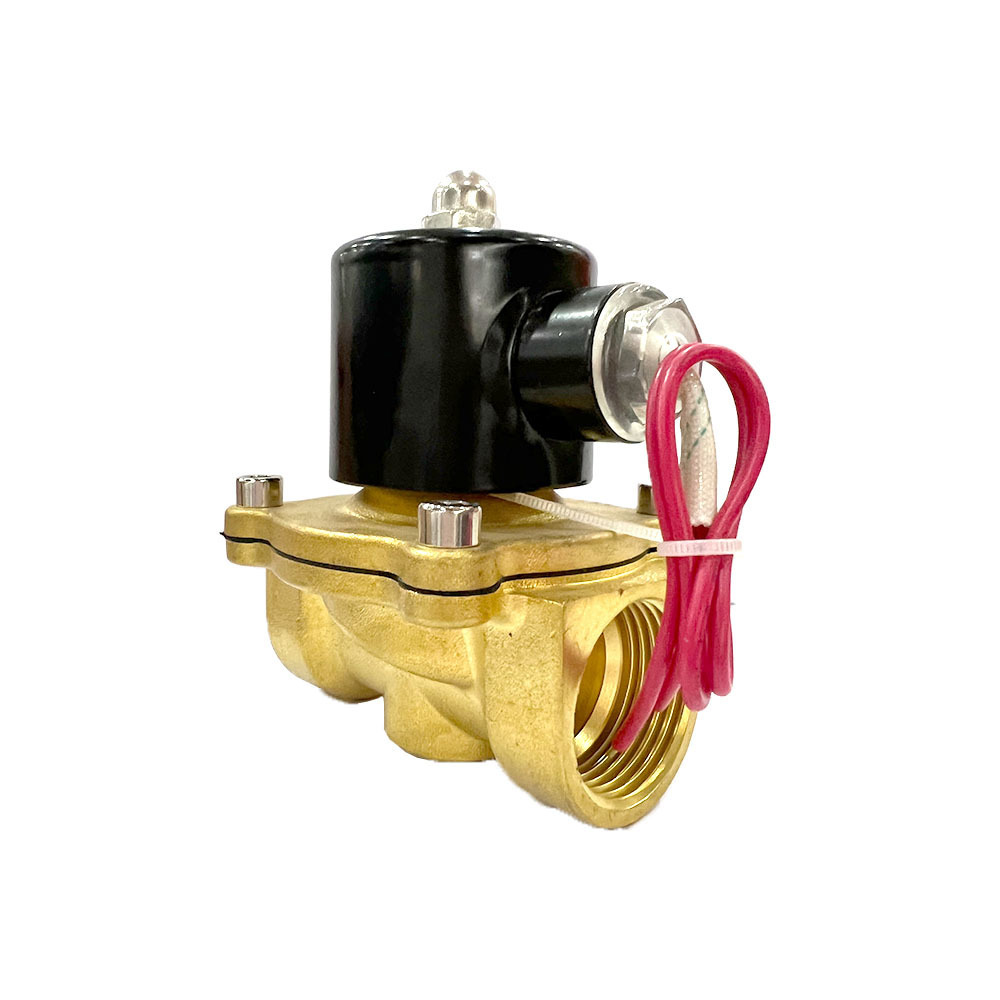

Products Description
|
Products Features:
|
|
1. Compact Size, Easy to Assemble and Disassemble.
|
|
2. 2W-200-25 Solenoid Valves Has High Precision Pilot Head, Up to 5 Times/second Response Speed,
|
|
Suitable for a Wide Range Of,Responsive, Smooth Work, High-speed Use Without Jam.
|
|
3. Only 25 Psi Can Start the Pneumatic Valve, Which is Easy to Operate, Easy to Install and Easy to Remove.
|
|
4. This Valve's Body is Made of Solid Brass (very Corrosion Resistant Material).Safe and Reliable to Use.
|
|
5. The Inner Hole is Machined by a Special Process, with Low Frictional Resistance, Low Starting Air Pressure and Long Service
Life. |
|
6. Please Pay Attention to the Direction of Gas Flow and the Correct Connection when Installing. Pay Attention to Dust-proof.
|
|
7. Air Solenoid Valve Has Single Control Solenoid Valve Have Internal Pilot Structure, Sliding Column Structure, Good Sealing and
Responsive. |
|
8. Manual Operation, Smooth Operation, Accurate and Reliable Positioning. High Precision Stem Fit Degree is High Air Tightness.
|
|
9. Widely, Informs the to Control the Flow of Various Types of Fluids to the As Air, Water, Mud, Liquid Metals, Etc.
|
|
Model NO.
|
2W-06K
|
2W-08K
|
2W-160-10K
|
2W-15K
|
2W-20K
|
2W-25K
|
2W-32K
|
2W-40K
|
2W-50K
|
||||||||
|
Pipe Size
|
1/8"
|
1/4"
|
3/8"
|
1/2"
|
3/4"
|
1"
|
1 1/4"
|
1 1/2"
|
2"
|
||||||||
|
orifice size
|
2.5mm
|
4mm
|
16mm
|
16mm
|
20mm
|
25mm
|
32mm
|
40mm
|
50mm
|
||||||||
|
fluid medium
|
Air water oil,the neutral gas/liquid
|
|
|
|
service voltage
|
AC110V/220V/DC24V（50/60Hz)
|
|
|
|
||||||||
|
operating type
|
polit type
|
|
|
|
type
|
Normally Open
|
|
|
|
||||||||
|
Body Material
|
Brass
|
|
|
|
working pressure
|
(water, air): 1~10kgf/cm'
|
|
|
|
||||||||
|
Material of sealing
|
Standard: below 80℃ fluid temperature use NBR / below 150℃ use VITON
|
|
|
|
|
|
|
|
|
||||||||
|
Model NO.
|
2W-040-10
|
2W-160-10
|
2W-160-15
|
2W-200-20
|
2W-250-25
|
2W-320-32
|
2W-400-40
|
2W-500-50
|
|||||||
|
Pipe Size
|
3/8"
|
|
1/2"
|
3/4"
|
1"
|
1 1/4"
|
11/2"
|
2"
|
|||||||
|
orifice size
|
4mm
|
16mm
|
1 6mm
|
20mm
|
25mm
|
32mm
|
40mm
|
50mm
|
|||||||
|
cv valle
|
0.6
|
4.8
|
4.8
|
7.6
|
12
|
24
|
29
|
48
|
|||||||
|
fluid medium
|
Air water oil,the neutral gas/liquid
|
|
|
|
|
|
|
|
|||||||
|
service voltage
|
AC380V AC220V AC110V AC24V DC24V DC12V (allow) ±10%
|
|
|
|
|
|
|
|
|||||||
|
operating type
|
direct acting
|
|
|
|
type
|
|
Normally Closed
|
|
|||||||
|
Body Material
|
Brass
|
|
|
|
fluid viscosity
|
|
<20CST
|
|
|||||||
|
working pressure
|
water,air:0~ 10kgf/cm' oil:0~ 7kgf/cm"
|
|
|
|
|
|
|
|
|||||||
|
Material of sealing
|
standard: below 80℃fluid temperature use NBR / below 120℃ use EPDM / below 150℃ use VITON
|
|
|
|
|
|
|
|
|||||||
