- Product Details
- {{item.text}}
Quick Details
-
Memory Type:
-
DDR3
-
Graphics Card Type:
-
Integrated
-
Chipset:
-
intel bay trail
-
FSB / HT:
-
667
-
Brand Name:
-
LingJiang
-
Place of Origin:
-
Guangdong, China
-
System Memory:
-
4GB RAM onboard , option MAX 8Gb RAM DDR3
-
Processor:
-
intel celeron N2930 J1900 processor
-
BIOS:
-
AMI
-
Graphics:
-
Intel GMA 3650
-
LAN:
-
2*lan, RJ-45, Gigabit Ethernet_RTL8111E
-
Serial ports:
-
4*COM, support 3*RS232 + 1*RS485
-
USB:
-
3*USB 2.0 + 1*USB 3.0
-
Watchdog Timer:
-
1~256 levels
-
SIZE:
-
156x119 mm
-
Operating System:
-
win 10, win7, win 8, linux
Quick Details
-
Maximum Ram Capacity:
-
8GB
-
Application:
-
LAPTOP
-
Form Factor:
-
Mini-ITX
-
Memory Type:
-
DDR3
-
Graphics Card Type:
-
Integrated
-
Chipset:
-
intel bay trail
-
FSB / HT:
-
667
-
Brand Name:
-
LingJiang
-
Place of Origin:
-
Guangdong, China
-
System Memory:
-
4GB RAM onboard , option MAX 8Gb RAM DDR3
-
Processor:
-
intel celeron N2930 J1900 processor
-
BIOS:
-
AMI
-
Graphics:
-
Intel GMA 3650
-
LAN:
-
2*lan, RJ-45, Gigabit Ethernet_RTL8111E
-
Serial ports:
-
4*COM, support 3*RS232 + 1*RS485
-
USB:
-
3*USB 2.0 + 1*USB 3.0
-
Watchdog Timer:
-
1~256 levels
-
SIZE:
-
156x119 mm
-
Operating System:
-
win 10, win7, win 8, linux

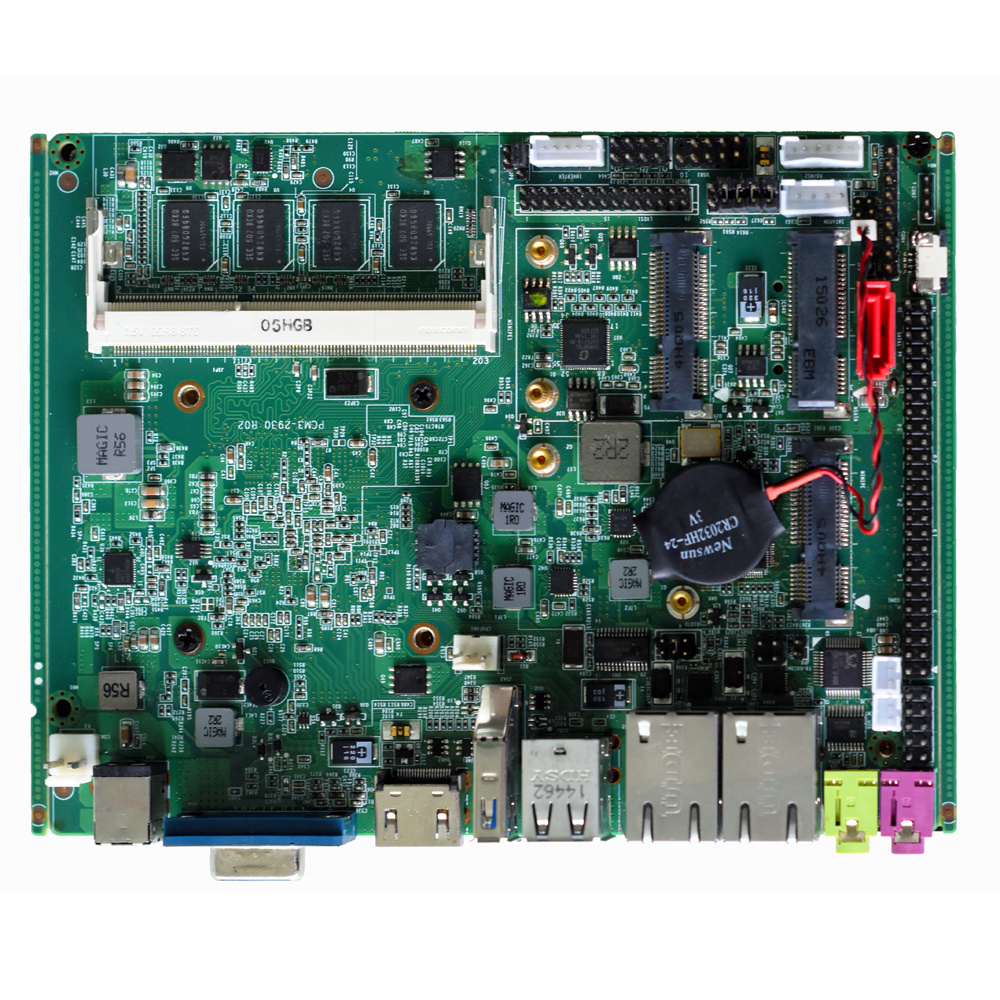

4Gb memory Industrial motherboard X86 intel celeron N2930 J1900 Processor 4 core dual Ethernet NUC board
| Kevin Zhong | |
| Mob : +86-13641453873 (whatsapp) | |
| Tel: 86-755-23448870-8013 | |
|
mail: xierong(at)ling-jiang.com |
|
|
Skype: lingjiang8819 |
|
| Official Website: http://en.ling-jiang.com | |
| Alibaba Website: www.ling-jiang.en.alibaba.com | |
| ADD: 4/F Block 6, JiaAnDaTechnology Park, HuaFan RD, DaLang Street, Longhua District, ShenZhen. | |
The motherboard features Intel® Bay Trail chipset, integrated quad-core Intel® Celeron® J1900 processor, Intel® Seventh Generation graphics engine and media codec engine to provide enhanced image processing performance and 3D video performance. And with a wealth of I / O functions, widely used in ATM / KIOSK, POS, game and automation field of Tablet PC and digital signage.
| Features | |
| Model Name | PCM3-N2930 |
| Mechanical | |
| Dimensions | 156×119(mm) |
| Power supply | 9V-25V |
| Watchdog timber | 0-255s |
| Net weight | 0.45kg(Including heatsink) |
| Thermal methods | Fanless |
| Working Temp | Working Temperature:-40℃ +80℃.Working Humidity:5% - 95% |
| Storage Temp | Storage Temperature:-40℃ +80℃.Storage Humidity:5% - 95% |
| System | |
| CPU |
Intel celeron J1900 quad core processor ,2.0GHz,10W
(Default) Intel N2930,1.83G,7.5W |
| Chipset | Intel Bay trail SOC |
| Memory | Onboard 4Gb ram,1×DDR3,Expand 8Gb |
| SATA | 1×SATA,1×M-SATA/SATA |
| System | Win7/Win8/Linux/ windows 10 |
| I/O | |
| Lan | Integrate RTL8111G,2×10/100/1000Mbps RJ45 |
| Serial ports | 4×COM (1×RS485/422 PIN,3×RS232 PIN) |
| USB | Onboard 1×USB 3.0/2×USB2.0/Inner 2×USB 2.0(Pin) |
| GPIO | 1×GPIO 8 Bits(4in/4out) |
| PS/2 | 1×KB/MS2 Inner connector |
| Display | Onboard 1×VGA/1×LVDS(18/24 Bits inner) |
| Audio |
Onboard 1×MIC-in,1×Line-out,Integrate sound card ALC662,
2×2W AMP connector (inner) |
| Touch function | 1 (4/5/8 Wire) |
| Others | Fan connector, 2×min-PCIE(Wifi/3G/4G),1×SIM slot |
| Warranty | |
| 1×GPIO 8 Bits(4in/4out) | 12 months |
| Order information | |
| Model Name | PCM3-N2930 |
| Standard Configuration |
J1900 CPU,2.0GHz, SO-DIMM: 4G, Onboard 1×VGA,1× LVDS (18 Bits) , 3×USB,2×LAN,2×USB(Inner),1×GPIO(8 Bits),1×SATA, 1×MSATA,2×MPCIE,4×RS 232, 1×PS2/1×SIM slot,AUD Power connector (Pin) , Audio input and output port,Power hole(9V-25V) |
| Standard Accessories | Heat sink, Serial port extension cable,Sata cable,switch,Power connector |
| Optional | N2930 CPU, Wifi/3G/4G,SO-DIMM:2G,SSD:64Gb / 128GB / 256GB |
