Quick Details
-
Dimension(L*W*H):
-
1300(L)*1200(W)*1500(H)
-
Weight:
-
950 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Packaging speed:
-
40-150 cases/min
-
Air consumption:
-
5-8 L/Min
-
PLC:
-
Siemens
-
Packaging dimension(mm):
-
(L)49-120*(W)25-80*(H)25-55
-
Photoelectric switch:
-
Germany brand
-
Proximity switches:
-
Germany brand
-
WhatsApp / Wechat / Mobile:
-
+0086 13795304292
-
Keywords:
-
Automatic Cartoning Machine
Quick Details
-
Voltage:
-
220V/380V/50Hz
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Chengxiang
-
Dimension(L*W*H):
-
1300(L)*1200(W)*1500(H)
-
Weight:
-
950 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Packaging speed:
-
40-150 cases/min
-
Air consumption:
-
5-8 L/Min
-
PLC:
-
Siemens
-
Packaging dimension(mm):
-
(L)49-120*(W)25-80*(H)25-55
-
Photoelectric switch:
-
Germany brand
-
Proximity switches:
-
Germany brand
-
WhatsApp / Wechat / Mobile:
-
+0086 13795304292
-
Keywords:
-
Automatic Cartoning Machine

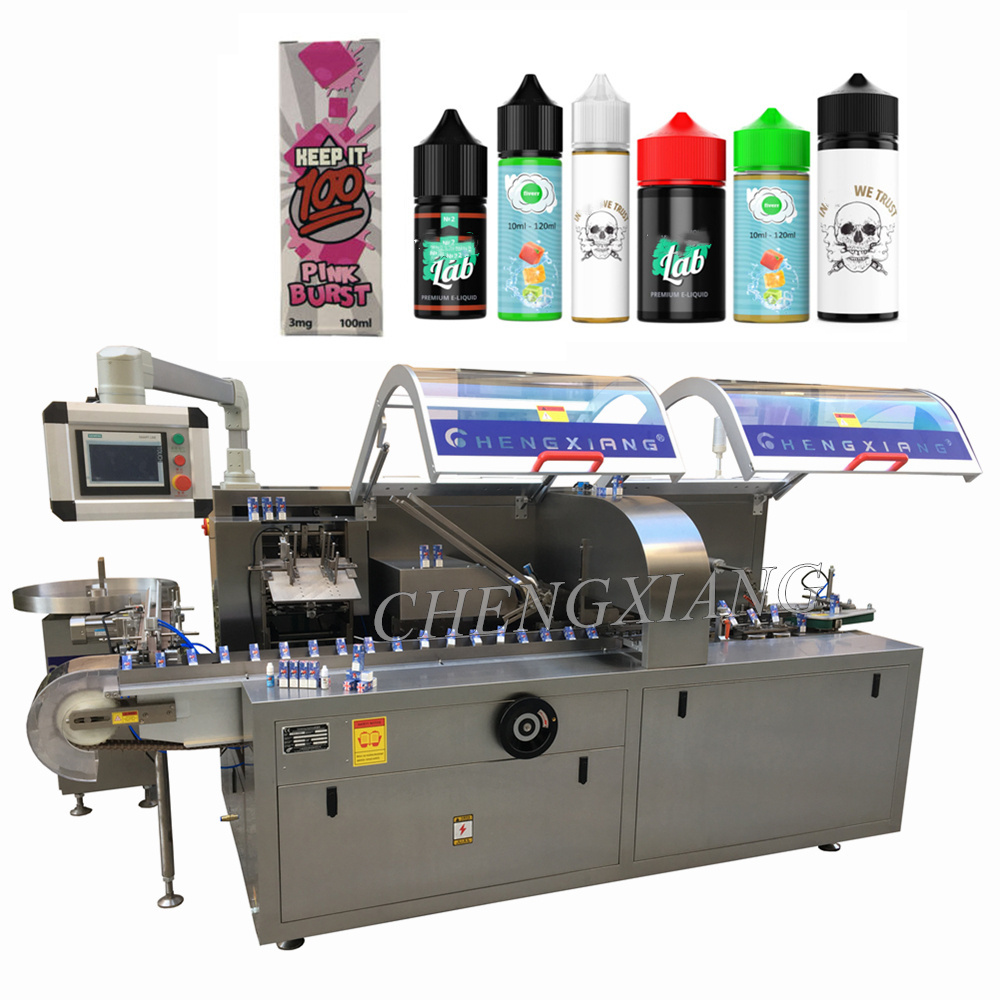

CX-126N Cartoning/Boxing Machine
Fit for bottle,tube,soap,vials...
Bottle feeding turntable / manual /steel seal are optional,more details contact us now!
400-500pcs cartons Leaflet folder (1-4folds online) Printing batch number: embossing/steel letter
We pack all quick wear parts,manual,operation & installation video,
tool and whole machine in wooden case,more easy for set up
This equipment is new model developping base on integrated domestic and foreign vanguard technology .
It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on
performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable
when fast running.
This machine is suitable for automatic feeding round bottle / square bottle into carton which bottle use
in pha, cosmetic, food, health product. On line bottle unscramble and feeding,
leaflet fold(1-4folds) and feeding, leaflet detecting, carton opening and forming, products and leaflet
pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device.
Automatically reject lacking of leaflet or product and finished product out.
Machine frame adopt super stainless steel
Characteristic.
1.The cartoning machine includes an automatic station to form the cartons. The carton boxes are held by vacuum
2.No suction carton by missing product
3.Automatically displaying device for trouble, speed and finished products counting
4.Machine stop running if no products or incorrect position of products. And stop automatically if incorrect
position of product into carton after return or no cartons or out of leaflets continuous.
5.Adopt human-machine operation system.
6.International famous brand of electric components such for PLC touch screen, frequency inverters, etc
7.Stable performance, operation is easy Controls
|
Type |
CX-126N |
|
Dimensions |
3500mm×1100mm×1550mm (L×W×H) |
|
Weight |
1500kg |
|
Steady production speed |
40-150cartons/min |
|
Grammage |
Between 60-70g/m2 |
|
Size range |
(80-250) ×(90-170)mm (L×W) |
|
Fold range |
(1-4 )fold |
|
Standard power supply |
220V – 50Hz |
|
Power consumption in KW |
0.75 |
|
Air consumption |
120-160L/min |
|
Compressed Air Pressure |
0.6MPa |
|
Noise |
<70 dB |
Famous brand electrical parts
|
1 |
Main Motor |
Germany SEW |
|
2 |
Frequency Converter |
Denmark Danfoss |
|
6 |
Power Switch |
Germany Queensway Moeller |
|
7 |
Emergency Stop Button |
France Schneider |
|
9 |
Touch Screen |
Germany Siemens |
|
10 |
PLC |
Germany Siemens |
|
11 |
Coder |
Japan Omron |
|
12 |
Optical Fiber Amplifier |
|
|
13 |
Optical Fiber |
|
|
14 |
Photoelectric Switch |
Germany Leuze |
|
15 |
Photoelectric Switch |
Japan Omron |
|
16 |
Germany Sick |
|
|
17 |
Proximity Switch |
Japan Omron |
|
18 |
Filter Pressure Reduce Valve |
Japan SMC |
|
19 |
Electromagnetic Valve(Reject) |
Japan SMC |
|
20 |
Electromagnetic Valve |
Japan SMC |
After-sales service:
We guarantee the quality of the main parts within 12 months. If the main parts go wrong without artificial factors within one year, we will freely provide them or maintain them for you. After one year, if you need to change parts, we will kindly provide you with the best price or maintain it in your site. Whenever you have technical question in using it, we will freely do our best to support you.
Guarantee of quality :
The Manufacturer shall guarantee the goods are made of Manufacturer’s best materials, with first class workmanship, brand new, unused and correspond in all respects with the quality, specification and performance as stipulated in this Contract. Quality guarantee period is within 12 months from B/L date. The Manufacturer would repair the contracted machines free of charge during the quality guarantee period. If the break-down can be due to the improper use or other reasons by the Buyer, the Manufacturer will collect repair parts cost.
Installation and Debugging:
The seller would dispatch his engineers to instruct the installation and debugging. Cost would be bear on buyer’s side
(round way flight tickets, accommodation fees in buyer country). The buyer should provide his site assistance for the installation and debugging.
Q1.Are you the factory?
A1:Yes,we are 18 YEARS manufacturer of filling-capping-labeling-bottle washing machine, our factory is in Shanghai.
Q2.What's the payment terms and trade terms for new customers?
A2: Payment terms:T/T,L/C,D/P,O/A, Western Union etc.
Trade terms:EXW,FOB,CIF,C&F...
Q3:What's the Minimum Order Quantity and warranty?
A3:MOQ:1 set
Warranty:12 months,some customized products will be 24 months.
Q4:Your standard please?
A4:CE/ISO/TUV/GMP,more details as below:
