portable sawmill for sale, price split wood sawing machines

portable sawmill for sale, price split wood sawing machines

FOB Reference Price: Get Latest Price

≥1 Sets

US $1688

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Max. wood diameter:: 650mm - 1600mm

Band wheel diameter:: 500mm - 700mm

Main Motor power:: 7.5 kw - 18.5 kw

Blade speed: ordinary standard speed:: 20-25m/s

Rail length (standard model):: 5900mm

Keywords:: portable horizontal bandsaw sawmill

Weight:: 650kg - 1400kg, 650kg - 1400kg

type:: gasoline, diesel and electric

Service:: we can add tires

Certification:: ISO9001-2008

Power:: 7.5 kw - 18.5 kw

Quick Details

Place of Origin:: Shandong, China

After-sales Service Provided:: Engineers available to service machinery overseas

Name:: bandsaw sawmill with electric and diesel engine

Max. wood diameter:: 650mm - 1600mm

Band wheel diameter:: 500mm - 700mm

Main Motor power:: 7.5 kw - 18.5 kw

Blade speed: ordinary standard speed:: 20-25m/s

Rail length (standard model):: 5900mm

Keywords:: portable horizontal bandsaw sawmill

Weight:: 650kg - 1400kg, 650kg - 1400kg

type:: gasoline, diesel and electric

Service:: we can add tires

Certification:: ISO9001-2008

Power:: 7.5 kw - 18.5 kw

Product Description

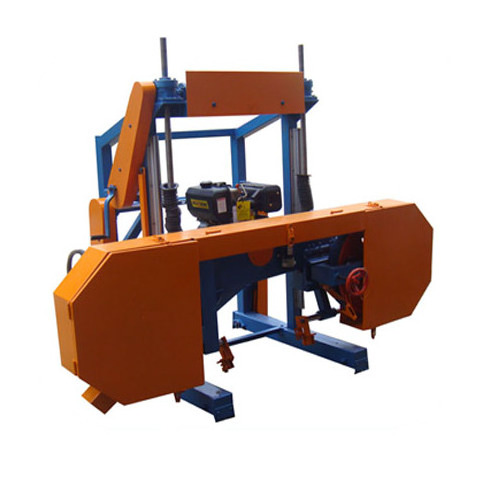

1. SH27 Portable Horizontal Bandsaw Sawmill Machine

Technical Parameter	SH-27E	SH-27G	SH-27D
Sawing Wood Diameter	650mm
Saw Wheel Diameter	500mm
Sawing Wood Thickness	10-150mm
Sawing Wood Length	800-3800mm
Power	7.5KW Electric Motor	13HP Gasoline Engine	13HP Diesel Engine
Packing Size	220010501800MM
Total Weight (KG)	650kg

2. Portable Horizontal Bandsaw Sawmill with Electric Engine

Model	MJ700	MJ1000	MJ1300	MJ1600
Max. wood diameter	700mm	1000mm	1300mm	1600mm
Band wheel diameter	600mm	700mm	700mm	700mm
Max. sawing thickness	260mm	300mm	300mm	300mm
Blade speed: ordinary wood standard speed	20-25m/s	20-25m/s	20-25m/s	20-25m/s
Power output of electric motor (380V,50Hz,3phase)	7.5KW , 1.1KW	11KW , 1.1KW	15KW , 1.1KW	18.5KW , 1.1KW
Rail length (standard model)	5900mm	5900mm	5900mm	5900mm
Total weight(standard model)	900KG	1100KG	1300KG	1400KG
Cooling Water Pressure	0.3-0.6PA	0.3-0.6PA	0.3-0.6PA	0.3-0.6PA

3. Portable Horizontal Bandsaw Sawmill with Diesel Engine

Model	MJ700	MJ1000	MJ1300	MJ1600
Max. wood diameter	700mm	1000mm	1300mm	1600mm
Band wheel diameter	600mm	700mm	700mm	700mm
Max. sawing thickness	260mm	300mm	300mm	300mm
Blade speed: standard	20-25m/s	20-25m/s	20-25m/s	20-25m/s
Max. Length of the wood	4500mm	4500mm	4500mm	4500mm
Power	13hp single cylinder	22HP double cylinder	25HP double cylinder	27HP double cylinder
Rail length	5900mm	5900mm	5900mm	5900mm
Weight	900KG	1100KG	1300KG	1400KG

Detailed Images

After adding tires, it can be pull by tractor

Load wood device

Electric sawmill can be frequency walking and touch screen setting size

It can be designed to double cutting. the double sides of blade can cut

Extend the rails, it can cut three or more logs once.

Double cylinder

Band Saw Blade Sharpener and Automatic Sharpener

Main Technical Data	MR1111	MR1115	MR1118
Grind Width MM	30-80	30-125	60-150
Sand Wheel Diameter MM	150	250	250
Band Saw Blade Pitch MM	8-20	10-30	10-40
Working Frequency Tooth/Min	50	50	50
Weight (kg)	52	100	200
Overall Size MM	830560530	950650600	900750700

Band Saw Blade Welding Machine

Technical Parameter	UN65	UN125	UN150
Welding Saw Blade Width (MM)	15-60	15-125	15-150
Welding Saw Blade Thickness (MM)	0.5-1.15	0.7-1.25	0.7-1.25
Voltage	380V 60 HZ	380V 60 HZ	380V 60HZ
Weight (KG)	100	200	250

Rolling Machine

Main Technique Data	MR417	MR417-2
Max Processing Blade Width (MM)	150	125
Roll Diameter	70mm	70mm
Processing Speed(R/Minute)	52	52
Motor Power	0.75KW	0.75
Weight	150KG	80
