1 . General Information

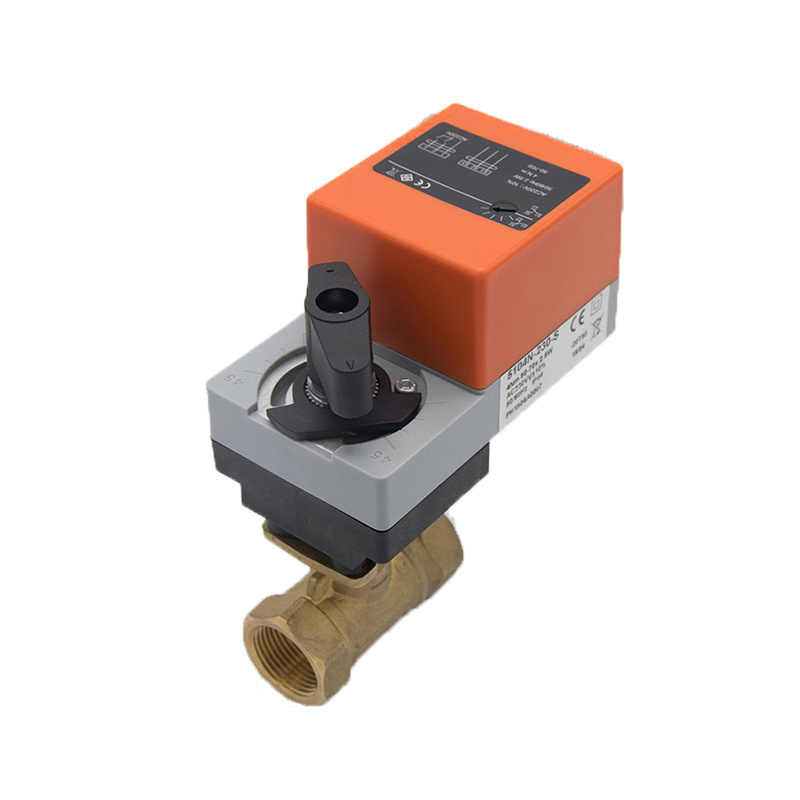

ILH500 series electronics control ball valve are de-signed to regulate the flow of hot or chilled water and for somemodels , low-pressure steam in response to the demandof a controller in HVAC system
- Product Details
- {{item.text}}
Quick Details
-
Valve type:
-
2way and 3way
-
Power supply:
-
AC220V±10% 50/60HZ
-
Certificate:
-
CE
-
Product name:
-
Stainless Steel Ball Valve
-
Working pressure:
-
25Bar
-
Working Temperature:
-
-5 ~120°c
-
OEM:
-
OEM Services Provided
Quick Details
-
Place of Origin:
-
Beijing China
-
Model Number:
-
ILH500-Series
-
Brand Name:
-
PHC
-
Valve type:
-
2way and 3way
-
Power supply:
-
AC220V±10% 50/60HZ
-
Certificate:
-
CE
-
Product name:
-
Stainless Steel Ball Valve
-
Working pressure:
-
25Bar
-
Working Temperature:
-
-5 ~120°c
-
OEM:
-
OEM Services Provided
Products Description
2 . Features and Characteristics
1-ILH500 electronics control ball valve has a wide selection for several applications
From DN15 To DN50 ，NPT Connection
2-way & e 3-way , mix & diversion
Maintenance-free Design
Maintains equal precentage flow
Adjustable flow proportion
Blowout-proof Stem
2-ILH500 electronics control ball valve is designed for heavy working pressure and fit
all kind of HVAC working system requirements
Pressure Drop with no noise : up to 2.5 bar
Maximum Pressure Drop : 3.5 bar
Close Off : 13 bar
Maximum Pressure Valve Body:25 bar
Assembling must follow the direction shown on valve body marks : A→B
A3-valve Materiay:
Stainless Steel for valve interior and ball
Forged Brass for valve body
Options Chrome-plated Brass or Stainless Steel ball and stem assemblies available upon request.
4-media
Working Temperature-5°C to120°C
Can be used in 50% Glycol Liquory
Can be used in lbar Steam
Can be used in rust water system
5-Actuators:
Non-spring retum
Power supply: 24 or 220V
Frequency:50 / 60HZ
Operating power:2.5W ( Depends on actuator’s toque
Standstill power : 0.85W ( Depends on actuator’s toque
Control Signal : F ( floating) M ( modulating , 0- 10v or 4-20MA ) . For 4NM actuators the control signal must be selected in advance . For other sizes it can be selected on the field
Protection class IP54 / NEMA2 with cables.
Running time:35s
Rotation angle 0-90
3. Parameter Chart
4. Wiring Diagram & Dimension (mm)
|
Specification
|
G
|
L
|
H
|
S
|
|
DN15 / DN20
|
G1/2/G3/4
|
75
|
44
|
32
|
|
DN25
|
G1
|
168
|
94
|
39
|
|
DN32
|
G1-1/4
|
175
|
108.5
|
49
|
|
DN40
|
GI-1/2
|
173.3
|
116.5
|
45.1
|
|
DN50
|
G2
|
184.9
|
136.5
|
56.8
|
