Quick Details
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
JMKE
-
Model Number:
-
GX36R-555
-
Torque:
-
customized
-
Shaft:
-
round
-
Shaft diameter:
-
7mm
-
Diameter:
-
36mm
-
Motor type:
-
Micro Planetary motor
-
Rated Voltage:
-
12v24vdc
-
Application:
-
packaging machinery, printing machinery, robotics
-
Material:
-
Metal Steel
-
Color:
-
Sliver+black
-
Weight:
-
500g
Quick Details
-
Speed(RPM):
-
customized
-
Continuous Current(A):
-
0.6-1.7A
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
JMKE
-
Model Number:
-
GX36R-555
-
Torque:
-
customized
-
Shaft:
-
round
-
Shaft diameter:
-
7mm
-
Diameter:
-
36mm
-
Motor type:
-
Micro Planetary motor
-
Rated Voltage:
-
12v24vdc
-
Application:
-
packaging machinery, printing machinery, robotics
-
Material:
-
Metal Steel
-
Color:
-
Sliver+black
-
Weight:
-
500g

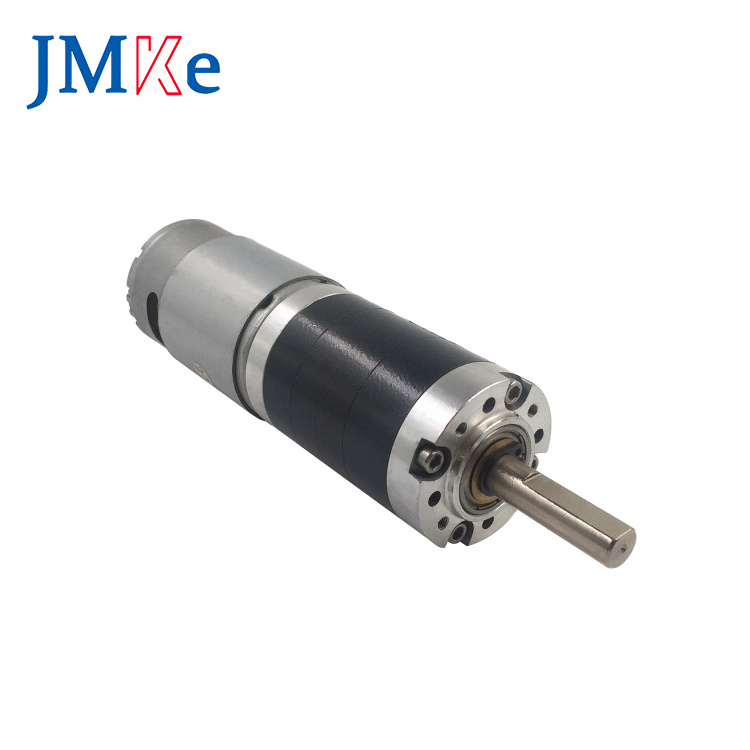

JMKE low rpm high torque 36mm 12v 24v dc planetary gearbox motor etonm 6v gear motor
Micro gear motor with low noise and high torque
Solidly constructed and ready to install in numerous applications.
|
Motor |
Speed ratio |
1/5 |
1/25 |
1/88 |
1/125 |
1/370 |
1/411 |
1/525 |
1/625 |
|
PMDC-555
|
No Load (r/min) |
744 |
148 |
42 |
29.5 |
10 |
9 |
7 |
6 |
|
Load (r/min) |
625 |
125 |
37 |
27.5 |
9.5 |
8.8 |
6.9 |
5.9 |
|
|
Rated Torque(kgf.cm) |
0.8 |
3.5 |
10 |
10 |
15 |
15 |
15 |
15 |
|
|
PMDC-555
|
No Load (r/min) |
1115 |
223 |
63 |
44.6 |
15 |
13.5 |
10.6 |
8.9 |
|
Load (r/min) |
951 |
194 |
58 |
42 |
14.5 |
13 |
10.3 |
8.7 |
|
|
Rated Torque(kgf.cm) |
1 |
4.5 |
10 |
10 |
15 |
15 |
15 |
15 |
Application:
Typical applications include factory automation machinery, labeling machinery, machine tools, material handling machinery, packaging machinery, printing machinery, robotics, x-y tables, textile machinery, applications which require smooth operation or applications which have medium to high reflected load inertias.
Φ= 36mm
Installation Dimension:M4, Φ28mm
Central Output Shaft, Length=20mm
|
Speed ratio |
L |
Deceleration level |
Rated torque |
|
|
mm |
mN.m |
kgf.cm |
||
|
1/5 |
30.7 |
1 |
196 |
2 |
|
1/25 |
39.7 |
2 |
588 |
6 |
|
1/88~1/125 |
48.7 |
3 |
980 |
10 |
|
1/311~1/625 |
57.7 |
4 |
1470 |
15 |
SPEED ADJUSTABLE - The speed can be adjusted by dc motor speed controller.
If you need a lower or higher speed motor, please choose the right rpm to meet your needs. This motor is reversible so that you can switch positive and negative.
Please offer below information
|
Voltage |
Current |
Diameter of motor |
Brushed/Brushless |
Torque |
Output Speed |
|
(V) |
(Am) |
(mm) |
|
(N.m) |
(r/min) |
Click here to contact us → with specification: voltage/speed/dia/torque
