Quick Details
-
Brand Name:
-
mgreenbelt
-
Voltage:
-
380V/3P/50HZ & others
-
Dimension(L*W*H):
-
2500*1460*2000 mm
-
Weight:
-
1350 KG
-
Power:
-
41.66kw
-
Working Temperature Range:
-
5~35 ℃
-
Controller:
-
PID+LCD Screen(English Available)
-
Compressor:
-
Scroll Compressor
-
Refrigerant:
-
R404A
-
Evaporator:
-
Stainless Steel Tank
-
Water Tank Capacity:
-
70~580L
-
Material:
-
Metal
-
Cooling Water Flow:
-
24.9m /h
-
Pump Flow Rate:
-
450L/min
-
Compressor power:
-
43kW
-
Pump power:
-
4KW
-
Marketing Type:
-
New Product 2020
Quick Details
-
Warranty of core components:
-
1 years
-
Condition:
-
Brandnew
-
Place of Origin:
-
shandong
-
Brand Name:
-
mgreenbelt
-
Voltage:
-
380V/3P/50HZ & others
-
Dimension(L*W*H):
-
2500*1460*2000 mm
-
Weight:
-
1350 KG
-
Power:
-
41.66kw
-
Working Temperature Range:
-
5~35 ℃
-
Controller:
-
PID+LCD Screen(English Available)
-
Compressor:
-
Scroll Compressor
-
Refrigerant:
-
R404A
-
Evaporator:
-
Stainless Steel Tank
-
Water Tank Capacity:
-
70~580L
-
Material:
-
Metal
-
Cooling Water Flow:
-
24.9m /h
-
Pump Flow Rate:
-
450L/min
-
Compressor power:
-
43kW
-
Pump power:
-
4KW
-
Marketing Type:
-
New Product 2020
Products Description
Product description of

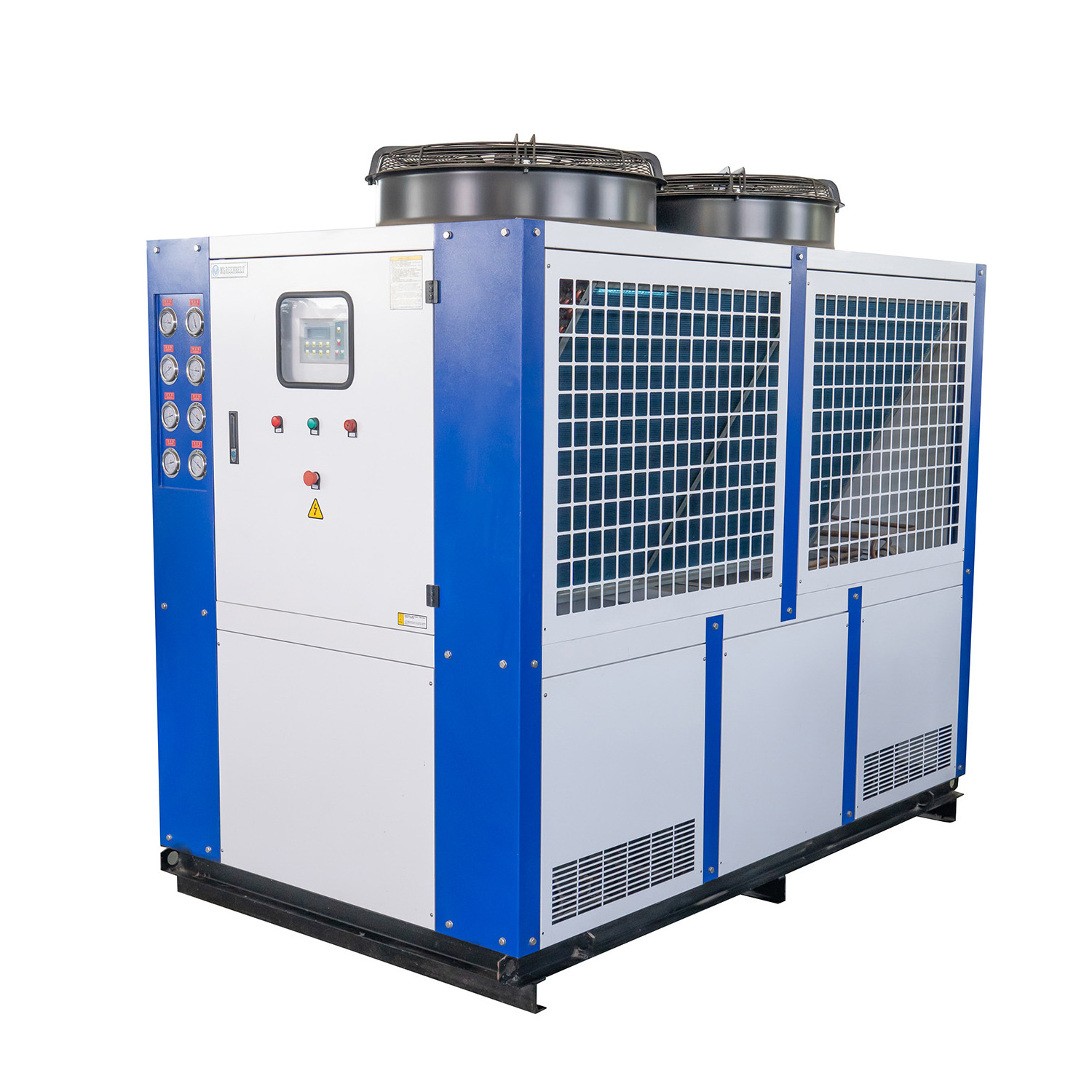

30 Tons Glycol Solution Cooling Industrial Water Chiller Air Cooled Scroll Chiller
1. The compressor are imported from Japan and USA, built-in safety protection, they have the characters of low noise and power saving.
2. With the SCHNEIDER controller to make sure the stable working and long-time life
3. Imported Italy pump with the big water flowing, high efficiency and durable
4. With the stainless steel tank type evaporator , built-in watering device, it can be cleaned easily
5. With the tube condenser, reliable design and with the good heating exchanging ability
6. Electrostatic spraying shell, European design make them elegant.
1. The compressor are imported from Japan and USA, built-in safety protection, they have the characters of low noise and power saving.
2. With the SCHNEIDER controller to make sure the stable working and long-time life
3. Imported Italy pump with the big water flowing, high efficiency and durable
4. With the stainless steel tank type evaporator , built-in watering device, it can be cleaned easily
5. With the tube condenser, reliable design and with the good heating exchanging ability
6. Electrostatic spraying shell, European design make them elegant.
Product Paramenters
|
Model
|
|
|
MG-5C
|
MG-10C(D)
|
MG-15C(D)
|
MG-20C(D)
|
MG-25C(D)
|
MG-30C(D)
|
MG-40C(D)
|
||||||||
|
|
|
|
5HP
|
10HP
|
15HP
|
20HP
|
25HP
|
30HP
|
40HP
|
||||||||
|
Cooling capacity
|
+7℃
|
Kcal/h
|
11266
|
24510
|
35948
|
47558
|
54352
|
71896
|
100104
|
||||||||
|
|
|
KW
|
13.1
|
28.5
|
41.8
|
55.3
|
63.2
|
83.6
|
116.4
|
||||||||
|
|
|
TR
|
3.72
|
8.1
|
11.89
|
15.72
|
17.97
|
23.77
|
33.1
|
||||||||
|
|
+12℃
|
Kcal/h
|
13972
|
27945
|
41960
|
55890
|
62769
|
83835
|
111780
|
||||||||
|
|
|
KW
|
16.25
|
32.5
|
48.8
|
65
|
73
|
97.5
|
130
|
||||||||
|
|
|
TR
|
4.62
|
9.24
|
13.88
|
18.48
|
20.76
|
27.72
|
36.96
|
||||||||
|
Input power
|
KW
|
|
5.61
|
10.83
|
16.31
|
21.27
|
24.35
|
32.33
|
41.66
|
||||||||
|
Outlet water temperature
|
|
|
5°C -35°C
|
|
|
|
|
|
|
||||||||
|
Power supply
|
|
|
3PHASE-220/380V/415v/460v-50HZ
|
|
|
|
|
|
|
||||||||
|
Refrigerant
|
Type
|
|
R22/R407C/R410A
|
|
|
|
|
|
|
||||||||
|
|
Control type
|
|
Thermostatic expansion valve
|
|
|
|
|
|
|
||||||||
|
Compressor
|
Type
|
|
Hermetic Scroll Type
|
|
|
|
|
|
|
||||||||
|
|
Power(kw)
|
|
4.2
|
4.7*2
|
6*2
|
9.05*2
|
10.6*2
|
9.05*3
|
9.05*4
|
||||||||
|
Evaporator
|
Type
|
|
Stainless Steel Tank with Coil
|
|
|
|
|
|
|
||||||||
|
|
Water flow(m³/h)
|
|
2.25
|
4.89
|
7.17
|
9.48
|
10.83
|
14.33
|
19.95
|
||||||||
|
|
Capacity(Lts)
|
|
70
|
200
|
270
|
350
|
350
|
450
|
580
|
||||||||
|
|
Fitting pipe(mm)
|
|
DN25
|
DN32
|
DN40
|
DN40
|
DN40
|
DN65
|
DN65
|
||||||||
|
Condenser
|
Type
|
|
Finned Copper tube +low noise air fans
|
|
|
|
|
|
|
||||||||
|
|
Air volume(m³/h)
|
|
5000
|
10000
|
15000
|
20000
|
25000
|
30000
|
40000
|
||||||||
|
Water pump
|
Power(kw)
|
|
0.75
|
0.75
|
1.5
|
1.5
|
1.5
|
2.2
|
3
|
||||||||
|
|
Lift(m )
|
|
20
|
20
|
20
|
20
|
20
|
20
|
20
|
||||||||
|
Dimension
|
L(mm)
|
|
1220
|
1610
|
1870
|
2120
|
2100
|
2700
|
2470
|
||||||||
|
|
W(mm)
|
|
600
|
820
|
900
|
1000
|
1000
|
1120
|
1400
|
||||||||
|
|
H(mm)
|
|
1200
|
1500
|
1600
|
1720
|
1720
|
1800
|
2090
|
||||||||
|
Weight
|
KG
|
|
200
|
450
|
750
|
850
|
900
|
1150
|
1350
|
||||||||
Product Details
Controller
Adopt micro-computer controller,
easy operation.
easy operation.
Electric parts
French Schneider brand electric accessories.
Compressors
Compressor brand: Sanyo, Copeland,
low noise and super cooling.
low noise and super cooling.
Condenser
V type aluminum finned copper tube
condenser,separate circuit, to have better heat exchange effect.
condenser,separate circuit, to have better heat exchange effect.
Evaporator
Shell and tube evaporators with large heat exchange capacity and stable heat exchange effect.
Water pump
CNP brand Centrifugal circulation cold water pump,
made of SUS304 stainless steel.
|
Components
|
Brand
|
|
Compressor
|
PANASONIC/COPELAND/DANFOSS
|
|
Evaporator
|
MGREENBELT
|
|
Condenser
|
MGREENBELT
|
|
Thermal expansion valve
|
EMERSON/DANFOSS
|
|
Temperature Controller
|
PUNP/SEIMENS
|
|
Drier Filter
|
DANFOSS/EMERSON
|
|
Electric Components
|
SCHNEIDER/LS
|
Product Packaging
PACKAGE:
LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough packagewith 20"or 40" container ,will use plastic foam package and wooden pallet.
SHIPPING TERMS:
1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant gas can't allowed by air ,so you must filling them whenmachine arrive if you choose the air ship.
2. FOB,CNF,CIF,DDU can be accepted .
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough packagewith 20"or 40" container ,will use plastic foam package and wooden pallet.
SHIPPING TERMS:
1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant gas can't allowed by air ,so you must filling them whenmachine arrive if you choose the air ship.
2. FOB,CNF,CIF,DDU can be accepted .
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
