10% Discount Automatic Small Sauce Sachet Packaging Machine Chili Paste Soy Sauce Tomato Sauce Ketchup Sachet Packing Machine

10% Discount Automatic Small Sauce Sachet Packaging Machine Chili Paste Soy Sauce Tomato Sauce Ketchup Sachet Packing Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $3650

≥3 Sets

US $3500

≥5 Sets

US $3400

≥50 Sets

US $2900

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 350

Voltage:: 220V

Place of Origin:: China

Brand Name:: DESSION

Dimension(L*W*H):: 640*700*1580

Main Function:: Filling Sealing Packing

Sealing type:: back Seal

Bag width:: 15-100mm

Bag length:: 30-180mm

Film width:: Max.200mm

Measuring:: Pneumatic Pump

Packing speed:: 30-80bags/min

Filling range:: 1-100g

Control system:: PLC+touch Screen

Machine material:: Stanless Steel

Quick Details

Function:: FILLING, Wrapping, Labeling, Sealing

Packaging Type:: Stand-up Pouch, Bags, Film, Pouch

Packaging Material:: Plastic

Weight (KG):: 350

Voltage:: 220V

Place of Origin:: China

Brand Name:: DESSION

Dimension(L*W*H):: 640*700*1580

Main Function:: Filling Sealing Packing

Sealing type:: back Seal

Bag width:: 15-100mm

Bag length:: 30-180mm

Film width:: Max.200mm

Measuring:: Pneumatic Pump

Packing speed:: 30-80bags/min

Filling range:: 1-100g

Control system:: PLC+touch Screen

Machine material:: Stanless Steel

10% Discount Automatic Small Sauce Sachet Packaging Machine Chili Paste Soy Sauce Tomato Sauce Ketchup Sachet Packing Machine

Machine Introduction

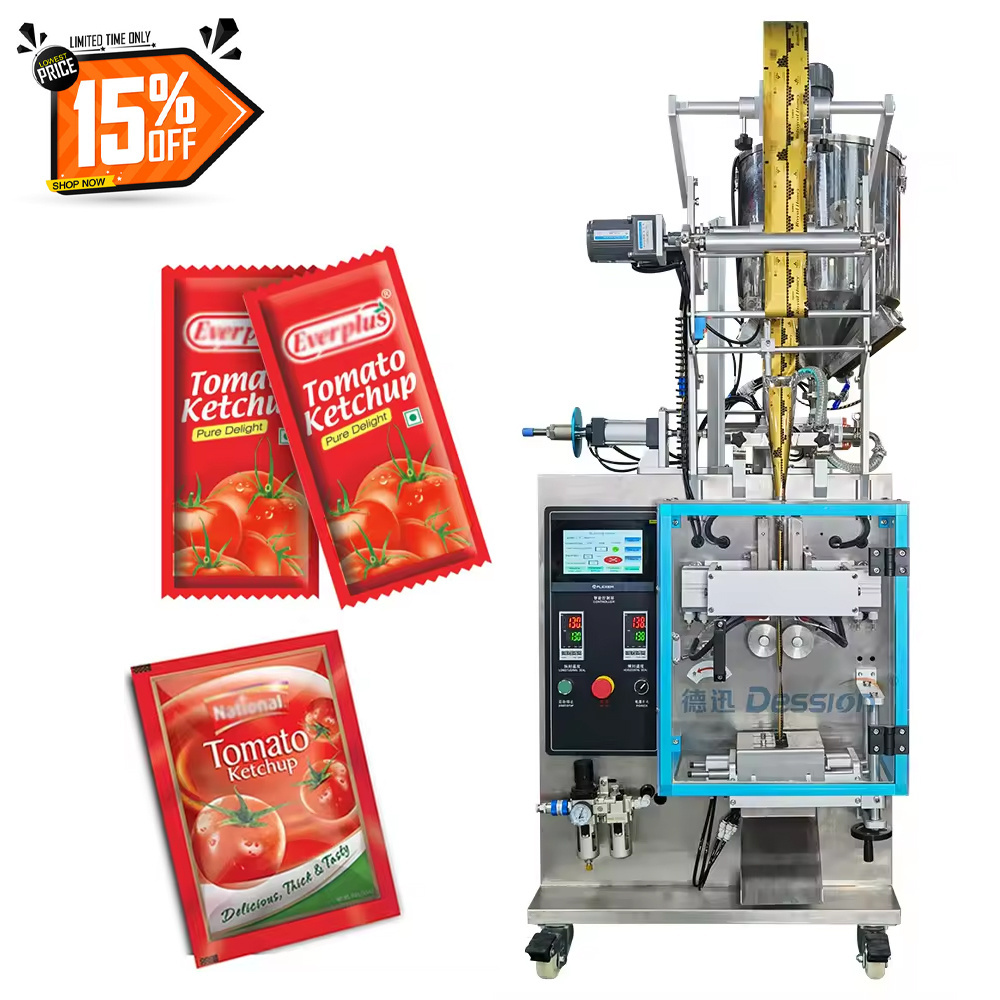

Dession DS-200Y liquid packing machine can packing the liquid or paste of foodstuff, chemicals and cosmetics.

Such as shampoo, edible oil, cream, tomato paste, honey, juice. etc.

According to customer needs,the bag types can be changed：back seal, three sides seal, four side seal.

Machine Parameters

Measuring	Liquid Metering Pump
Bag Shape	Back Sealing / 3 sides sealing/4 sides sealing
Packing Speed	30-80bags/min
Roll Width	Max.200mm
Bag Length	30-180mm
Bag Width	15-100mm
Machine Size	L)700W)600H)1600mm
Machine Weight	300kg
Power	220V,50HZ,1.2KVA
Optional Device	Air-filling device, Punching device

Machine Characteristic

1.The section where the material contact is stainless steel as the body of machine is optional for complete orpartial stainless steel and all out equipments have passed the CE Standard.
2.High-sensitivity photoelectric color tracing and digital input of cutting position get more accuracy.
3.Embedded sealing , enhanced structure of heat sealing intelligent temperature controller and excellent heat balance make all kinds of packaging materials possible with good performance, low noise, clear cutting pattern and strong sealability.
4.Packaging speed and length of bags can be set to some extent without further adjustment and parts changing. Packaging speed and length of bags can be set to some extent without further adjustment and parts changing.

Machine Certificate

Machine Deatils

For liquid packaging applications, the liquid packaging machine offers precision, speed and versatility when handling liquid.

Our automatic liquid packaging machine includes stainless-steel construction, easy-to-remove tooling and hopper allow for simple cleaning and maintenance.

Machine Control Center

Human machine Interactive interface. Easy to control and adjust.

The language is customized according to customer specific requirement.

Independent temperature control device for each part of the machine, easy to adjust.

Liquid Metering Pump

Adopt liquid metering pump filling device. Can be widely used in liquid. Adjust the filling weight and filling speed of the liquid by adjusting the air pressure. The accuracy can reach ±1%.

Bag Former Device

Customized bag former according to the packaging size required by the product. If you need to use a different bag width, you just need to change it, the operation is simple.

Middle End Heating Sealing Device

Through independent control on the temperature control device, when using different packaging materials, it can be adjusted according to its melting point to ensure good sealing of the bag.

End Sealing Bag Cutting Device

The unit also has an independent temperature control unit for easy control. The cutter unit can be changed to change different incision types as required. Hole punching devices are also available to give your product variety.

Why Choose Us

FAQ

Q1: Customer: How do I find a Packing machine model suitable for my product?
1. What kind of product you have.
2. The bag/sachet/pouch size ( the length, width).
3. The weigh of your product for each bag is sometimes neccessary told(it depends what specific product you have).
4. Your requirement for the machines and the bag types.

Q2: Customer: How about the delivery time?
All our machines are tailor-made because different clients have different requirements, delivery will be within 20 days for the small packing machines.For the large-scale machine, it takes longer.

Q3: Customer: Can you offer some video or pictures of the packing machine?
Yes, of course. Besides, we can help you to have your products packaging if you are available to send us some of your product and then record a video for you reference.

Q4: Customer: How about the after-sales service? ( Buy machine here? Don't Worry! )
1. With professional after-sales service team, we can provide you with a satisfied and technical service no matter which country you are in.
2. Any videos of packing machine installation, adjusting, setting, maintenance are available for any buyer.
3. If you got any problem when using the machine and the videos can not help, our technician will have video chatting with you to fix your problem.
4. Warranty : 2 years(Electric accessories) and free life time maintenance.
(Notice: In order to save your cost, we offer various video chatting service for you, but if you insist on the service oversea, the travel expense and technician cost will paid by you.)
