ISO Standard
We will provide CSC Certificate.Customer could use our container to load their cargoes.
Fast Delivery
Usually, we could supply ISO containers from stock.
Stock in Main ports of China
We can provide containers in all chinese ports. Also we could arrange delivery to named address.
- Product Details
- {{item.text}}
Quick Details
-
Internal Dimensions(l x W x H)(mm):
-
5468*2294*2273mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jiaking
-
Certification:
-
ISO9001
-
Product Name:
-
20ft 40ft Freezer Refrigerator Container
-
Color:
-
white
-
Port:
-
Tianjin Shanghai Ningbo Qingdao Port
-
Function:
-
Freezing
-
machine avaliable:
-
Daikin, Carrier, Thermo King
Quick Details
-
Type:
-
Reefer Container
-
Capacity:
-
33.2
-
External Dimensions(l x W x H)(mm):
-
6058*2438*2591mm
-
Internal Dimensions(l x W x H)(mm):
-
5468*2294*2273mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jiaking
-
Certification:
-
ISO9001
-
Product Name:
-
20ft 40ft Freezer Refrigerator Container
-
Color:
-
white
-
Port:
-
Tianjin Shanghai Ningbo Qingdao Port
-
Function:
-
Freezing
-
machine avaliable:
-
Daikin, Carrier, Thermo King

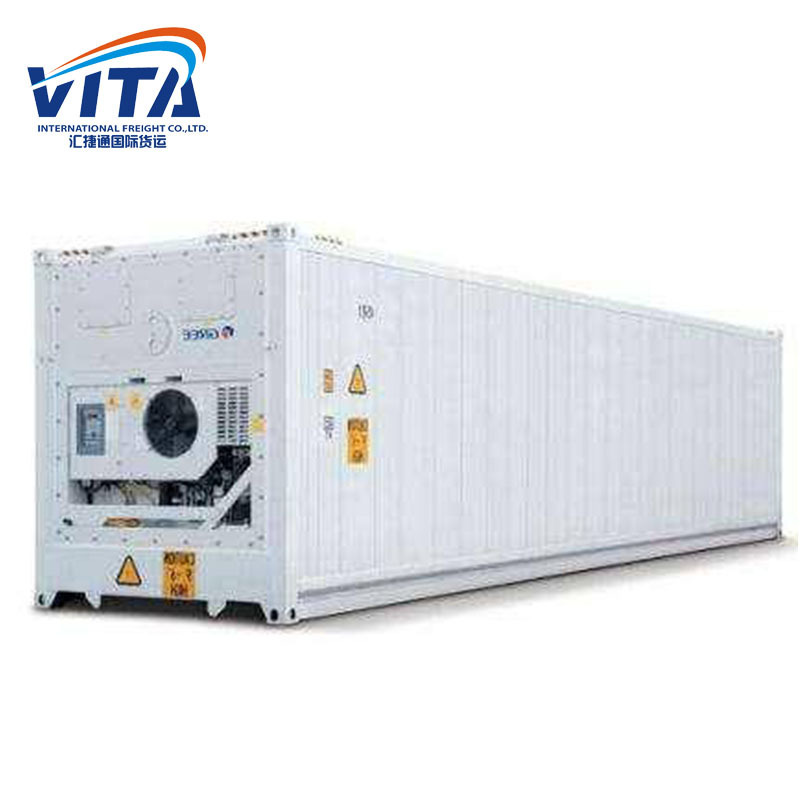

20RF
Reefer container
Thermo King
The container is to be designed and manufactured for the carriage of refrigerated (frozen, chilled) foodstuffs and general cargo by land (on road or rail) and by sea (above or below deck) throughout the world.
A mechanical refrigeration unit of a “one piece picture frame type" will be fitted to the front end frame in order to control the inside temperature.
Standard reefer containers have the advantages of light weight, high strength and good thermal insulation performance. Variety design can meet the customer’s different needs. At present, we can provide customers with pure cyclopentane, mixed foaming, 245fa and other environmental blowing agent reefer containers. At the same time, we can also provide FRP liner, butt welding aluminum 1iner, high strength steel frame and other lightweight refrigerated reefer design.
Specification Parameter
|
20RF Reefer Container
|
|
|
|
|||
|
95 CODE
|
|
20RF
|
|
|||
|
Classification
|
Length
|
Width
|
Heigth
|
|||
|
External
|
6058mm (0-10mm Deviation)
|
2438mm(0-5mm deviation)
|
2571mm(0-5mm deviation)
|
|||
|
Internal
|
5456mm(0-5mm deviation)
|
2294mm(0-5mm deviation)
|
2273mm(0-5mm deviation)
|
|||
|
End door
|
|
2290mm(0-5mm deviation)
|
2264mm(0-5mm deviation)
|
|||
|
Max Gross Weight
|
|
|
30480kgs
|
|||
|
*Tare Weight
|
|
|
2500kgs
|
|||
|
*Max Payload
|
|
|
27520kgs
|
|||
|
Internal Cubic Capacity
|
|
|
28.4cubic meter
|
|||
|
Refrigeration range
|
-30 to 30 degrees
|
Voltage
|
-30 to 30 degrees
|
|||
|
Phase
|
3
|
hertz
|
50/60
|
|||
|
*Remark: Tare and Max Payload will be different produced by different manufactorer
|
|
|
|
|||
Container Pictures
20RF -Carrier
"Shipment: The second-hand freezer must be loaded with dry goods for export. When the ordinary SOC cabinet comes for inquiry, the cooler must be shut off during transportation.
Warranty: There is no warranty for the used freezer. After the customer pays, the cooler and refrigeration will be checked and video will be taken for the customer to confirm before taking delivery.
20RF -THERMO KING (TK)
Special Application Scenarios
● Storage usage ● Sea transportation
● Transportation of valuable equipment
● Converted into a house
● Converted into an office
FAQ
A: Yes, we have, we have new and used 20FR/40FR containers over each main port of china.
Q: whats the condition for used 20FR?
A: its without hole, damage and reefer cold machine good working. We will send testing video to you before shipment
A: its without hole, damage and reefer cold machine good working. We will send testing video to you before shipment
Q: whats brand of reefer?
A: Carrier and TK are famous over the world brand of reefer container machine. Which one do you prefer like?
A: Carrier and TK are famous over the world brand of reefer container machine. Which one do you prefer like?
Q: How about the warranty?
A: Used reefer container cold machine is no warranty. But new reefer container have 5 years warranty. But Carrier and TK have many aftersale services position over the world.
A: Used reefer container cold machine is no warranty. But new reefer container have 5 years warranty. But Carrier and TK have many aftersale services position over the world.
Q: Can I get a container with my logo and color?
A. Used container cannot customized color,but could offer re-painting services. Cannot customized logo.
Q: What's your MOQ?
A: 1 piece .Discount for more pieces.
Q: Can I use your container to load my goods?
A: Sure. It's called SOC. Our containers are available in Shenzhen,Tianjin, Qingdao, Shanghai, Ningbo and Guangzhou.
Q: How can I sure that quality?
A: We could take the video for testing container for you reference.
Contact Us
Our Service
JIAKING has a stable system of overseas agents and professional service staff.The international agency network covers Europe,America, Australia, SoutheastAsia and the Middle East.which makes your shipment goes on smoothly with a safe and economic way.
|
Domestic service area
|
|
|
|
上海Shanghai
|
天津Tianjin
|
|
|
大连Dalian
|
深圳Shenzhen
|
|
|
厦门Xiamen
|
青岛Qingdao
|
|
|
香港Hongkong
|
宁波Ningbo
|
|
|
广州Guangzhou
|
南京Nanjing
|
|
About Us
Shenzhen Jia King Import & Export Co., Ltd.
Jiaking sells many kinds of the containers,Including new and used,Dry and reefer,standard and customized.
Dry container including : 20GP,40GP,40HQ,45HQ
Reefer container including:20RF,40RF (Carrier & TK & Dakin)
Customized container including:Side open doors / Both end open doors
Also supply customized service,Like nominated color,add logo,exterior and interior renovation and international shipping service
We are not the manufactorer,But our advantage is :
1.Support small quantity ,MOQ is 1pcs;
2.Profession on shipping request,supply more safe shipping advise;
3.Good communication with your shipper or forwarder to hand over the container smoothly
4.17 years shipping experiences to make the container deliver more easy.
