Blue Times Yongli manufacturer 100w 130 watt laser diode red laser pointer applied to co2 laser tube

Blue Times Yongli manufacturer 100w 130 watt laser diode red laser pointer applied to co2 laser tube

FOB Reference Price: Get Latest Price

≥1 Sets

US $350

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Blue Times

Weight (KG):: 10 KG

Product name:: Co2 laser tube

Laser type:: Co2 laser

Wavelength:: 10.64

Brand:: Blue Times

Power:: 180W

Material:: glass

Model:: A8s

Diameter:: 1850mm

Application:: laser cutting , engraving ,welding

Keywords:: High-accuracy

Quick Details

Place of Origin:: Jilin, China

Spare Parts Type:: Co2 laser tube

Marketing Type:: Hot Product 2022

Brand Name:: Blue Times

Weight (KG):: 10 KG

Product name:: Co2 laser tube

Laser type:: Co2 laser

Wavelength:: 10.64

Brand:: Blue Times

Power:: 180W

Material:: glass

Model:: A8s

Diameter:: 1850mm

Application:: laser cutting , engraving ,welding

Keywords:: High-accuracy

Blue Times Yongli manufacturer 100w 130 watt laser diode red laser pointer applied to co2 laser tube

Products Description

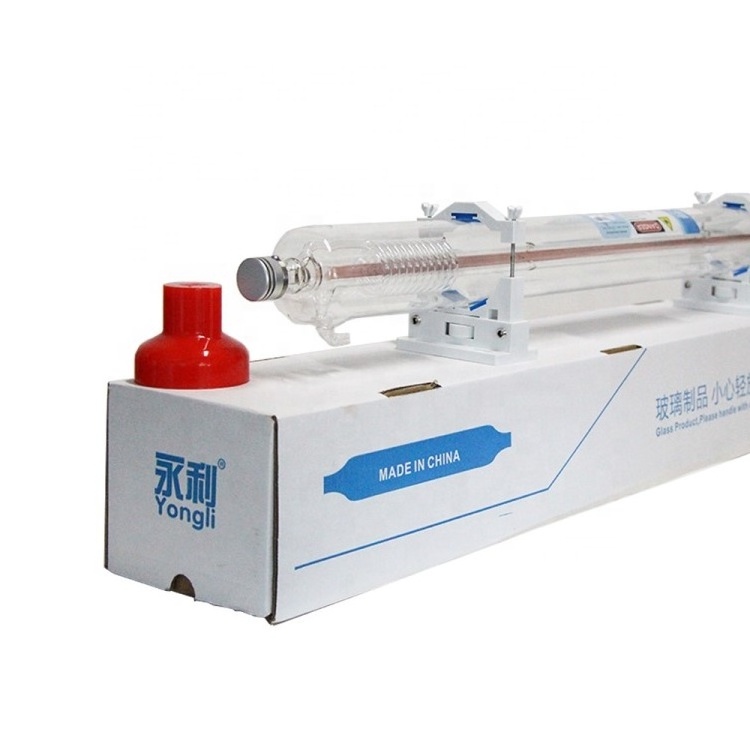

Yongli As series high quality Long service life Co2 laser tube superior design

YongLi As Series Co2 Laser Tube represent the highest standard in DC laser tube technology. Each tube is thoroughly tested for quality and agreed power ratings. CO2 tubes are metal sealed, water cooled, with one of the best life time ratings of up to 12,000 hours.

The As series is the most advanced laser tube series of our company. It adopts its own patented technology to effectively correct the diameter and quality of the output spot with physical methods to increase the power while solving the problem of spot mode changes.

Imported raw materials are safe and reliable, the coating technology is upgraded, the gas purity is improved, the working time is longer, and the working quality is more stable.

Product Paramenters

Laser Tube Model	A0s	A1s	A2s	A4s	A6s	A8s
Length (mm)	600	1100	1250	1450	1650	1850
Diameter (mm)	80±2	80±2	80±2	80±2	80±2	80±2
Rated Power (watts)	28	70	90	100	130	150
Max Power (watts)	30	90	100	130	160	180
Ignition Voltage (kV)	12	20	25	28	30	34
Working Voltage (kV)	8	15	18	19	21	22
MAX Working Current (mA)	20	22	26	28	30	35
Power Instability(%)	≤±5	≤±5	≤±5	≤±5	≤±5	≤±5
catalyst	Yes	Yes	Yes	Yes	Yes	Yes
Working Lifespan	12,000h	12,000h	12,000h	12,000h	12,000h	12,000h
Warranty (months)	6	10	12	12	12	12
Gross Weight	3	4	4	4.5	5.2	6.9
Package Dimension(LWH) (cm)	82x36x36	1291412	1361815	1571815	1761815	2072623

Product Details

YOUR BEST CHOICE FOR THE REPLACEMENT LASER TUBE

Get the security of knowing you have maximum power from any tube purchased from BlueTimes Int.Co.Ltd; Laser Tech. We use watt readers to confirm a quality spot spot and wattage. Most glass CO2 laser tubes are under powered by at least 15%. Tube and power supply testing ensures you get 100%+ power. Metal sealed 70 watt output CO2 laser tubes can quickly be installed on most CO2 laser machines. Call us if you need help.

Original Patented Manufacturing Process : YongLi As series 80W 90W 100W 130W 150W co2 laser tube are designed, engineered, and built with safety and reliability in mind. We use parts from the world’s leading suppliers and build the co2 laser tube to international standards. Using original Catalytic technology to get perfect laser spot, stable power rates, and long life span.
Worry Free Shipment : All As Co2 laser tubes for co2 laser cutting machine have commercial insurance before shipping to you, if there is any broken in transport,we will send the new one free again depend on the broken photos and damage report from the courier.
High-Quality Optics : The YongLi co2 laser tubes for co2 Laser Engraver Cutter Engraving Machine are equipped with top-quality, American II-VI lenses to achieve strong and stable output power and good laser beam mode. Imported tube ensures a Stable cavity structure.
High quality laser beam and high power output ; Double laser cutting speed, service life is about 10000-12000 hours longer than ordinary laser Glass Tube. We have 12 months warranty for YongLi As Series laser tube;
High Efficient Nano Catalyst Coated : * Unique laser coating technology enhances the co2 laser tubes power and improves its service life time, co2 laser cutting speed ,quality of laser beam, and last-longer than other ordinary CO2 laser tubes. 30% lower of the maintenance cost.

YONGLI As Series CO2 Laser Tube Structure

1. High voltage sheath : Seal the High pressure sheath with plastic wrap to prevent dust from entering and causing wet ignition.
2. Positive Electrode Terminal ：Full Metal head structure, Special heat dissipation process to greatly reduce lens operating temperature. Adapting new unique screws wiring method, easy to connect and disassemble .
3. Water Inlet/Outlet :During installation,the water outlet mouth must upward, and always make sure that the water circulation is Low IN High OUT.
4. Negative Electrode Terminal: equipped with high quality, American II-VI lens to achieve strong and stable output power and best lase beam mode.
5. Extended Protection Tube for Output Lens Protection : The extended protection tube is recommended when Multi-layer plywood, PVC materials are to be cut. The extended protection tube should be installed to avoid laser lens damage or laser power reduction caused by dust contaminating or laser tube heads temperature increasing

Electrode

CO2 laser instruments generally adopts the cold cathode cylindrical shape, the negative pole material selection has great influence on life-span; and the basic requirement is to keep a low sputter rate, small gas absorption rate and to use nickel as metal material.

4th Gen Nano Gold Coating Technology

We adopted a new production and sealing technique to fill the laser tube with CO2, to guarantee its high quality and stability.

AsSeries Co2 laser tube is very popular to cut thick materials, with a lifespan of 12,000 hrs and a power between 40W-180W.

World-Class Manufacture Standard Laser Tube

To prevent dust from entering the vicinity of the electrode inside the high-pressure jacket, wrap the plastic wrap around the
high-pressure jacket. * Faster cutting and engraving of materials
* Deeper and cleaner cuts
* Better laser beam quality for more crisp cutting or engraving
* Up to 12,000 hour life span
* High power and high stability
* Sunlite Lasers from YONGLI Laser Group Technology, which is well known for making high quality and long lasting CO2 laser tubes.

INDIVIDUAL LABEL ENSURE QUALITY FOR EACH TUBE

YongLi strictly selection of domestic and international suppliers of high-quality materials.With advanced production processes, first-class production equipment, stringent testing standards for co2 customers around the world to provide high-quality CO2 glass laser tubes.

YongLi as a professional Manufacture of CO2 laser application,customized development processes and
technologies for different fields.

TOP 3 CO2 LASER TUBE MANUFACTURE IN CHINA

YongLi Laser is certified ISO 9001:2015, giving our customers the assurance that our business processes are both well-documented and conform to the same standards of quality upheld by most of the world’s largest and most highly-regarded companies.
Our key components are tested or burned-in for
hundreds of hours, and in the end, we only use the best components that have passed our stringent control standards.

Product Advantages

PERFECT REPLACEMENT LASER TUBE FOR ALL CUTTING ENGRAVING MACHINE with 12 month Warranty

YongLi Top Class As series Co2 Laser Tube is Universal model, it’s a great replacement for the same power or same length laser tube on the Laser Cutting Machine or Co2 Laser Engraving Machine.

No matter how well maintained, laser tubes—like light bulbs—are temporary parts that eventually burn out.

Replace your old tube with The High Qulity As Series laser tube. Made of tough German Schott imported glass raw, this durable long service life As series CO2 laser tube leaves competitors behind. Designed for medium to large-sized CO2 laser cutting engraving machines
Order today knowing your purchase is protected by YongLi good name, premium materials, and superior craftsmanship.

CO2 LASER INDICATOR

Equipped with threaded poles to attach a red laser guidance system (not included) that allows easy mirror alignment. No more taping your mirrors!

Note: The Red Dot Laser Pointer is not universal model and it can not be compared with other brands laser tubes. It could only work on YongLi As/ H series Co2 Laser Tube

USER-FRIENDLY EASY TO INSTALL CO2 LASER TUBE

EASY TO INSTALL: The preinstalled YongLi cathode and anode terminal connections with a full metal structure allow safer and faster replacement. It installs quickly and easily: just wrap your power supply's connecting wires around the anode and cathode's connections and hook your water cooling system to the pipe fittings at either end.
SAFE AND SOUND: The inner tube for the engraving laser beam is surrounded by built-in water tubing and a hermetically sealed outer tube to keep it cool and high functioning. Ports at either end allow easy connection with your water pump or industrial water chiller, and a protective cap shields the high-voltage anode from any shorts or arcing.

Why Choose Us

YongLi's Unique Technology Platform

YongLi's unique technology platform allows our products to have higher output powers and superior beam quality at a lower cost than can be achieved by any other competing technology. Our proprietary designs are based around innovative pumping techniques and high-performance components perfected by YongLi over a 30-year period of intense investment and innovation. The cornerstones of
YongLi Laser technology are our cladding side-pumping technique and distributed single-emitter diode pumping architecture.

Our Core Values

Our highly engineered component and sub-system solutions, and deep expertise in advanced photonics, vision and precision motion make us the global technology partner of choice for medical and advanced industrial OEMs.Building a high-performing culture enables us to achieve our growth goals.
It starts with cohesive teams that are engaged an aligned around our vision and strategy, and who live our values and drive performance through the YongLi Growth System, which is a common set of tools and processes for continuous improvement.

Applications

YongLi 40w 80w 100w 150w 180w Co2 Laser Tube Application

For CO2 laser engraving,it is popular in the filed of non-metal processing and some sheet metal processing. It has a wide application. It can be applied to below industries and materials.
Industries : Mould industry (construction mould, aviation and navigation mould, wooden mould), advertising, decoration, arts and crafts, electronics, electric appliances, etc.

LASER CUTTING ENGRAVING SOLUTIONS

Materials : Materials such as acrylic, wood planks(light planks, candlenut wood),metal sheet, bamboo ware, double color board, paper, leather, shell, conconut shell,ox horn, resin animal grease, ABS board,lamp shade, etc.

YongLi 40-180w co2 laser tube is a perfect laser tube for everything from home use to starting a
business. As series co2 laser tube provides the laser cutting engraving machine with high quality engraving and cutting at a low cost.
YONGLI As Series CO2 laser tube are widely used in industrial production, national defense, scientific research, medical science and other fields, such as metrology, material processing, laser medical treatment, laser communication, energy and so on.
