Quick Details
-
Warranty:
-
10 years quality, 25 years output power warranty
-
Brand Name:
-
JA/Longi/Trina
-
Model Number:
-
TNM-410
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2024*1004*35mm
-
Item:
-
JA/Longi/Trina photovoltaic panel solar panel 400/405/410 watt
-
Weight(kg):
-
22.8
-
Cable Cross Section size:
-
4mm2
-
Junction box:
-
IP 68, 3 diodes
-
Connector:
-
Trina TS4
-
Maximum System voltage:
-
15000V
-
MAximum Sewries Fuse:
-
20A
-
Maximum static load, Front:
-
5400 Pa
-
Maximum static Load, back:
-
2400 Pa
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO
Quick Details
-
Cell size:
-
158.75mmx158.75mm
-
Type:
-
PERC, Half Cell
-
Panel Efficiency:
-
19-20.4%
-
Warranty:
-
10 years quality, 25 years output power warranty
-
Brand Name:
-
JA/Longi/Trina
-
Model Number:
-
TNM-410
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2024*1004*35mm
-
Item:
-
JA/Longi/Trina photovoltaic panel solar panel 400/405/410 watt
-
Weight(kg):
-
22.8
-
Cable Cross Section size:
-
4mm2
-
Junction box:
-
IP 68, 3 diodes
-
Connector:
-
Trina TS4
-
Maximum System voltage:
-
15000V
-
MAximum Sewries Fuse:
-
20A
-
Maximum static load, Front:
-
5400 Pa
-
Maximum static Load, back:
-
2400 Pa
-
Certificate:
-
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO

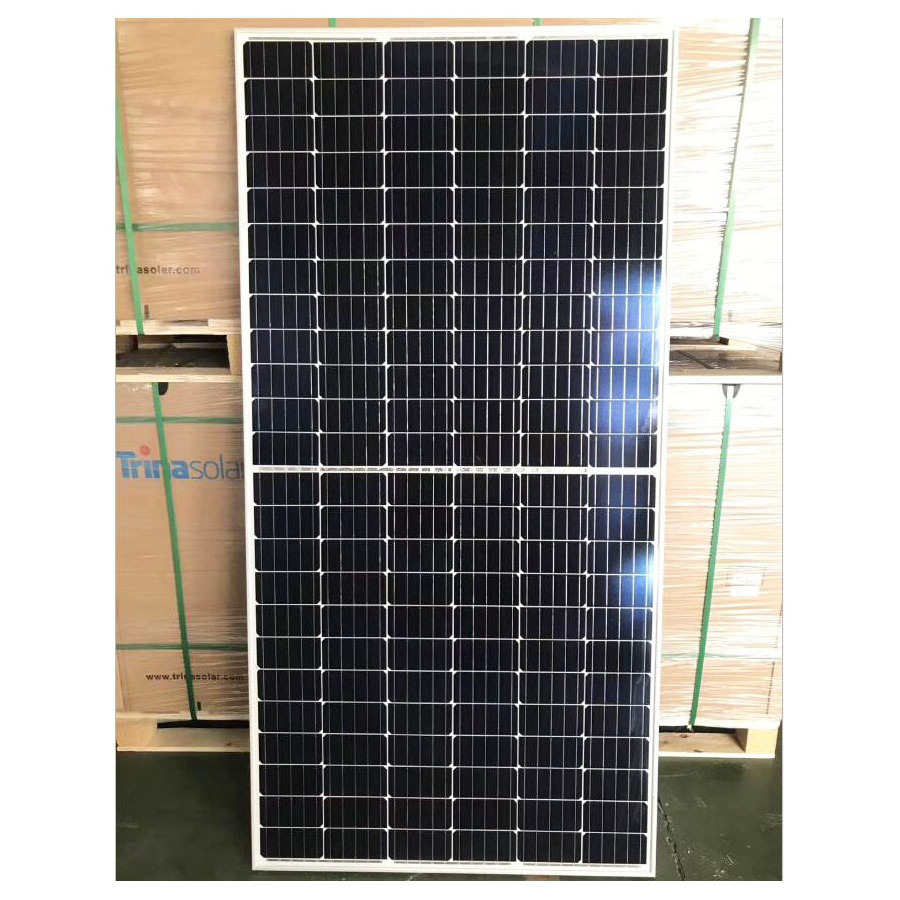

JA/Longi/Trina photovoltaic panel monocrystalline solar panel 400/405/410 watt
Datasheet
| Type | TSM-380DE15H(II) | TSM-385DE15H(II) | TSM-390DE15H(II) | TSM-395DE15H(II) | TSM-400DE15H(II) | TSM-405DE15H(II) | TSM-410DE15H(II) |
| Rated Maximum Power(Pmax) [W] | 380 | 385 | 390 | 395 | 400 | 405 | 410 |
| Open Circuit Voltage(Voc) [V] | 48.1 | 48.5 | 49.7 | 50.1 | 50.4 | 50.8 | 51.2 |
| Maximum Power Voltage(Vmp) [V] | 39.6 | 40.1 | 40.5 | 40.8 | 41.1 | 41.4 | 41.7 |
| Short Circuit Current(Isc) [A] | 9.99 | 10.03 | 10.08 | 10.13 | 10.18 | 10.23 | 10.29 |
| Maximum Power Current(Imp) [A] | 9.59 | 9.61 | 9.64 | 9.69 | 9.74 | 9.79 | 9.84 |
| Module Efficiency [%] | 18.7 | 18.9 | 19.2 | 19.4 | 19.7 | 19.9 | 20.2 |
| Power Tolerance | 0~+5W | ||||||
| Temperature Coefficient of Isc(α_Isc) | +0.04%/℃ | ||||||
| Temperature Coefficient of Voc(β_Voc) | -0.26%/℃ | ||||||
| Temperature Coefficient of Pmax(γ_Pmp) | -0.36%/℃ | ||||||
| STC | Irradiance 1000W/m², cell temperature 25℃, AM1.5G | ||||||
