Quick Details
-
Place of Origin:
-
China Shenzhen
-
Brand Name:
-
sribo
-
Model Number:
-
JGA12-N20 With Encoder
-
Torque:
-
0.3(NM)
-
Product Name:
-

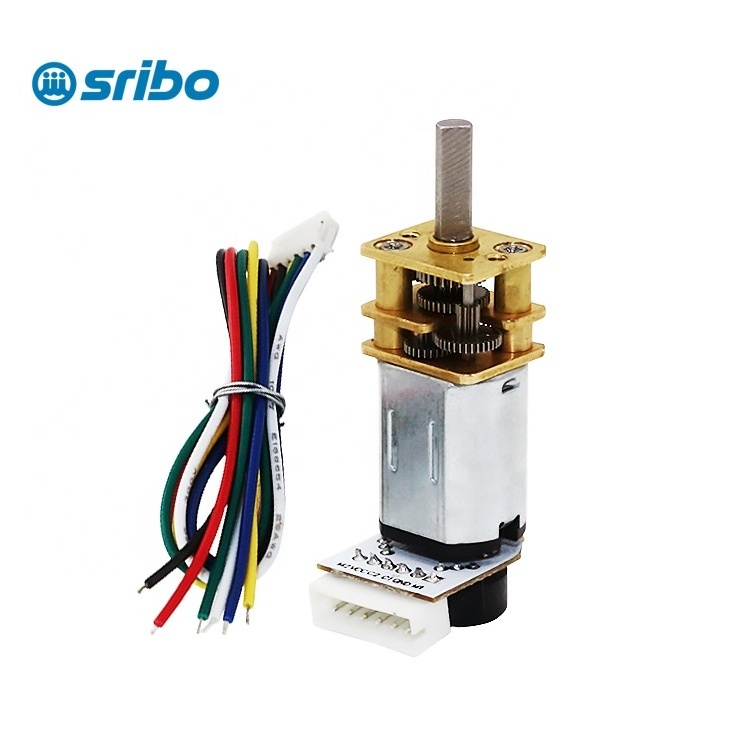

JGA12-N20 spur gear motor with encoder
-
Motor Type:
-
Brushed DC Motor
-
Reducer Size:
-
12mm*10mm*9mm
-
Reducer Shaft Length:
-
10mm
-
Reducer Shaft Diameter:
-
3mm
-
Reducer Shaft Type:
-
D-Shaft(Milling edge 0.5mm)
-
Material:
-
Metallic material
-
Weight:
-
13g
-
Basic pulse number:
-
7PPR
-
Feature:
-
Small size, high torque, low noise, adjustable speed, CW/CCW
Quick Details
-
Speed(RPM):
-
10~1000(rpm)
-
Continuous Current(A):
-
0.2(A)
-
Efficiency:
-
IE 2
-
Place of Origin:
-
China Shenzhen
-
Brand Name:
-
sribo
-
Model Number:
-
JGA12-N20 With Encoder
-
Torque:
-
0.3(NM)
-
Product Name:
-
JGA12-N20 spur gear motor with encoder
-
Motor Type:
-
Brushed DC Motor
-
Reducer Size:
-
12mm*10mm*9mm
-
Reducer Shaft Length:
-
10mm
-
Reducer Shaft Diameter:
-
3mm
-
Reducer Shaft Type:
-
D-Shaft(Milling edge 0.5mm)
-
Material:
-
Metallic material
-
Weight:
-
13g
-
Basic pulse number:
-
7PPR
-
Feature:
-
Small size, high torque, low noise, adjustable speed, CW/CCW
| Model | Voltage | Reducer | No Load | Rated Load | Instant allowable torque | Hall feedback resolution | ||||
| Ratio | Size"L" | Speed | Current | Speed | Current | Torque | ||||
| V | 1:00 | mm | rpm | mA | rpm | mA | Kgf·cm | Kgf·cm | ||
| 08200E | DC3V | 10 | 9 | 780 | ≤30 | 450 | ≤90 | 0.03 | 0.08 | 19.36 |
| 30 | 9 | 265 | ≤30 | 150 | ≤90 | 0.1 | 0.23 | 58.94 | ||
| 50 | 9 | 155 | ≤30 | 90 | ≤90 | 0.17 | 0.4 | 102.2 | ||
| 100 | 9 | 77 | ≤30 | 45 | ≤90 | 0.35 | 0.75 | 198.6 | ||
| 150 | 9 | 52 | ≤30 | 30 | ≤90 | 0.5 | 1.1 | 301.9 | ||
| 210 | 9 | 37 | ≤30 | 21 | ≤90 | 0.7 | 1.5 | 419.5 | ||
| 298 | 9 | 26 | ≤30 | 15 | ≤90 | 1 | Not allowed to exceed 2.8Kg.cm | 595.8 | ||
| 380 | 9 | 20 | ≤30 | 12 | ≤90 | 1.2 | 758.3 | |||
| DC6V | 10 | 9 | 1550 | ≤60 | 900 | ≤170 | 0.07 | 0.16 | 19.36 | |
| 30 | 9 | 530 | ≤60 | 300 | ≤170 | 0.2 | 0.45 | 58.94 | ||
| 50 | 9 | 310 | ≤60 | 180 | ≤170 | 0.35 | 0.8 | 102.2 | ||
| 100 | 9 | 155 | ≤60 | 90 | ≤170 | 0.7 | 1.5 | 198.6 | ||
| 150 | 9 | 105 | ≤60 | 60 | ≤170 | 1 | 2.2 | 301.9 | ||
| 210 | 9 | 75 | ≤60 | 42 | ≤170 | 1.4 | Not allowed to exceed 2.8Kg.cm | 419.5 | ||
| 298 | 9 | 52 | ≤60 | 30 | ≤170 | 2 | 595.8 | |||
| 380 | 9 | 41 | ≤60 | 24 | ≤170 | 2.5 | 758.3 | |||
Note: The axis can be customized.
Common applications:
1. Household applications: white goods, small appliances, fans, electric screens, automatic window opening, floor cleaning robots, vacuum cleaners, smart home systems.
2. Medical applications: medical pumps, sphygmomanometers, surgical tools, medical agitators, centrifuges.
3. Power tools: air pump, water pump, vacuum pump, oxygen generator, electric drill, electric screwdriver.
4. Commercial equipment: printers, copiers, shredders, projectors, scanners, cash registers, vending machines.
5. Personal care: hair dryer, electric shaver, beauty product, hair curler, steam hair straightener (water jet straight hair outlet).
6. Health field: massager, adult toy.
7. Security field: surveillance system, camera, safe.
8. Industrial applications: robotic arms, printing equipment, automation equipment.
9. Other applications: electronic door locks, smart switches, robots, toys, smart cars, boats, intelligent wear, electronics, DIY, etc.
Notice:
Hello, I am very happy to see our products. We are professional motor OEM/ODM manufacturers, and have nearly 11 years of production and R&D experience. We have our own factory and technical engineers. We are located in Shenzhen, China, If you are interested in our products, there are any motor customization needs, welcome to contact us , our professional services to answer your questions.
