Quick Details
-
Battery Size:
-
Lithium ion battery equipment
-
Place of Origin:
-
Shandong, China
-
Weight:
-
800kg
-
The charging ratio:
-
30c
-
The discharge rate:
-
15c
-
Type:
-
Li-Ion
-
Working Voltage:
-
110VAC or 220VAC, 50/60Hz, Single Phase
-
Max. Power Consumption:
-
1.7KW
-
Glove Box Chamber:
-
1220*750*900mm
-
Product name:
-
less than 1ppm
-
Leakage rate of box:
-
0.001vol%/h
-
Inclined window:
-
sight safety glass, thickness 8 mm
-
Dust filter:
-
0.3 micron
-
Features:
-
Glove Box With Gas Purification System
Quick Details
-
Application:
-
Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
-
Brand Name:
-
GELON
-
Model Number:
-
GN-GB-1
-
Battery Size:
-
Lithium ion battery equipment
-
Place of Origin:
-
Shandong, China
-
Weight:
-
800kg
-
The charging ratio:
-
30c
-
The discharge rate:
-
15c
-
Type:
-
Li-Ion
-
Working Voltage:
-
110VAC or 220VAC, 50/60Hz, Single Phase
-
Max. Power Consumption:
-
1.7KW
-
Glove Box Chamber:
-
1220*750*900mm
-
Product name:
-
less than 1ppm
-
Leakage rate of box:
-
0.001vol%/h
-
Inclined window:
-
sight safety glass, thickness 8 mm
-
Dust filter:
-
0.3 micron
-
Features:
-
Glove Box With Gas Purification System

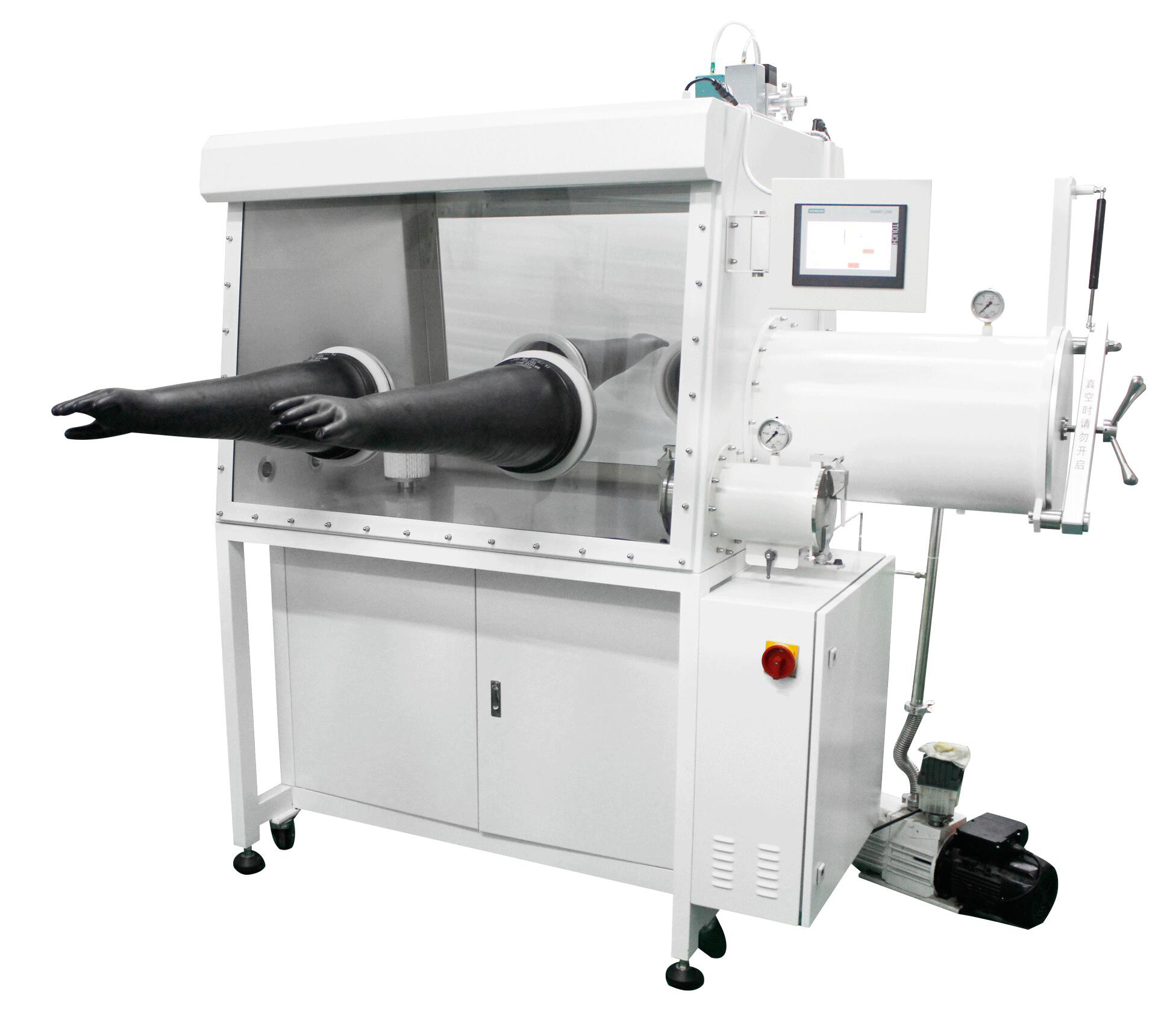

Glove Box for Lithium Battery, Vacuum Glove Box With Gas Purification System
Single workstation system, with integrate Gas purification system(1 absorber), with PLC and HMI, incl. In and outward transfer automation, vacuum pump, integrated in pedestal single closed case, inclined operation sides and replaceable sight glass. In standard case that is 200C constant temperature, 1 standard atmosphere pressure, relative humidity(RH) is 65%, 99.999% inert gas supply, H2O, O2<1ppm.
Main Data:
1. Moisture and Oxygen Index:less 1 ppm;
2. Box Body
Main body:
2.1 Material:304st.st.,Thickness: 3mm
2.2 Internal surface:Stainless steel wiredraw treat Outside surface:Painting,White
2.3 Inner Dimension: L: 1220mm Depth:750mm;H: 900mm
2.4 Gradient window, tempering glass, thickness: 8mm
2.5 Gloves Hole: Anodised Aluminium, O ring enclosed
2.6 Gloves: Butyl Rubber, thickness: 0.4mm, Dia.: 7", Length: 32".
2.7 Filter: 0.3 micron (0.12 micron optional), 1 gas entrance and 1 gas exist. Shelf: St. steel, 2 levels
2.8 Box lighting: Fluorescent lamp, set above the window.
2.9 Connector: 3 spare connectors, DN 40KF. 1 Power interface (220V)
3. Big Passing Box:
3.1 Passing Box:
Dimension:Dia.: 360mm,L: 600mm
Material:304 St. steel.
Internal surface:Stainless steel wiredraw treat
3.2 Small passing box:
Passing box:
Dimension:Dia.: 100mm, L: 300mm
Material:304 St. steel.
Internal surface:Stainless steel wiredraw treat Outside surface:Painting,White)
Machine Parts
Name: Oxigen analyzer
Original: China
supply voltage: 24V DC±10%
dimensions: L 190*W 80*D 58mm
operating temperature: +15℃~+35℃
pressure: 800~1200hPa(absolute pressure)
effective range: 0~1000 ppm(V) oxygen
Machine parts
Name:
Moisture analyzer
Original: China
supply voltage: 24V DC±10%
dimensions: L 205*W 80*D 60mm
operating temperature: +15℃~+27℃
pressure: 800~1200hPa(absolute pressure)
effective range: 0~500 ppm(V) oxygen
