Quick Details
-
Size:
-
12500X2500X1550MM
-
Place of Origin:
-
Shandong, China
-
After Sales:
-
1 Year
-
Axle:
-
Fuwa
-
Main Beam:
-
Hight:500mm Upper 12 Lower 14 Mid 8 mm
-
Function:
-
Loading 2x20ft or 1x40ft Container
-
Suspension:
-
Heavy Duty Mechanical Suspension
-
Tire:
-
825R20 10.00R20, 11.00R20 (BY NEEDS)
-
Landing Gear:
-
28t Heavy Duty Landing Gear
-
Braking System:
-
WABCO
-
Condition:
-
Brand-new
-
Certification:
-
ISO CCC BV
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
60Tons
-
Brand Name:
-
Eleph
-
Size:
-
12500X2500X1550MM
-
Place of Origin:
-
Shandong, China
-
After Sales:
-
1 Year
-
Axle:
-
Fuwa
-
Main Beam:
-
Hight:500mm Upper 12 Lower 14 Mid 8 mm
-
Function:
-
Loading 2x20ft or 1x40ft Container
-
Suspension:
-
Heavy Duty Mechanical Suspension
-
Tire:
-
825R20 10.00R20, 11.00R20 (BY NEEDS)
-
Landing Gear:
-
28t Heavy Duty Landing Gear
-
Braking System:
-
WABCO
-
Condition:
-
Brand-new
-
Certification:
-
ISO CCC BV

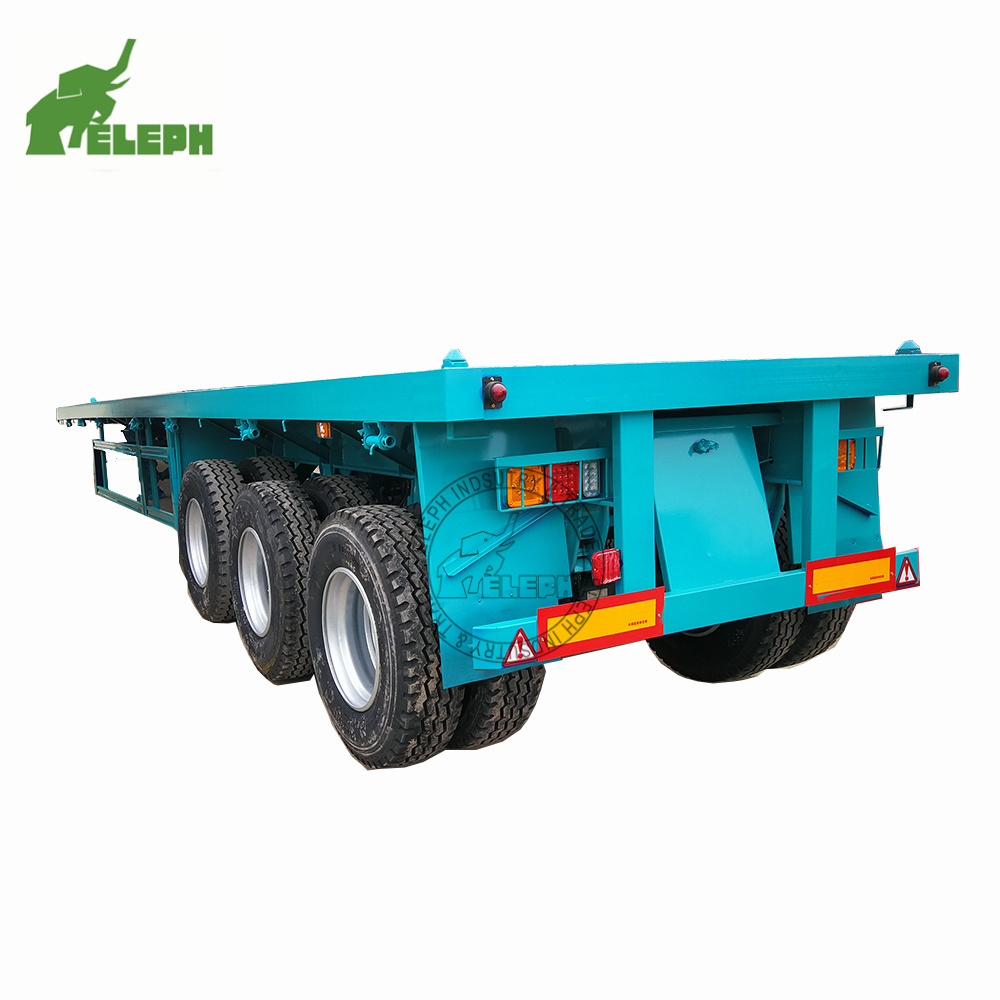

Container Transport Flatbed Truck Semi Trailer With Container Lock
|
Model |
Alp 9350Tjzg |
||||
|
Dimension(Optional) |
Axle N o. |
Rated Load (Kg) |
Tire No. |
Tire Size |
|
|
20ft |
2 |
40000 |
8 |
825R20 1000R20 1100R20 1200R20 12R22.5 (Other Size / Single Super Tire Contact With Supplier) |
|
|
40ft 45ft 48ft 53ft |
3 |
60000 |
12 |
||
|
40ft 45ft 48ft 53ft |
4 |
75000 |
16 |
||
|
Manufacture |
Qingdao Eleph Industry & Trade Co., Ltd |
||||
|
Wheel Base (Mm) |
1310 |
||||
|
Leaf-Spring Pcs |
10 |
||||
|
Axle |
13/16/18 T |
||||
|
Suspension |
Heavy Duty Mechanic Suspension With Leaf Springs |
||||
|
Main Beam Material |
Q 345 B Manganese Plates, Automatic Submerged Arc Welded |
||||
|
Brake System |
Dual Line Braking System With Automatic Braking System/Chambers |
||||
|
Brake Air Chamber |
Double Model |
||||
|
Kingpin |
2' Or 3.5' Interchangeable |
||||
|
Landing Gear |
28T Loading Capacity With 80T Static Lifting Capacity. |
||||
|
Platform |
4-6 Mm Diamond Steel Plate |
||||
|
Brake System |
Dual Lines Braking System With Automatic Air Chambers |
||||
|
Brake Air Chamber |
Four Double And Two Single Chamber |
||||
|
Electrical System |
24V, 7 core Socket, Lights According To European Standards. |
||||
|
Mainbeam Size |
Upper Plate |
14mm |
|||
|
Lower Plate |
16mm |
||||
|
Mid Web |
8 Mm |
||||
|
Height |
500-520mm |
||||
|
Tool Box |
1 Box Of Standard Tools |
||||
|
Spare Tire Carrier |
2 Sets |
||||
|
Color And Logo |
Depends On The Buyer’s Requirement. |
||||
|
Pin Height |
According To The Height Of The Tractor Saddle. |
||||
|
Painting |
Three Coats Painting; Any Color Will Be Available |
||||
|
Other Specifications |
The Frame Can Be Flat Plate Style And Skeleton Style.Twist Lock Settings Installed 12 Pics , 8 Pics , And 4 pcs To Satisfy The Containers With Different Sizes For Convince. |
||||
|
Application |
For 2x20ft Or 1x40ft Containers Transport |
||||
