1. To clean the thread of nut and body before putting into the collet or replacing the cutting tools,and then wipe the grease in order to avoid the thread damaged.
2. At first put the collet into the nut, then load in the tools and lock the body.
3.Runout:standard and 100mm 0.003mm 160mm 0.005mm
4.Cooling:AD;
AD/B can be made by request.
5.Balancing:G6.3/15000RPM;
Balancing G2.5 can be made by request.
6.Usage:for clamping tools with straight shank in collets DIN 6499.

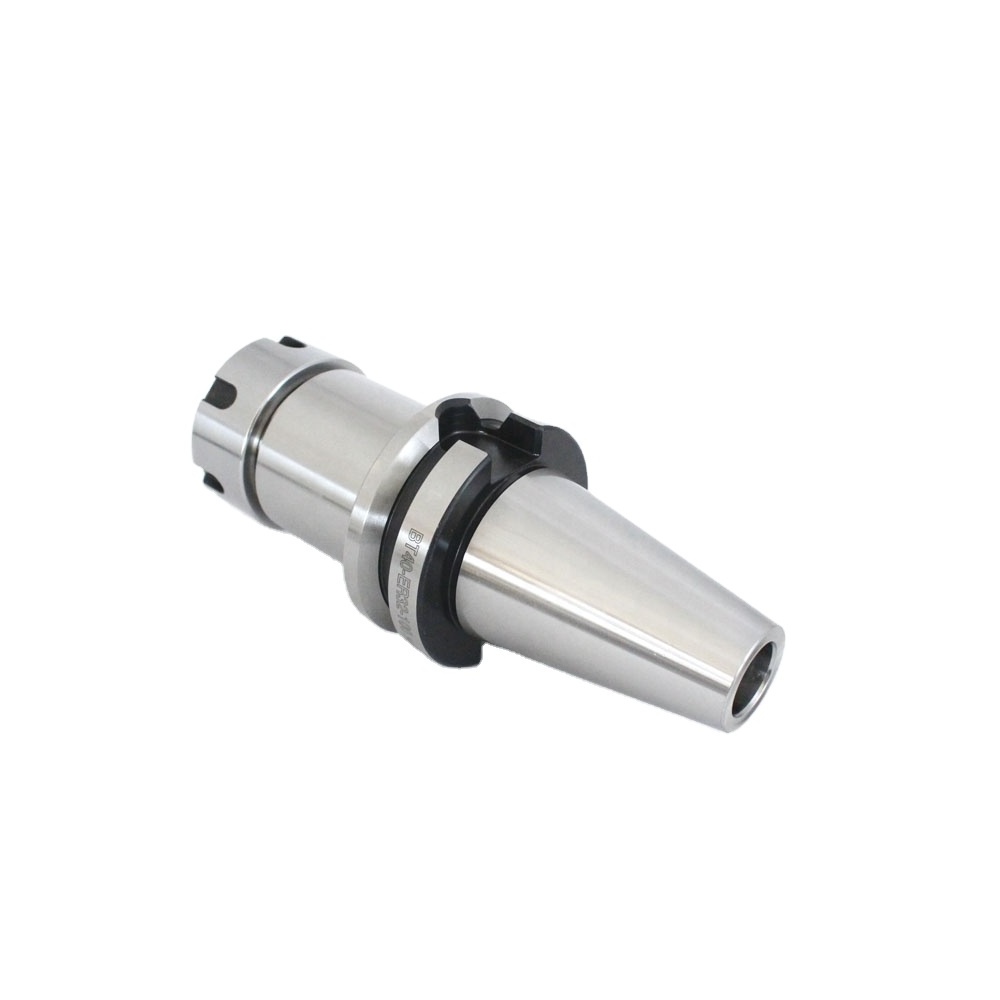

Name: BT40-ER32-100 ER Collet Chuck
Original: China/Shandong
Runout:standard and 100mm 0.003mm 160mm 0.005mm
Cooling:AD;AD/B can be made by request.
Balancing;G6.3/15000 RPM;
Balancing G2.5 can be made by request.
Usage:for clamping tools with straight shank in collets DIN6499.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
|
Packaging
|
|
|
|
Size
|
1000*1000*1000mm
|
|
|
Weight
|
700kg
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
|
Packaging
|
|
|
|
Size
|
150*150*350mm
|
|
|
Weight
|
1.6kg
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
Dezhou Panda Machine Tools Co., Ltd
Panda Tools is a manufacturer and distributor of Precision Tool Holders and CNC vices, located in Shandong Province of China. Dezhou is our city name, Panda is our brand, and the panda often served as China's treasure.
Panda Tools is backed by over 10 years of CNC machining experience. Since the company established, advanced machine equipments have been imported continuously,such as CNC milling machines & lathes, machining center, high precision grinders, precision dynamic balance equipment and tool testing instruments.
We also introduced advanced technology from Germany only in order to supply premium quality products for clients.
We believe in providing the highest quality products at the absolute best prices. Our high performance lineup of tools is designed to make tooling up easy. We do not sell any products that we cannot service and offer technical support.
Processes such as cnc machining, grinding, heat treating, assembly and final inspection are performanced locally. This allows us to maintain excellent quality control while reducing overhead.
