Quick Details
-
Model Number:
-
1/4"-2"
-
Product name:
-
Wire Braided Rubber Hydraulic Hose
-
Color:
-
Black
-
Length:
-
20m 40m 50m 100m
-
OEM:
-
Acceped
-
Working pressure:
-
4000psi
-
Cover:
-
Weather Resistant Synthetic Rubber
-
Standard:
-
SAE100/DIN EN853
-
Package:
-
Wooden Pallets
-
Material:
-
NBR
-
Temperature:
-
40C~+120C
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Hebei
-
Brand Name:
-
MINGJIN
-
Model Number:
-
1/4"-2"
-
Product name:
-
Wire Braided Rubber Hydraulic Hose
-
Color:
-
Black
-
Length:
-
20m 40m 50m 100m
-
OEM:
-
Acceped
-
Working pressure:
-
4000psi
-
Cover:
-
Weather Resistant Synthetic Rubber
-
Standard:
-
SAE100/DIN EN853
-
Package:
-
Wooden Pallets
-
Material:
-
NBR
-
Temperature:
-
40C~+120C
Product Description

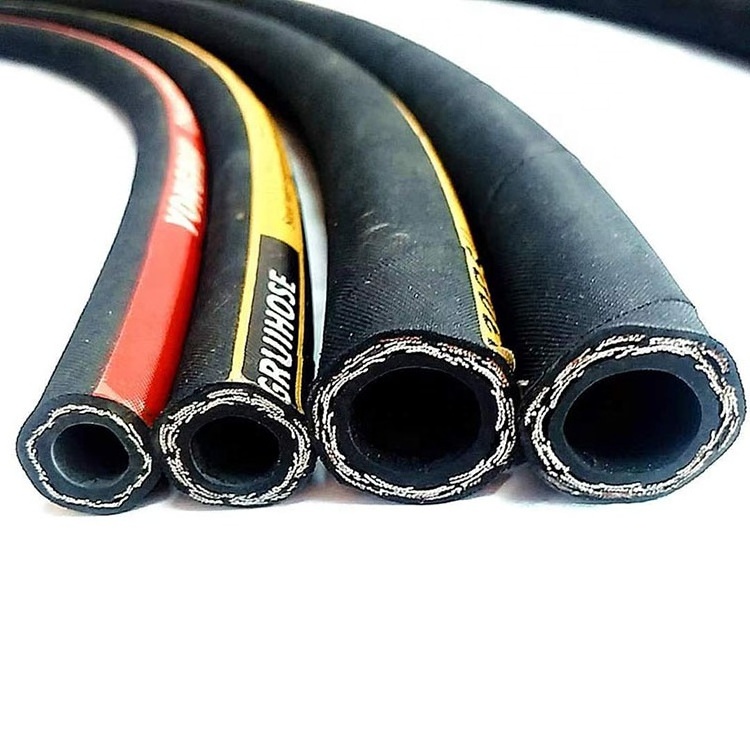

Hydraulic Hose
steel wire reinforced hydraulic hose is suitable for delivering petroleum-based hydraulic oils thanks to its oil resistant tube. Besides, it can convey the oils without producing excessive heat and leak. It is mainly used in some mobile equipment, such as farm tractor, dump truck and in-plant hydraulic equipment. It is composed of three parts: tube, reinforcement and cover. The tube is made from oil resistant synthetic rubber, so it is mainly used to transfer oils. The reinforcement is made from two layers of high tensile braided steel wires, making the hose have solid structure and resistant to high pressure.
Specification
|
INNER TUBE
|
oil resistant synthetic nitrile rubber
|
|
REINFORCEMENT
|
layer of steel wire braided
|
|
COVER
|
Black, oil resistant, synthetic rubber.
|
|
APPLICATION
|
Medium pressure hydraulic lines. Meets or exceeds the requirements of SAE 100 R2 Type AT and performance requirementsof EN 853
2SN.Mine hydraulic support, oilfield extraction machinery, mine/ road/construction machinery. |
|
SURFACE
|
SURFACE
|
|
TEMPERATURE RANGE
|
-40℃ (-104 ℉ ) to +100℃(+212 ℉)
|
|
SIZE(inch)
|
SAE100R1AT(W.P)
|
SAE100R2AT(W.P)
|
3 Layers (W.P)
|
EN856 4SH(W.P)
|
|
1/4
|
20.0Mpa
|
60.0Mpa
|
|
|
|
5/16
|
17.5Mpa
|
53.0Mpa
|
|
|
|
3/8
|
16.0Mpa
|
50.0Mpa
|
55.0Mpa
|
70.0Mpa
|
|
1/2
|
14.0Mpa
|
30.0Mpa
|
32.0Mpa
|
60.0Mpa
|
|
5/8
|
12.0Mpa
|
30.0Mpa
|
36.0Mpa
|
55.0Mpa
|
|
3/4
|
10.0Mpa
|
30.0Mpa
|
36.0Mpa
|
46.0Mpa
|
|
1
|
8.0Mpa
|
21.0Mpa
|
34.0Mpa
|
40.0Mpa
|
|
1-1/4
|
6.0Mpa
|
10.0Mpa
|
24.0Mpa
|
40.0Mpa
|
|
1-1/2
|
5.0Mpa
|
10.0Mpa
|
13.0Mpa
|
35.0Mpa
|
|
2
|
4.0Mpa
|
10.0Mpa
|
12.0Mpa
|
35.0Mpa
|
Packing & Delivery
1.Packaging:Woven bag or according to customer requirement;
2.Term of payment: 30% T/T in advance, 70% T/T before shipment;
3.Valid time: 30days ;
4.Delivery time: 7-20days
Conventional packaging for the product packaging transparent spiral knitting film packaging bags of various colors yellow blue spiral matter how you choose exactly what you require large diameter rubber hose ,drilling hose ,metal hose, in line with the size of our packaging design in accordance with the size of the length of the tube wooden box, saving cargo handling volume is also beneficial, both to ensure the quality of the goods, but also allow the goods in safe and accurate delivery time.
