Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayborn
-
Model Number:
-
RB-FLL-200WS
-
Color Temperature(CCT):
-
6500K
-
Beam Angle(°):
-
120/30/60/90/80X140
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
AC100-277V
-
Lamp Luminous Efficiency(lm/w):
-
130, 130lm/W light tower mast
-
Lamp Luminous Flux(lm):
-
28000, 26000lumens outdoor led fixture
-
Working Lifetime(Hour):
-
50000
-
LED Light Source:
-
SMD3030 high brightness led chip
-
Power Factor(PF):
-
0.95 stadium LED floodlighting
-
IP Grade:
-
IP656 waterproof dustproof led flood light
-
Beam Angle:
-
30/60/90/60*150°/120°
-
CCT:
-
3000K, 4000K,5000K, 6000K
-
CRI ( RA ):
-
>80 outdoor lightoutdoor light
-
Material:
-
Aluminum+Lens external flood lights
Quick Details
-
Warranty(Year):
-
5-Year
-
Lighting solutions service:
-
Lighting and circuitry design, DIALux evo layout, Project Installation
-
Control Mode:
-
Touch Control, Switch Control, Sensor control
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayborn
-
Model Number:
-
RB-FLL-200WS
-
Color Temperature(CCT):
-
6500K
-
Beam Angle(°):
-
120/30/60/90/80X140
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
AC100-277V
-
Lamp Luminous Efficiency(lm/w):
-
130, 130lm/W light tower mast
-
Lamp Luminous Flux(lm):
-
28000, 26000lumens outdoor led fixture
-
Working Lifetime(Hour):
-
50000
-
LED Light Source:
-
SMD3030 high brightness led chip
-
Power Factor(PF):
-
0.95 stadium LED floodlighting
-
IP Grade:
-
IP656 waterproof dustproof led flood light
-
Beam Angle:
-
30/60/90/60*150°/120°
-
CCT:
-
3000K, 4000K,5000K, 6000K
-
CRI ( RA ):
-
>80 outdoor lightoutdoor light
-
Material:
-
Aluminum+Lens external flood lights

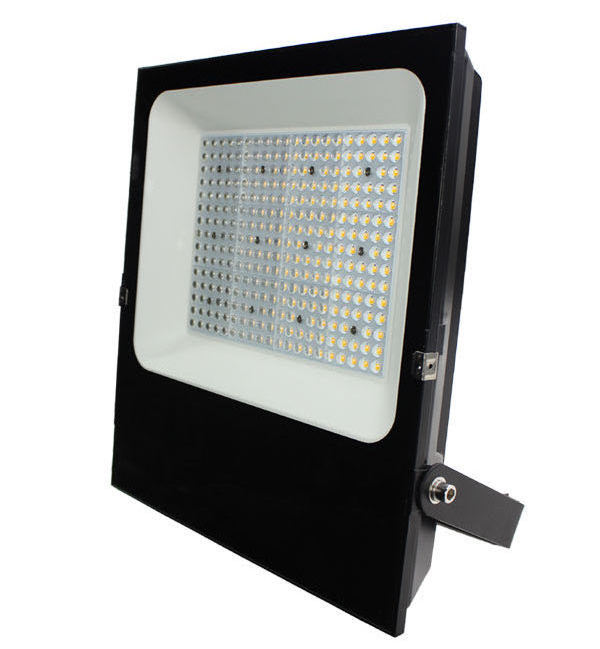

High efficiency 50W 80W 100W 150W 200Watt Tennis court /LANDSCAPELED Flood lighting reflector for Golf Course Stadium lighting,High Lumen Flood Lighting 50W 80W 100W 150W 200W Lumen LED Floodlight Tempered glass IP66
| Model | RB-FLL50WS | RB-FLL-80WS | RB-FLL-100WS | RB-FLL-150WS | RB-FLL-200WS |
| Power | 50W | 80W | 100W | 150W | 150W |
| Input Volt | 100-277V/277-480V/AC 50/60Hz | ||||
| Led Type: | Lumileds 3030SMD Chip | ||||
| Led(pcs) | 50pcs | 80pcs | 100pcs | 150pcs | 240pcs |
| Power Factor: | >0.96 | ||||
| Power Efficiency: | >92% | ||||
| Driver | Sosen/Meanwell/customer specified | ||||
| Ra | Ra>80 | ||||
| Lumen(Lm/W) | 130LM/W | ||||
| Control method | Ordinary, 0-10V, PMW, DALI,Photocell sensor | ||||
| Light body material | Die-casting aluminum lamp body + Tempered glass+PC Lens+ 304 stainless steel screws | ||||
| Beam angle | 30/60/90/120/140/140*70/70*150/50*140 | ||||
| CCT: | 3000K/4000K/5000K/5700K/6500K | ||||
| Protection level | IP66/IK08 | ||||
| Size: | 320*239*55mm | 364*264*60mm | 413*315*65mm | 349*440*65mm | 379*480*65mm |
| Lightning protection level | 10KV or 20KV, according to the actual needs of customers | ||||
| Work temp | –35℃~65℃ | ||||
| Work humidity | 10%~90% | ||||
| Warranty/Life | 5years/50,000hrs | ||||
| Installation method | Adjustable angle bracket installation | ||||
Features of Outdoor LED Flood light
LED Chip
:
SMD3030
LED Chips which is the famous Brand in chips field, high efficiency and long lifespan, high quality.
Power Supply:
LED flood light use Meanwell driver, IP66 and high quality, it improved lights performance. Power efficiency ≥92.
Color temperature:
LED floodlight provide a range of color temperatures from 3000, 4000 ,5000 and 6000 Kelvin helping to enhance a building's exterior.
Optics:
Optical assembly hermetically sealed providing IP65. LED optical systems the fixture maximize the utilization of light onto the target area, improving the uniformity of light.
Housing:
Die cast aluminum housing electrostatically sprayed with a polyester powder paint finish, following anti-corrosion priming, and oven cured at 180oC.
Cable:
silicon rubber cable for power input. Fasten with screw in the cable gland.
Warranty:
5
years. Do not attempt to take housing apart as this will ruin the seal and void all warranty.
Certification:
FCC CE SAA ETL RoHS approval.
Quality Control:
Rigorous product testing includes high-low temperature tests, waterproof tests, shockproof tests, burn-in testing, tensile test, salt spray test and more to ensure long-term performance.
Angle Adjustable:
Adjustable stainless steel mounting bracket allows you to direct light where you need it.
All our LED flood lights will be tested over 24hours before shipping,so that we can ensure the quality and light performance, such as current and function test, earth connect test, temperature test, light distribution test, vibration test, integrating sphere test, salt spray test, aging test, etc.. Being responsible for our products is being responsible for our customers.
Warranty and Warranty terms
We offer five-year guarantee on the condition of the light is used under normal environment and suitable maintenance and storage; any normal using within guarantee, we provide the repair, exchange(the components and parts)or replace the new item for your options. Exceeding the guarantee time, appropriate cost for the material and the labor should be charged.
