Quick Details
-
Brand Name:
-
Snow-Sea
-
Use:
-
outdoor
-
Warranty Time:
-
2 years
-
Network:
-
FTTH
-
Material:
-
Strengthen ABS
-
Port:
-
4 in 16 out
-
Lock Type:
-
Metal key, rotation type lock
-
Item:
-
indoor and outdoor
-
Installation:
-
pole-mounted and wall-mounted
-
Size:
-
295*185*110mm
-
Weight:
-
1kg
-
Fusion capacity:
-
Fusion splicing 16 Fibers, (1 trays, 8/16 core for each tray)
-
Optical splitter:
-
2pcs 1*8 or 1pcs 1*16
-
Fiber optic adapter:
-
24 pcs of SC simplex adapter
Quick Details
-
Type:
-
Fiber optic distribution box
-
Model Number:
-
ODB-16
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Snow-Sea
-
Use:
-
outdoor
-
Warranty Time:
-
2 years
-
Network:
-
FTTH
-
Material:
-
Strengthen ABS
-
Port:
-
4 in 16 out
-
Lock Type:
-
Metal key, rotation type lock
-
Item:
-
indoor and outdoor
-
Installation:
-
pole-mounted and wall-mounted
-
Size:
-
295*185*110mm
-
Weight:
-
1kg
-
Fusion capacity:
-
Fusion splicing 16 Fibers, (1 trays, 8/16 core for each tray)
-
Optical splitter:
-
2pcs 1*8 or 1pcs 1*16
-
Fiber optic adapter:
-
24 pcs of SC simplex adapter

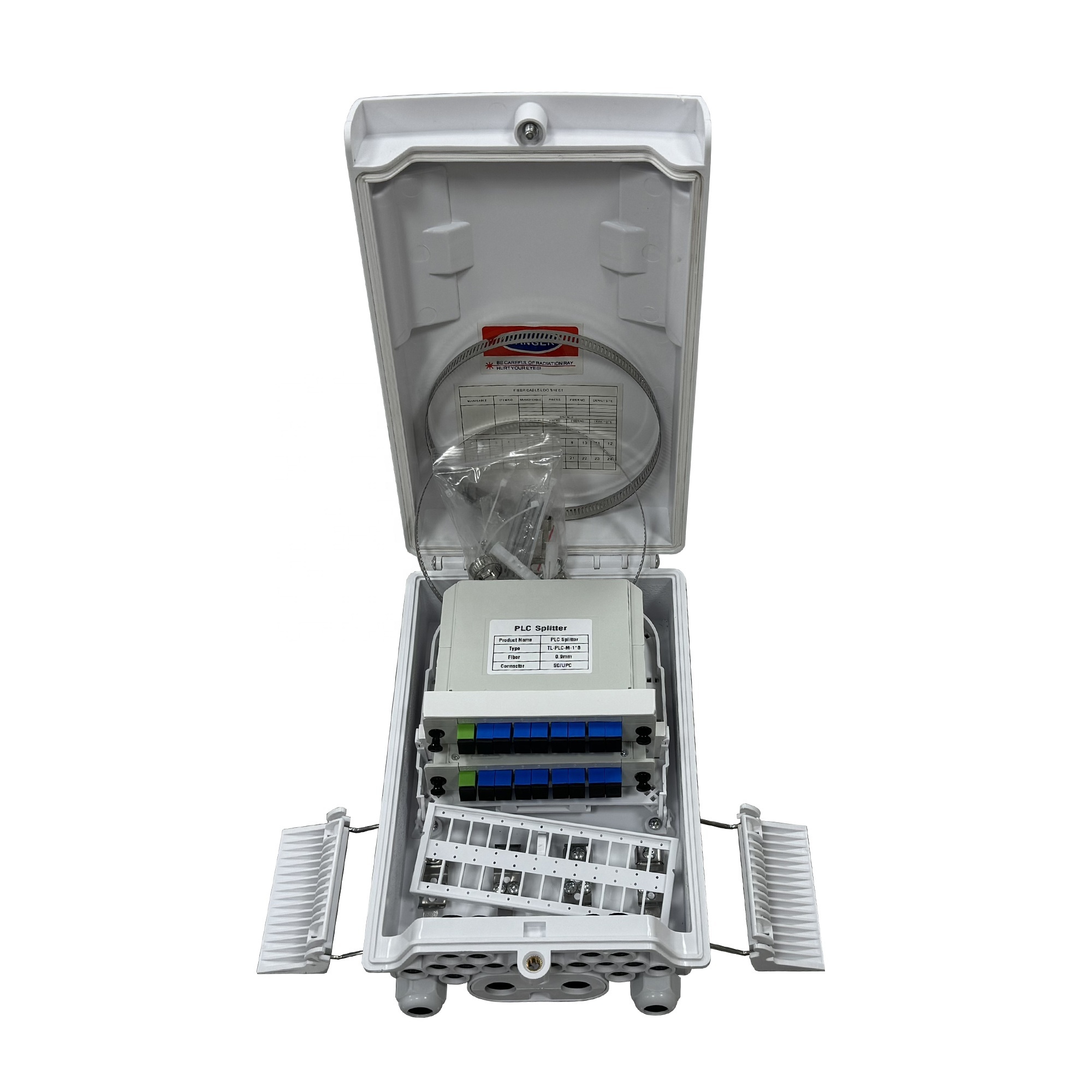

4 In 16 Out Waterproof CAJA NAP CTO 16 Core Optical Splitter Box / 24 Core Optical Distribution Box
Description
This box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication
network system. It integ r ates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
Features
Total enclosed structure.
Material: ABS , wet-proof , water-proof , dust proof , anti-aging, protection level up to IP65.
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.
Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapt e r. Easy for installation and maintenance.
Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
Box can be installed by the way of wall-mounted or poled mounted,suitable for both indoor and outdoor uses.
Specification
|
Material |
Strengthen ABS |
|
Size |
295 * 185 * 110m m |
|
Fusion capacity |
Fusion s plic ing 1 6 Fibers , ( 1 trays, 8/16 core for each tray) |
|
Optical splitter |
2pcs 1*8 or 1pcs 1*16 |
|
Fiber optic adapter |
2 4 pcs of SC simplex adapter |
|
Port |
4 inlet 16 outlet |
|
Weight |
1.0 kg |
|
Package |
10pcs/carton, 53*31*40cm |
Applications
Wall mounting and pole mounting install a tion
FTTH pre-installation and filed installation
5-10mm cable ports suitable for 2x3mm indoor FTTH drop cable and outdoor figure 8 FTTH self-supporting drop cable
Standard Accessories
Screw: 4mm*40mm , 4pcs
Expension bolt: M6 , 4pcs
Cable tie:3mm*10mm , 6pcs
Heat-shrink sleeve:1.0mm*3mm*60mm , 24pcs
Hose clamps : 4pcs
sheet iron : 2pcs
Key: 1pcs
