Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
lintianzhiyuan
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3500*1850*1600mm
-
Power (kW):
-
12
-
Weight (KG):
-
1350
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Control system:
-
Syntec 6MA control system +Wireless handwheel
-
Spindle:
-
9.0kw air cooling spindle
-
Application:
-
Engraving
-
Name:
-
Woodworking Cnc Router
-
Motor:
-
YASKAWA Servo motor
-
Working area:
-
1300x2500mm
-
Spindle power:
-
9.0KW
-
Transmission:
-
XY-axis:rack Z-axis: pneumatic
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 18000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
lintianzhiyuan
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
3500*1850*1600mm
-
Power (kW):
-
12
-
Weight (KG):
-
1350
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Control system:
-
Syntec 6MA control system +Wireless handwheel
-
Spindle:
-
9.0kw air cooling spindle
-
Application:
-
Engraving
-
Name:
-
Woodworking Cnc Router
-
Motor:
-
YASKAWA Servo motor
-
Working area:
-
1300x2500mm
-
Spindle power:
-
9.0KW
-
Transmission:
-
XY-axis:rack Z-axis: pneumatic
Standard configuration:
Syntec 6MA control system +Wireless handwheel & Import square guide rail 25mm & Xinyue Gear $Xinbao reducer&Yaskawa Servo Japan & DELTA invert & Y3+X2 Positioning cylinder & 9.0KW ChangSheng air cooling spindle & 7.5kw water cooling vacuum pump & 4.0kw Double-barrel Dust collector & 16 disc change tool & Automatically push
Performance feature:
Perfect function, vertical emptying, slotting, material cutting, one-step completion, completely replacing traditional sliding table saws and electronic cutting saws, to get rid of the dependence of the traditional opening mode on labor, and to open the material while using the CNC row drill group to be vertical In the meantime, through the integration with dedicated design software, it can truly realize intelligent production.
|
Model
|

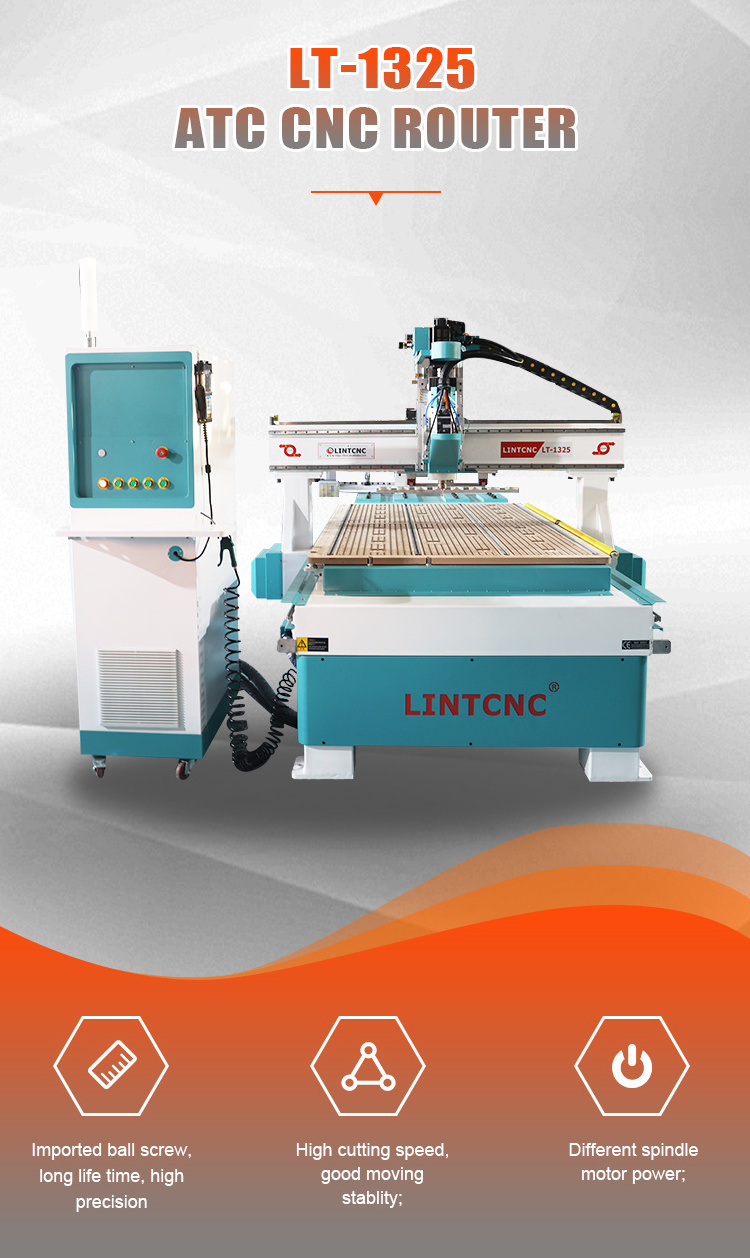

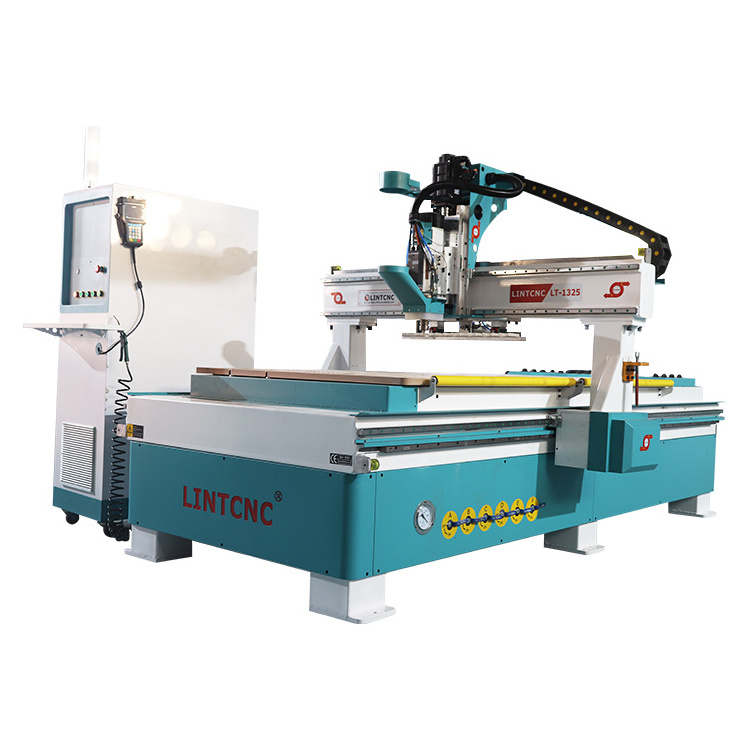

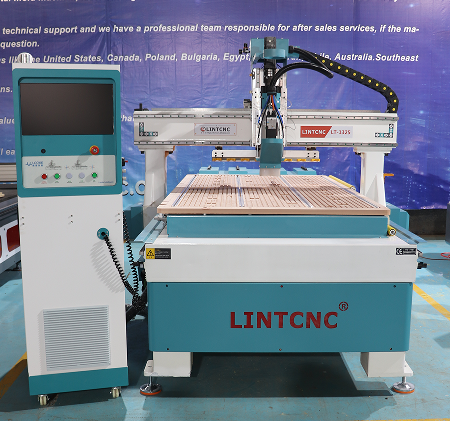

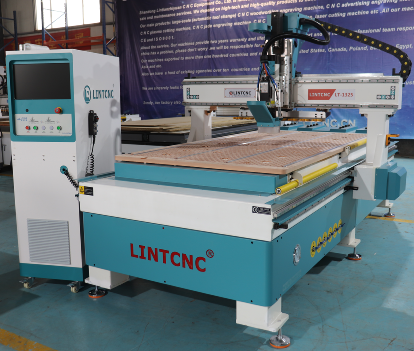

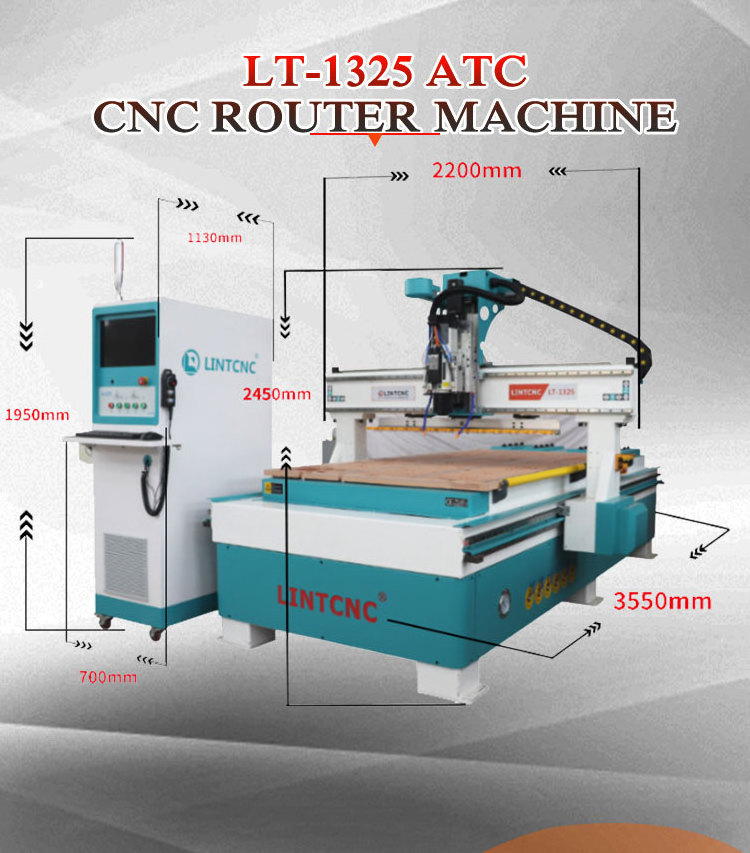

LT-1325 ATC wood CNC Router
|
|
Working area
|
1300(X)*2500(Y)*200(Z)mm
|
|
Machine structure
|
Thickened strong steel gantry with steel square tube frame 8mm thickness with 6 legs and the level base
|
|
Table surface
|
Yellow thicker vacuum table with 7.5kw vacuum pump
|
|
Spindle
|
9.0KW HQD ATC air cooling spindle
|
|
Spindle rotating speed
|
12200-24000 rpm
|
|
Collet size
|
ISO 30 tool holder
|
|
Tools magazine
|
Linear tool changer magazine on the gantry with 8 tools
|
|
Driving method
|
X,Y axis structure: Xinyue Helical rack and pinion drive, Taiwan Hiwin rail linear bearing 25mm(HGR)
Z axis structure: Taiwan TBI ballscrew 25mm, Taiwan Hiwin rail linear bearing 25mm(HGR) |
|
Motors and drivers
|
Leadshine 2206 AC Hybrid servo drive & hybrid servo motor
|
|
Control system
|
Syntec FC control system
|
|
Reducer
|
Japan SHIMPO reducer
|
|
Invert
|
Fuling invert
|
|
Tool sensor
|
Automatic tool sensor
|
|
Lubrication system
|
Automatic lubrication system
|
|
Dust collector
|
Dual bag dust collector to suck the processing dust
|
|
Max. idling speed
|
60m/min
|
|
Max. working speed
|
25m/min
|
|
Working Accuracy
|
<0.05/300mm
|
|
Instruction formate
|
G code *.u00 *.mmg *.plt
|
|
Working voltage
|
AC380V,3 phase,50-60Hz
|
|
Standard software
|
Artcam2010
|
|
Compatible software
|
Type3/Castmate/Coreldraw/AutoCAD and other CAM/CAD software
|
|
Control Cabinet
|
Big Independent control cabinet
|
Application:
Panel furniture, wardrobes, cabinets, office furniture, custom furniture. Insulating materials, PVC, acrylic cutting and other non-metallic materials processing.
1) This is the first time I use this kind of mach
ine, is
it easy operate?
There are English manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or Skype.
2)Can you recommend a CNC ROUTER MACHINE to me,thanks?
Yes, In order to give you a suitable router machine, please tell me the max working
area, materials for processing and the thickness for materials processing engraving
or cutting. Then perfect suitable CNC router will be recommended.
3) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.
we will give you 24hours service from phone and Skype.
4) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port
name. There will be best shipping freight and machine price send to you
5)Payment terms
a. 30% by T/T in advance,70% by T/T before shipping
b. L/C is acceptable ,if the amount is big,please issue the draft for our confirmation at first.
