Quick Details
-
Material:
-
SS304 ,SS316
-
Product name:
-
Medical Equipment Differential Pressure Transmitter
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SinoSensor
-
Model Number:
-
SN733
-
Material:
-
SS304 ,SS316
-
Product name:
-
Medical Equipment Differential Pressure Transmitter

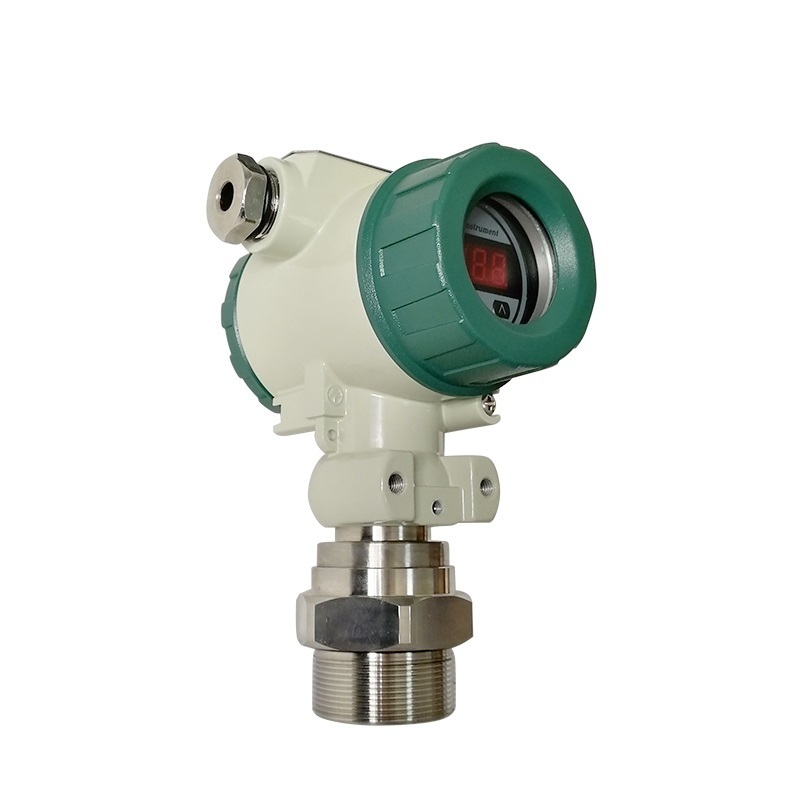

SN733 Sanitary type/Flush diaphragm
pressure transmitter
pressure transmitter
Sanitary type pressure transmitters are in compliance with 3A 3rd party sanitary criteria for pressure and level measurement in the food, pharmaceutical, cosmetic and beverage industries. It has rugged stainless steel construction, and a wide operating temperature range. The 316L SS flush diaphragm minimizes product buildup.
The transmitters are available with computer , control instrument and display instrument connections. Each transmitter undergoes extensive quality control testing and calibration.
The printed circuit boards use state-of the-art surface mount technology and are potted in silicone gel for protection against mechanical shock, vibration and moisture.
Each transmitter is manufactured to assure accuracy and long term stability when exposed to severe ambient temperature variations.
The transmitters are available with computer , control instrument and display instrument connections. Each transmitter undergoes extensive quality control testing and calibration.
The printed circuit boards use state-of the-art surface mount technology and are potted in silicone gel for protection against mechanical shock, vibration and moisture.
Each transmitter is manufactured to assure accuracy and long term stability when exposed to severe ambient temperature variations.
Product Paramenters
|
Pressure range
|
-100kPa~0~35MPa
|
Pressure way
|
Gauge pressure, Absolute pressure, Negative pressure
|
||
|
Power supply
|
9-36VDC
|
Accuracy rate
|
0.1%、0.25%FSO
|
||
|
Medium temperature
|
-40～125℃
|
Environment Temperature
|
-40～85℃
|
||
|
Shock resistance
|
25g(20...2000Hz)
|
Overload capacity
|
200%FS
|
||
|
Response frequently
|
≤500Hz
|
Stability
|
±0.1% FS/year
|
||
|
Temperature drift
|
±0.01%FS/℃
|
Protection grade
|
IP65
|
||
|
Thread connect
|
G3/4 ,G1/2 ,M20*1.5 / Type of health
|
|
|
||
|
Measuring medium
|
There are particles of liquid like as strong viscosity mud,concrete and crude oil etc.
|
|
|
||
|
Output signal
|
4～20mA、 0～5VDC、0～10VDC、1-5VDC、RS485
|
|
|
||
|
Material
|
Diaphragm 316s stainless steel, process connection: 304 stainless steel
|
|
|
||
High precision foil strain gauge.
No cavity measuring diaphragm chamber.
Wide operating temperature range and abrasion resistance.
Large DIN joints, Easy to installation and High reliability.
New circuit and installing structure, improving shock resistance and stability.
No cavity measuring diaphragm chamber.
Wide operating temperature range and abrasion resistance.
Large DIN joints, Easy to installation and High reliability.
New circuit and installing structure, improving shock resistance and stability.
