Quick Details
-
Brand Name:
-
OPTFOCUS
-
Use:
-
FTTH
-
Warranty Time:
-
1Years
-
Wavelength:
-
Tx 1310nm, Rx 1490nm
-
Optical output power:
-
-1~+4dBm
-
Power consumption:
-
≤2.5W
-
Ethernet:
-
1.25G
-
Distance:
-
20KM
-
PON port::
-
1
-
Dimension:
-
83*83*25mm
-
DC power supply:
-
+12V, external AC-DC powe
-
Weight:
-
0.25kg
Quick Details
-
Type:
-
ONU
-
Model Number:
-
OFSE611
-
Place of Origin:
-
China
-
Brand Name:
-
OPTFOCUS
-
Use:
-
FTTH
-
Warranty Time:
-
1Years
-
Wavelength:
-
Tx 1310nm, Rx 1490nm
-
Optical output power:
-
-1~+4dBm
-
Power consumption:
-
≤2.5W
-
Ethernet:
-
1.25G
-
Distance:
-
20KM
-
PON port::
-
1
-
Dimension:
-
83*83*25mm
-
DC power supply:
-
+12V, external AC-DC powe
-
Weight:
-
0.25kg

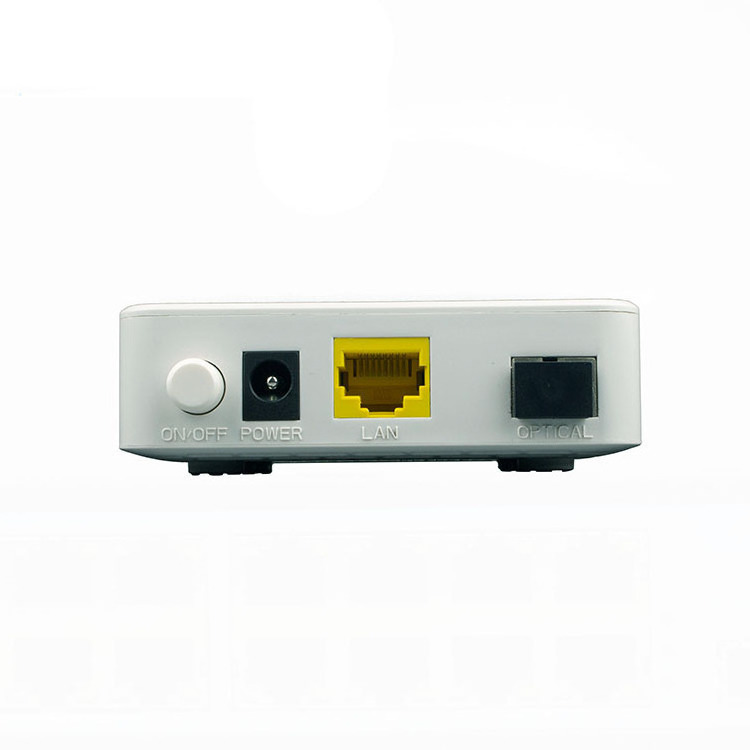

Mini ONU FTTH CATV Optical node built in WDM filter in Epon
OFSE611
1GE port EPON ONU for FTTH solution
Description:
OFSE611 is a mini EPON ONU terminal device , which applies to pure broadband access.It adopts mini-type compact structure design with high-integration and can provide 1 GE ( RJ45 ) interfaces. Supports the technology of layer 2 Ethernet switch and it’s easy to maintenance and manage.It can be applied to FTTH/FTTP access application for resident and business users.and it is fully compliant to technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment (V3.1).
Technical Specifications
|
Technical items |
Description |
|
Optical property |
|
|
Upstream PON interface |
1 EPON interface, SC single-mode/single-fibre, symmetric 1.25 Gbps |
|
Wavelength |
Tx 1310nm, Rx 1490nm |
|
Optical output power |
-1~+4dBm |
|
Receiving sensitivity |
<-26dBm |
|
Farthest distance |
20km between OLT and ONU |
|
Optical interface |
SC/UPC connector |
|
Downstream LAN interface |
1*10/100/1000Mbps auto adaptive Ethernet interfaces, Full Duplex/Half Duplex, RJ45 connectors |
|
Layer 2/3 switch |
Support IEEE802.1Q VLAN |
|
Support speed rate inhibition of broadcast packet at ONU |
|
|
IEEE 802.3X flow control |
|
|
Support 16 multicast addresses at each LAN port |
|
|
Security strategy |
Support AES-128,data encryption for both upstream and downstream Support dynamic update of key |
|
Management maintenance |
Centralized OLT management based on OAM |
|
WEB , CLI |
|
|
Upgrade software remotely |
|
|
Hardware information |
|
|
Indicators |
4 indicators, for status of power supply, PON port and 1 Giga-Ethernet port. |
|
DC power supply |
+ 12 V, external AC-DC power adaptor |
|
Chipset |
zte chipset |
|
Power switch |
1 |
|
Power consumption |
≤2.5W |
|
Operating condition |
Operating temp: -5~+55
℃
|
|
Storing condition |
Storing temp: -30~+60
℃
|
|
Dimension |
83mm*83mm*25mm(length*width*height) |
|
Net weight |
0.24Kg |
Feature:
l Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
l Support triple churning encryption request
l Support DBA reporting mechanism request
l Support OAM remote configuration maintenance function
l Support the remote upgrade and download
l Support status detection and fault report
l Support to configure the work mode at the user port.
l Support data encryption and decryption
l Support 802.1Q VLAN
l Support rich QinQ VLAN functions and IGMP Snooping
l Support traffic rule to modify the related priority.
l Support LED indication
l Support to restore the factory settings
l Support the remote reset and reboot
l Support dying gasp outage alarm
l Fully compatibility with OLT based = on = Broadcom/PMC/Cortina chipset.
