Quick Details
-
Screen Size:
-
5.5 inch
-
Weight:
-
<500g
-
Brand Name:
-
HCCTG
-
Model Number:
-
HCC-S60
-
Place of Origin:
-
Guangdong, China
-
Expand memory:
-
Micro SD(TF) Supports up to 128GB
-
WWAN:
-
2G/3G/4G/TDD
-
GPS:
-
Support GPS, Galileo, Glonass, Beidou
-
Optional:
-
Barcode scanning,NFC
-
Sealing:
-
IP54
-
Rolling test:
-
500*0.5m rolling for 6 sides
-
Environment humidity:
-
5%RH--95%RH(no condensation)
-
Dimensions:
-
177mm*72mm*(23.7-48.8)mm
-
Display:
-
5.5 inch IPS color display with resolution 720*1440
-
Standby time:
-
>350 hours
Quick Details
-
Operating System:
-
Android 8.1
-
Style:
-
Smartphone
-
Memory Capacity:
-
2GB+16GB Supports up to 3GB+32GB
-
Screen Size:
-
5.5 inch
-
Weight:
-
<500g
-
Brand Name:
-
HCCTG
-
Model Number:
-
HCC-S60
-
Place of Origin:
-
Guangdong, China
-
Expand memory:
-
Micro SD(TF) Supports up to 128GB
-
WWAN:
-
2G/3G/4G/TDD
-
GPS:
-
Support GPS, Galileo, Glonass, Beidou
-
Optional:
-
Barcode scanning,NFC
-
Sealing:
-
IP54
-
Rolling test:
-
500*0.5m rolling for 6 sides
-
Environment humidity:
-
5%RH--95%RH(no condensation)
-
Dimensions:
-
177mm*72mm*(23.7-48.8)mm
-
Display:
-
5.5 inch IPS color display with resolution 720*1440
-
Standby time:
-
>350 hours

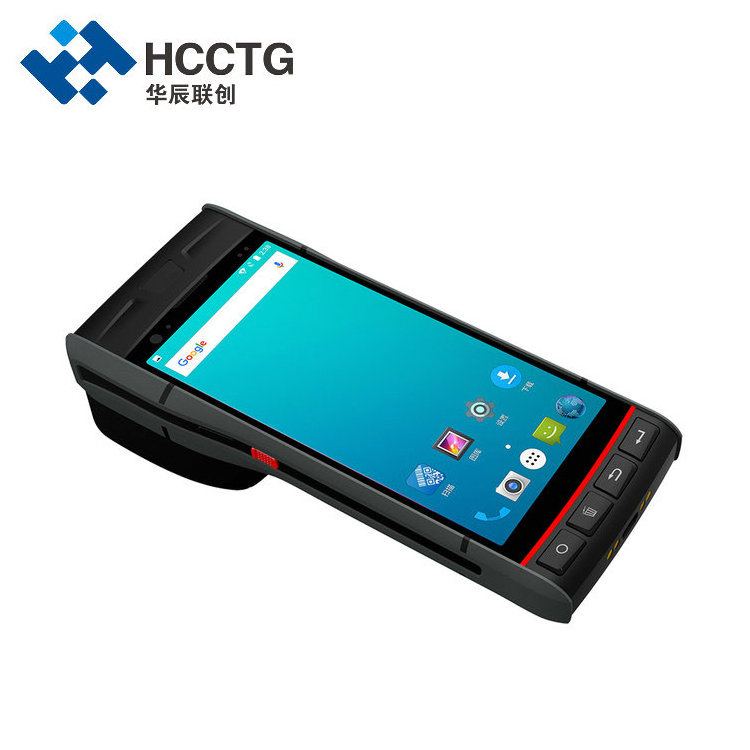

Products Description
Features
1.Android 8.1 system
2.Sticker one-piece printing
3.5.5-inch HD Durable large Display
Optional
Barcode module:
1D
(Honewell 4313)
2D
(Honewell 3603)
2D
(Honewell 6703)
NFC
:
HF :13.56MHZ, support ISO14443A protocol
Multiple Charging Dock for battery
Battery
(3.8V 5200mah)
|
WLAN
|
Dual-band 2.4GHz / 5GHz,
Supporting IEEE 802 a/b/g/n/ac protocol |
|
|
WWAN
|
2G: GSM (850/900/1800/1900MHz)
|
|
|
|
3G: WCDMA (850/900/1900/2100MHz)
|
|
|
|
4G: FDD:B1/B3/B4/B7/B8/B12/B20
|
|
|
|
TDD:B38/B39/B40/B41
|
|
|
BT
|
Support BT 2.1+EDR/3.0+HS/4.1+HS
Transmission distance 5-10 meters |
|
|
Barcode scanning (Optional)
|
|
|
|
2D
Imager scanner |
Newland EM3090
Honeywell N3603 Honeywell N6603 |
|
|
2D
Symbologies |
PDF417,Micro PDF417,GS1 Composite,Aztec Code,Data Matrix,QR Code,Micro QR Code,MaxiCode,Hanxin Code, etc.
|
|
|
Rear camera
|
8MP HD camera,Support auto focus,Flash, Anti-shake, Macro shooting
|
|
|
NFC (Optional)
|
|
|
|
Frequency
|
13.56MHz
|
|
|
Protocol
|
Support ISO14443A/B, 15693 agreement
|
|
|
Distance
|
2cm-5cm
|
|
|
TP
|
Corning Gorilla glass, supports multi-touch
Supported gloves and we thands |
|
|
Battery capacity
|
Rechargeable polymer battery (3.8V 4200mah) removable
|
|
|
|
Working time > 12 hours
|
|
|
|
Charging time ＜4H, using standard power adapter and data cable
|
|
|
Communication interface
|
Type-C USB x 1, OTG,POGO Pin x 1
|
|
|
Audio
|
Speaker (mono), Microphone, Earpiece
|
|
|
Keypad
|
Support touch screen soft keypad and physical keypad
|
|
|
Sensor
|
Gravity Sensor,Vibration motor
|
|
|
Input
|
English, Pinyin, Five strokes, Handwriting input, Support soft keypad
|
|
|
Language
|
Language packs in Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Malaysian, etc.
|
|
|
Operating temperature
|
-20℃ - 55℃
|
|
|
Storage temperature
|
-40℃ - 70℃
|
|
|
Environment humidity
|
5%RH--95%RH(no condensation)
|
|
|
Drop specification
|
6 sides Supports 1.5 meters drops and 30 times
to the concrete within the operating temperature |
|
|
Accessories
|
Adapter, Data cable, Protective film,
Instruction manual |
|
|
Printing speed
|
70mm/s
|
|
|
Print points
|
384 dots
|
|
|
Paper width
|
58mm
|
|
|
Paper diameter
|
35mm
|
|
|
Paper type
|
Support for Sticker / label Black mark printing
|
|
Hot Sale
OEM Company
Shenzhen HCC Technology Co., Ltd
, established in 2008 year, is a professional manufacturer engaged in the research, development, production, sale and service of POS & POS Peripheral Products. We are located in Shenzhen with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
Our factory have obtained ISO9001 certificates in 10 year, production department is over 3,000 SQM
. Our products sell well in all cities and provinces around China, and also exported to clients over 100 foreign countries and regions. We also welcome OEM and ODM orders.
Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
Our Factory
Certifications
Package & Payment
After Sale Service
FAQ
Q1. Do you have POS in stock? How long you can send out the goods?
A:Yes, we have. Normally, samples within 3 working days. Bulk qty about 7 days.
Q2. What is your warranty?
A:We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
Q3. Can you provide SDK?
A:Yes, SDK will be provided free to help you do the secondary development.
Q4. Do you offer other POS peripherals?
A:Yes, we offer One-stop POS products service, such as POS / Mobile / Kiosk / Panel Printer, Barcode Scanner, Smart /NFC /Magnetic Card Reader & Writer, POS Keyboard, Cash Drawer, Cash Register, Passport Reader, Check Scanner!
Q5.What's the shipment terms and delivery time of your compay?
A:Well, they depends on the quantity of your order. As you know, we need time to manufacture the machines. But mostly ,the shipment time is 3-5 working days after delivery.
Q6. Are you manufacturer?
A:Shenzhen HCC Technology Co., Ltd, established in 2008 year, is a professional manufacturer engaged in the research, development,production, sale and service of PC/POS/Mobile Payment product & Solution.
Q2. What is your warranty?
A:We offer 12-months warranty, lifelong maintenance service. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
Q3. Can you provide SDK?
A:Yes, SDK will be provided free to help you do the secondary development.
Q4. Do you offer other POS peripherals?
A:Yes, we offer One-stop POS products service, such as POS / Mobile / Kiosk / Panel Printer, Barcode Scanner, Smart /NFC /Magnetic Card Reader & Writer, POS Keyboard, Cash Drawer, Cash Register, Passport Reader, Check Scanner!
Q5.What's the shipment terms and delivery time of your compay?
A:Well, they depends on the quantity of your order. As you know, we need time to manufacture the machines. But mostly ,the shipment time is 3-5 working days after delivery.
Q6. Are you manufacturer?
A:Shenzhen HCC Technology Co., Ltd, established in 2008 year, is a professional manufacturer engaged in the research, development,production, sale and service of PC/POS/Mobile Payment product & Solution.
