Quick Details
-
Model Number:
-
pvc suction hose
-
Specification:
-
3/4"-16"
-
Length:
-
30m/50m/100m
-
Thickness:
-
1mm-4mm
-
Standard:
-
ISO
-
Color:
-
Blue, Orange, Yellow, Red, etc
-
Working Pressure:
-
2bar-8bar
-
Working Temperature:
-
-5℃ to +65℃
-
Features:
-
Lightweight, Flexible, easy storage
-
Transporting Medium:
-
Water, Air, Light Chemical Solution
-
Product Name:
-
pvc suction hose
-
ID:
-
20mm-408mm
Quick Details
-
Processing Service:
-
Moulding
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ET
-
Model Number:
-
pvc suction hose
-
Specification:
-
3/4"-16"
-
Length:
-
30m/50m/100m
-
Thickness:
-
1mm-4mm
-
Standard:
-
ISO
-
Color:
-
Blue, Orange, Yellow, Red, etc
-
Working Pressure:
-
2bar-8bar
-
Working Temperature:
-
-5℃ to +65℃
-
Features:
-
Lightweight, Flexible, easy storage
-
Transporting Medium:
-
Water, Air, Light Chemical Solution
-
Product Name:
-
pvc suction hose
-
ID:
-
20mm-408mm

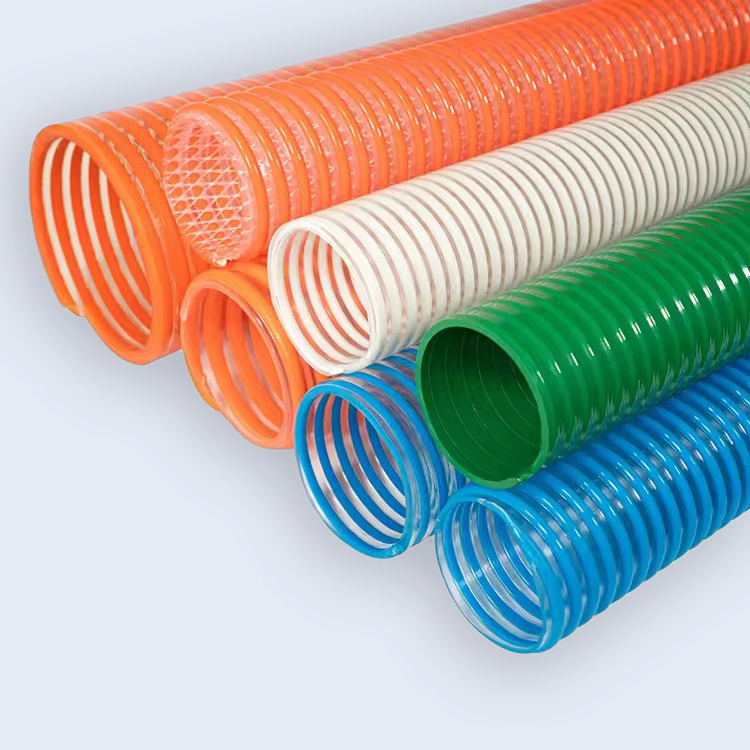

HEAVY DUTY PVC FLEXIBLE HELIX SUCTION HOSE PIPE 1 2 3 4 5 6 8 10 12 INCH FOR MINING VACUUM WATER OIL PUMP SPA DUCT GRIT SEWAGE
| ID | OD | WP | BP | W/A | COIL | |||
| in | mm | mm | bar | psi | bar | psi | g/m | m |
| 3/4 | 19 | 23 | 6 | 90 | 18 | 270 | 230 | 30 |
| 1 | 25 | 29 | 6 | 90 | 18 | 270 | 290 | 30 |
| 1-1/4 | 32 | 38 | 6 | 90 | 18 | 270 | 400 | 30 |
| 1-1/2 | 38 | 46 | 6 | 90 | 18 | 270 | 650 | 30 |
| 2 | 50 | 56 | 5 | 75 | 15 | 225 | 700 | 30 |
| 2-1/2 | 63 | 71 | 4 | 60 | 12 | 180 | 1170 | 30 |
| 3 | 75 | 83 | 3 | 45 | 9 | 135 | 1300 | 30 |
| 4 | 100 | 110 | 3 | 45 | 9 | 135 | 2300 | 30 |
| 5 | 125 | 137 | 3 | 45 | 9 | 135 | 3300 | 20 |
| 6 | 152 | 166 | 2 | 30 | 6 | 90 | 5500 | 10 |
| 8 | 200 | 214 | 2 | 30 | 6 | 90 | 6300 | 10 |
| 10 | 254 | 270 | 2 | 30 | 6 | 90 | 10000 | 10 |
| 12 | 305 | 329 | 2 | 30 | 6 | 90 | 18000 | 10 |
| 14 | 358 | 382 | 2 | 30 | 6 | 90 | 20000 | 10 |
| 16 | 408 | 432 | 2 | 30 | 6 | 90 | 23000 | 10 |
Q: What is your standard length per roll?
A: The standard length is 100m, we can also make any length as customers' requirement, like 10m/15m/20m/30m/50m.
Q: What is the minimum and maximum size you can produce?
A: The minimum size is 3/4"-19mm, the maximum size is 16"-406mm.
Q: What is the working pressure of your layflat hose?
A: The maximum working pressure of our layflat hose is 10bar.
Q: Is your layflat hose UV resistant?
A: Yes, our layflat hose is UV resistant.
Q: What is the service life of your layflat hose?
A: The service life is 2-3 years, if it is well preserved.
Q:What is the MOQ of your layflat hose?
A: We can accept orders of any quantity.
Q: Can you make customer logo on the hose and packaging?
A: Yes, we can make your logo on hose body and packaging and it is free.
Q: What quality guarantee you can supply?
A: We tested the quality each shift, once quality problem, we will replace our hose freely.
