Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Shantui
-
Model Number:
-
SD20-C6
-
Dimension(Long * Breadth * High):
-
6805*3460*3305mm
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Philippines, Peru, Indonesia, Algeria, Bangladesh, Uzbekistan
-
After-sales Service Provided:
-
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts
Quick Details
-
Machine Weight:
-
21 ton
-
Dozing Capacity:
-
Other
-
Marketing Type:
-
New Product 2021
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Shantui
-
Model Number:
-
SD20-C6
-
Dimension(Long * Breadth * High):
-
6805*3460*3305mm
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Philippines, Peru, Indonesia, Algeria, Bangladesh, Uzbekistan
-
After-sales Service Provided:
-
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts

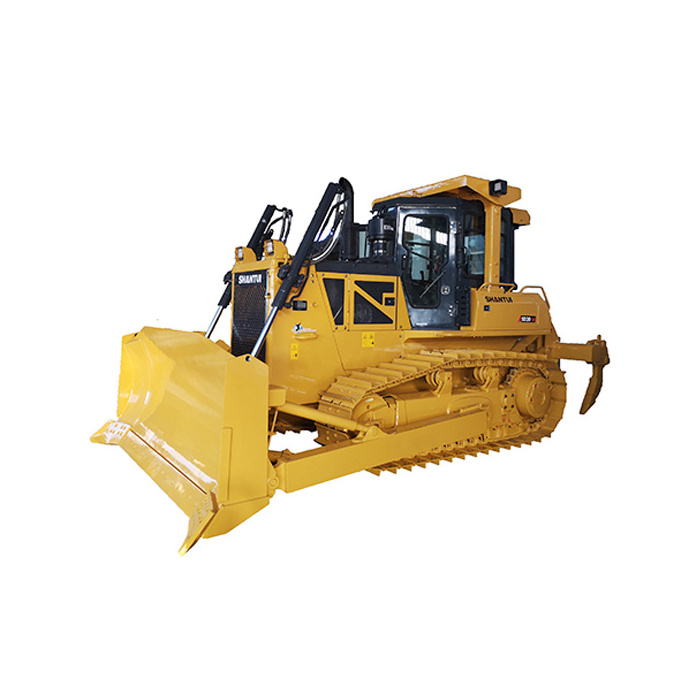

China top brand Shantui new bulldozer SD20-C6 200hp 220hp compact ripper dozer for sale
The WP12 electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring strong power, low fuel consumption, high intelligence and efficiency, high parts universality, and low maintenance cost.
The normally-closed brake design is applied so that the machine is braked automatically after the stop of engine to ensure high safety.
The four-point semi-suspension shock-absorbing installation reduces the machine vibration and improves the driving comfort.
The shock absorbers in crossing shaft rubber block structure are applied to effectively mitigate the vibration from the engine and protect the engine and drive system.
| Parameter name | Standard version |
| Performance parameters | |
| Operating weight (Kg) | 21000 (Including ripper) |
| Ground pressure (kPa) | 60.5 |
| Engine | |
| Engine model | WP12 |
| Rated power/rated speed (kW/rpm) | 162/1950 |
| Overall dimensions | |
| Overall dimensions of machine (mm) | 6805*3460*3305 |
| Driving performance | |
| Forward speed (km/h) | 0~3.9/6.8/10.6 |
| Reversing speed (km/h) | 0~5/8.6/13.4 |
| Chassis System | |
| Center distance of track (mm) | 1880 |
| Width of track shoes (mm) | 560 |
| Ground length(mm) | 2675 |
| Tank capacity | |
| Fuel tank (L) | 415 |
| Working device | |
| Blade type | Semi-U blade |
| Digging depth (mm) | 450 |
| Ripper type | Three-tooth ripper |
| Ripping depth (mm) | 595 |
